6060 High Precision Jewelry Accessories Mini CNC Metal Plate Fiber Laser Cutting Machine

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPower | 380V | Work Size | 600*600mm |
---|---|---|---|
Laser Type | Fiber Laser | Service | Offer Oversea Service |
Thickness | 0.1-8mm | ||
High Light | 380V Fiber Laser Cutting Machine,8mm Fiber Laser Cutting Machine,CNC Metal Plate Fiber Laser |

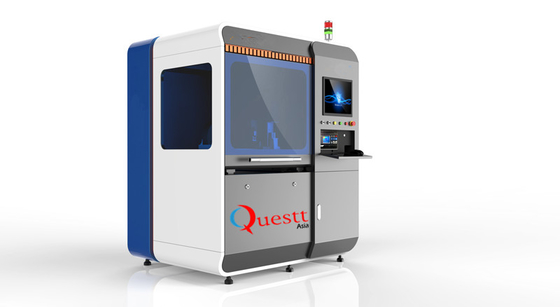

6060 High Precision Jewelry Accessories Mini CNC Metal Plate Fiber Laser Cutting Machine
Overview
QA-FL1000P Precise fiber laser cutting machine Adopt a 1000W fiber laser source and a mini cabinet to save shipping cost.
The control system is CNC. The laser cutter has equipped with a sealed working table to protect the workers when operate the machine.
The laser cutter machine can reach Europen safety standard. Best choice for high safety request customers.
Laser iber laser cutting machine is widely used in hardware, precise machinery, automobile components,
glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.
The iber laser cutting machine is suitable for stainless steel,carbon steel, Copper, Aluminum, Mo to cut and punch,
the cutting speed and incision are both high level, CN programe,can process any graphics and text.
Configuration
1. Laser generator Max,Raycus and IPG
2. Laser cutting torch Switzerland Raytools/Germany precitedc
3. Steel plate welding Cutting bed
4. X, Y gear rack Germany ROR or Taiwan YYC
5. Guide rail Taiwan HIWIN
6. AC servo motor & driver Japan Fuji//Panasonic /Yaskawa
7. Proportional valve Japan SMC
8. Reducer Japan SHIMPO
9. Gas circuit control Japan SMC
10. Water cooling machine Guangzhou S&A
11.CNC system and software CYPCUT
12.Voltage regulator
13.Ceramic ring,Nozzles and Lens(3 years use)
14.Screw air compressor 15.Vacuum cleaner device
Parameters
Laser output power | 1000W |
Laser wavelength | 1080 nm |
Laser type | Fiber laser souce |
Max cutting speed | 18m/min |
Max cutting thickness | 3-6mm according to material |
Output energy regulating | 10%~100% |
Input electric power for laser | ≤2KW |
Type of cooling | Water cooling |
Drive mode | Imported servo motor |
Transmission mode | Imported high precision Rack and Pinion |
Max-range for cutting | 600*600mm |
Power supply | 380V/50HZ |
Contour dimension | 4270mm×2420 mm×1750 mm |
Cutting parameter
Material / Laser Power | 500W | 750W | 1000W | 1500W | 2000W | 3000W | 4000W |
Carbon Steel | 6mm | 8mm | 10mm | 14mm | 16mm | 20mm | 25mm |
Stainless Steel | 3mm | 4mm | 5mm | 8mm | 10mm | 12mm | 15mm |
Aluminum | 1mm | 3mm | 4mm | 5mm | 6mm | 8mm | 10mm |
Brass | 1mm | 2mm | 4mm | 4mm | 6mm | 8mm | 8mm |
Copper | 1mm | 2mm | 3mm | 3mm | 4mm | 5mm | 6mm |
Galvanized Steel | 1mm | 2mm | 4mm | 5mm | 6mm | 8mm | 10mm |
Application
Widely used for metal sheet processing,advertising trademark, advertising character, high/low voltage electrical cabinet, mechanism parts,kitchenware,cars, mechanical,metal craftwork,saw blade, electronic parts, eye glasses,spring, circuit board, kettle,medical microelectronics, hardware, knives tool,measurement, instrument,etc
Support
Pre-sale service:
Free sample making
For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Sample shipping back cost should be paid by purchaser.
Progressing Solution Design
According to customer's product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
After-sale service:
Training to install:
Option A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting
Option B. You can come to Questt factory for training. Questt will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility. Training Time: 7 working days
Option C. Our engineer will do a onsite instruction training service at your site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before dispatch. It is better to arrange a translator for both of our engineer during the training period. Training Time: 7 days
