Auto Fiber Laser Cutter 6KW 3KW 3D 5 Axis Laser Cutting System
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xApplication | 3D Laser Cutting | Arm Length | 1100mm |
---|---|---|---|
Robot Axis | 6 | Laser Type | Fiber Laser |
Warranty | 2 Year And Permanent Service | Service | Oversea Service Offered |
High Light | Auto Fiber Laser Cutter 6KW,5Axis Laser Cutting System,3D Laser Cutting System |

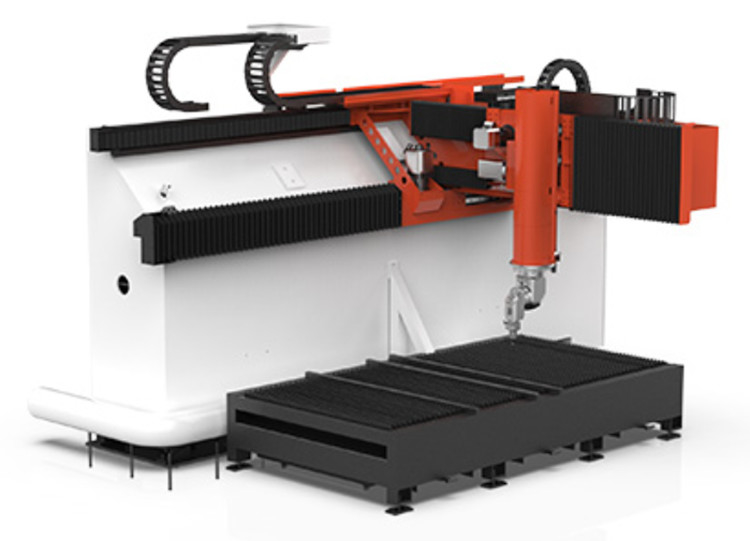

3D 5-Axis Laser Cutting System
Product Description
The 3D 5-Axis laser machine series is characterized by high precision, high speed, high efficiency, high stability, leading technology in the world, compact structure, simple operation and easy maintenance. The products are widely used in automotive, mould, household appliances, engineering machinery, ships, hardware, medical equipment, fitness equipment and other fields to meet the requirements of various metal workpiece surface cutting and trimming.
Compared with robot 3d cutting, it has fast speed and high precision;
Compared with the traditional CARBON dioxide laser cutting machine, the use cost is low, the operation is simple, the maintenance is convenient.
Technical Advantages
1.High Cutting Accuracy
2.Perfectly solving the problems of metal surface cutting and trimming.
3.High-speed rotary worktable;
4.High-performance 3D laser processing head;
5.Independently developed online modification software.
Auxiliary Functions
Welding; visual inspection; automatic loading and unloading etc.
Data sheet
MODE | QA-3015RC | ||
X Axis | 3000mm | ||
Y Axis | 1500mm | ||
Z Axis | 680mm | ||
EACH AXIS | A-Axis Travel ( Swing Axis ) | ±135° | |
C-Axis Travel ( Rotary Axis ) | 土nx360. | ||
U-Axis Travel ( Floating Axis ) | ±12.5mm | ||
WORKING TABLE | MOBILE/ROTARY/FIXED | ||
X/Y/Z Axis Positioning Accuracy | ±0.03mm | ||
X/Y/Z Axis Repeat Positioning Accuracy | ±0.02mm | ||
ACCURACY | A/C-Axis Positioning Accuracy | 0.015° | |
A/C-Axis Repeat Positioning Accuracy | 0.005° | ||
Maximum X / Y / Z Axis Positioning Speed | 60m/min | ||
A/C-Axis Maximum Positioning Speed | 720°/s | ||
SPEED | X / Y / Z Axis Maximum Acceleration | 0.5G | |
A/C Axis Max. Acceleration | 5400°/s2 | ||
Phase | 3 | ||
Power Supply Rated Voltage | 380V | ||
POWER SUPPLY | Frequency | 50Hz | |
Total Power Protection Plass | IP54 | ||
Total Weight | 52000kg | ||
WEIGHT AND SIZE | Machine footprint (whole machine) | ~6300mm(L) | x6000mm(W) x3900mm(H) |
3D laser head:
