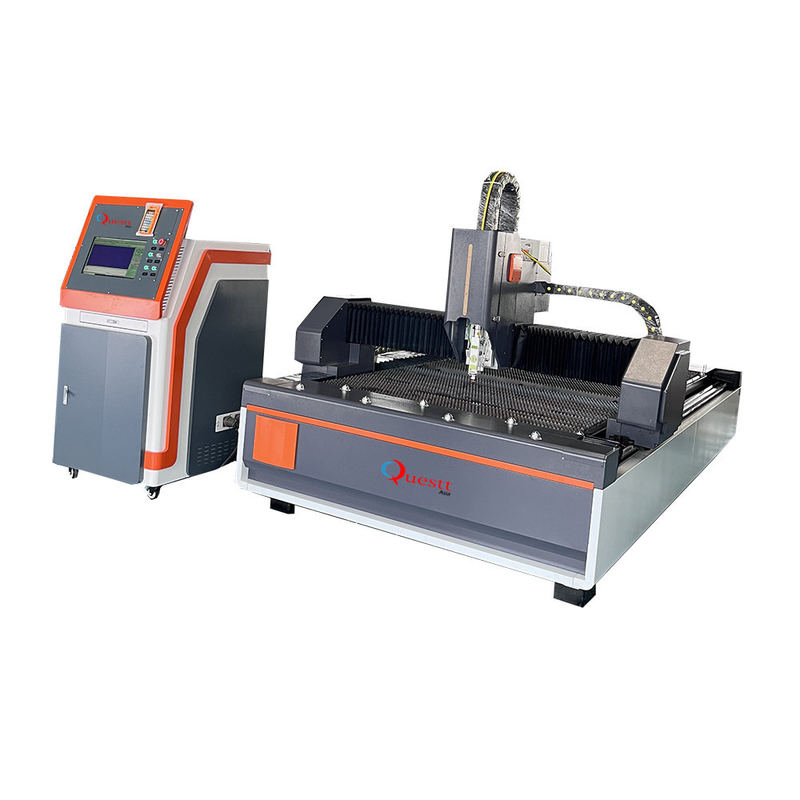

QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W

Product Details

Place of Origin: CHINA

Brand Name: QUESTT

Certification: CE ISO

Model Number: QA-LC1500

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 16000

Packaging Details: WOODEN CASE, CARTON

Delivery Time: 20 DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 30 SETS/MONTH

Get Best Price
Highlight:

Fiber Laser Cutting Machine 1500W

,

1070nm Fiber Laser Cutting Machine

Product Name:
Fiber Laser Cutting Machine
Keyword:
Metal Laser Cutting Machine
Function:
Cutting Metal Materials
Laser Power:
2000w/3000w
Type:
Fiber Lasr Cutting
Cutting Materials:
Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
Laser Source:
Raycus IPG
Model:
Rigid-FL2000-6020/Rigid-FL3000-6020
Working Area:
3000*1500mm
Color:
Blue-white
Product Name:
Fiber Laser Cutting Machine
Keyword:
Metal Laser Cutting Machine
Function:
Cutting Metal Materials
Laser Power:
2000w/3000w
Type:
Fiber Lasr Cutting
Cutting Materials:
Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
Laser Source:
Raycus IPG
Model:
Rigid-FL2000-6020/Rigid-FL3000-6020
Working Area:
3000*1500mm
Color:
Blue-white
QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W

QUESTT Laser 1500W 3000W QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine

Product Description

What is the Specifications and Fetures?

Overview

QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W 0

Brief Introduction



Rigid-FL1500 Fiber Laser cutting machine integrates high power fiber laser, optical, mechanical and electrical in one system which adopts latest laser technology, CNC control technology and high-performance laser power system to process all kinds of metal sheets cutting with high speed and efficiency.





The cutting range for the Laser Cutting Machine is 3000mm*1500mm. It has high speed and its products have smooth edge, small kerf width and little heat effect. This kind of machine is especially suitable for thin sheet metal cutting.

Technical Parameters



Laser output power 1500W
Laser wavelength 1070 nm
Laser medium Glass fiber with rate-earth element
Max cutting speed 80m/min
Max cutting thickness 3-20mm according to material
Output energy regulating 10%~100%
Input electric power for laser ≤2KW
Type of cooling Water cooling
Drive mode Imported servo motor
Transmission mode Imported high precision Rack and Pinion
Max-range for cutting 3000mm×1500 mm
Power supply 220V/50HZ
Contour dimension 4270mm×2420 mm×1750 mm

Configurations

Item Details Picture
Fiber Laser Source

1500W Fiber Laser Generator from China

Model: MFSC-1500W



QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W 1

Laser Cutting Head Auto focus Raytools from Swiserland Model: BM109 QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W 2
Servo Motor & Driver YASKAWA From Japan QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W 3
Reducer with Gear Shimpo from Japan Model VRT-090-7 F3 QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W 4





Rack Pinion

YYC from Taiwan(World Brand)



Model: M2(45 steel)

QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W 5QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W 6
Linear Guiderail

Hiwin From Taiwan(world Brand)



X axis model: HGH30CA2R4080ZACII Y axis model: HGH20CS2R2210ZACII

Control System CyperCut from Bochu China QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W 7
Oil Lubricated Automatic lubricated QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W 8
Gantry System Steel gantry QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W 9
Water chiller Hanli 1500w From China QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W 10
Pneumatic Components Relay/AC contactor SCHNEIDER QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W 11QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W 12
Proportional valve NNT QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W 13







Warranty

The warranty period is 12 months counting from the date on which the commodity arrives at the port of destination. Except the damage artificially ,we are responsible for offering the fittings free of charge during the warranty period. Customer needs to send damaged fittings to us by courier with customer’s charge before we send back the alternative fittings. After the warranty period, parts need to be repaired or changed, shall be paid
