Fiber Metal Laser Cutting Machine High Power 500W 1000W 3000Watt for SS

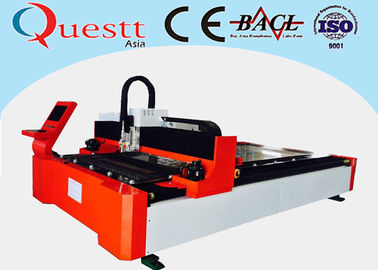

FL500-1325 Fiber metal laser cutting machine has high quality beam, high reliability, good optical mode, high top power, smooth incision, good perpendicularity, it is a special cutting machine, which is suitable for stainless steel, carbon steel, Copper, Aluminum, Mo to cut and punch, the cutting speed and incision are both high level, CYPCUT program can process any graphics and text, running stably, good processing quality, high efficiency, good precision, easy operation, convenient maintenance.
1. Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2. High cutting speed: Cutting speed is more than 12m/min
3. Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100, 000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: Fiber line transmission, no need reflect lens, save maintenance cost;
7. Easy operations: Fiber line transmission, no adjustment of optical path;
8. Super flexible optical effects: Compact design, compact and easy to flexible manufacturing requirements.
|Laser output power||500W/1000/2000/3000W|
|Laser wavelength||1070 nm|
|Laser medium||Glass fiber with rate-earth element|
|Max cutting speed||18m/min|
|Max cutting thickness||3-6mm according to material|
|Output energy regulating||10%~100%|
|Input electric power for laser||≤2KW|
|Type of cooling||Water cooling|
|Drive mode||Imported servo motor|
|Transmission mode||Imported high precision Rack and Pinion|
|Max-range for cutting||3000mm×1500 mm/ 2500x1300mm|
|Contour dimension||4270mm×2420 mm×1750 mm|
It is used widely on advertising signs production, sheet metal structures, production of high and low voltage electrical cabinet, textile machinery parts, kitchen, auto, machinery, metal technics, saw, electrical parts, glasses, spring, PCB, electrical kettle, medical microelectronics, hardware, tools, etc.
Suitable material: stainless steel, carbon steel, alloy steel, spring steel, copperplate, aluminum plate, gold, silver, titanium, etc metal plates and pipes.
