1064nm Wavelength Jewelry Laser Welding Machine Customized With Imported Lens

China 1064nm Wavelength Jewelry Laser Welding Machine Customized With Imported Lens supplier
1064nm Wavelength Jewelry Laser Welding Machine Customized With Imported Lens supplier 1064nm Wavelength Jewelry Laser Welding Machine Customized With Imported Lens supplier

Large Image :  1064nm Wavelength Jewelry Laser Welding Machine Customized With Imported Lens

Product Details:

Place of Origin: China
Brand Name: Questt
Certification: CE,ISO,BACL
Model Number: Robot200J

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 16 days
Payment Terms: T/T, Western Union,, L/C
Supply Ability: 1600 sets / year
Contact Now
Detailed Product Description
Energe: 80 J Service: Engineer Oversea Service
Wavelength: 1064nm Company Type: Factory For 22 Years
Customize: YES Gross Weigth: 300kgs

        Laser soldering machine for jewelry High performance used welding equipment





Machine Introduction



Robot200 soldering machine for jewelry can process welding and repairing for all the metal materials.



The Observing system is equipped with special-purpose microscope observing system with cross cursor.

It has high speed electron flitting device to protect the operator's eyes from being hurt.



There is no special block needed during the processing. The pieces to be processed can be hold by hand, and to be welded under the microscope conveniently.



It is especially suitable for jewelry repairing, mould epairing and gol f epairing. The laser source is YAG laser , with lamp and diamond Rod .





Features



adopting British imported ceramics condensation cavity



2 Imported lens



3 high temperature bearing



4 life of condensation cavity are 8-10 years



5 life of xenon light is more than 8000 thousands



6 small heat-affected zone




Specification data sheet

Jewelry laser welding machine.pdf



type Robot200
Output laser power 200W
Energe 80J
Wave length 1064nm
Laser power supply 4KW
Laser welding minimum melt pool 0.1mm
Laser pulse frequency ≤50Hz
Laser pules width ≤20ms
Port adjusting scope 0.1~3.0mm
Port size 0.2~3.0mm
Protective gas yes (N2)
Power demand 220V one-phase/50Hz/20A
Figure size of system Laser  welder 1160X640X1410mm
Water chiller 740X600X1090mm



1064nm Wavelength Jewelry Laser Welding Machine Customized With Imported Lens1064nm Wavelength Jewelry Laser Welding Machine Customized With Imported Lens



Applications



Jewelry, golf head, medical equipment, instrumentation, electronic, mechanical processing, auto



Jewelry welding Sample

1064nm Wavelength Jewelry Laser Welding Machine Customized With Imported Lens

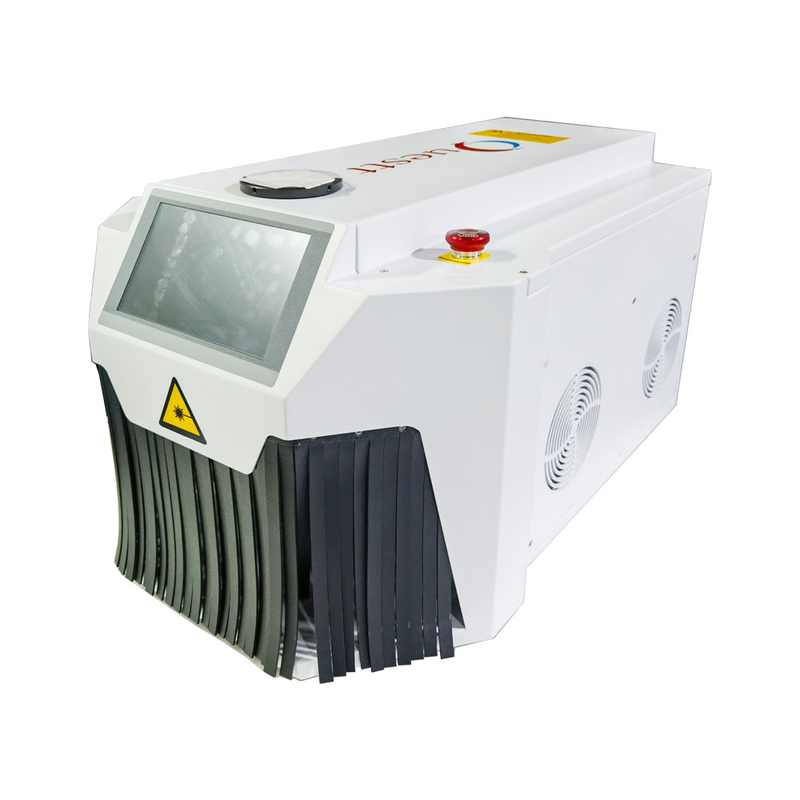

Machine outlook

1064nm Wavelength Jewelry Laser Welding Machine Customized With Imported Lens



1064nm Wavelength Jewelry Laser Welding Machine Customized With Imported Lens
