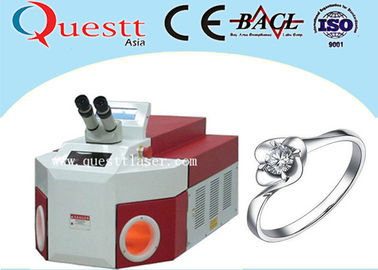

Humanized Design Mini Jewelry Laser Welding Machine With Imported Lens Reflection Mirror

  • Humanized Design Mini Jewelry Laser Welding Machine With Imported Lens Reflection Mirror
  • Humanized Design Mini Jewelry Laser Welding Machine With Imported Lens Reflection Mirror
  • Humanized Design Mini Jewelry Laser Welding Machine With Imported Lens Reflection Mirror
  • Humanized Design Mini Jewelry Laser Welding Machine With Imported Lens Reflection Mirror
Place of Origin China,Wuhan City
Brand Name Questt
Certification CE ISO
Model Number Robot150
Minimum Order Quantity 1set
Price Negotiable
Packaging Details Plywood boxes
Delivery Time 8 days
Payment Terms T/T, Western Union,, L/C
Supply Ability 3800 sets / year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Service Engineer Oversea Service Lasre Power 150W
Laser Type NG:YAG Pulse Width 0.1 - 1 Mm
Power Supply 220V Single Phase Microscope 10X
High Light

YAG Laser Welding Machine

,

Portable Laser Welding Machine
Leave a Message
Product Description

        Mini jewelry gold laser welding machine 150W Imported lens reflection mirror





Introductions



Robot150 gold laser welding machine is a portable mini laser welder,the laser source is YAG laser , with X lamp and diamond Rod in the laser device. The laser output power can reach 150W or even more.

There is no special block needed during the processing. The pieces to be processed can be hold by hand, and to be welded under the microscope conveniently.

The processing type is heat transmission, processing work pieces surface by laser radiation , heat transmit from surface to bowel, by controlling laser width, energy, top power and repitition frequency to melt workpieces , form a special melting pool.





Features



1 high temperature bearing

2 Imported lens and reflection mirror

3 small heat-affected zone

4 high efficiency, small heat-affected zone

5 Humanized design, non-pollution

6 high welding quality, perfect laser beam


Specification data



type Robot150
Output laser power 150W
Energe 70J
Wave length 1064nm
Laser power supply 3.5KW
Laser welding minimum melt pool 0.1mm
Laser pulse frequency ≤50Hz
Laser pules width ≤20ms
Port adjusting scope 0.1～3.0mm
Port size 0.2～3.0mm
Protective gas yes (N2)
Power demand 220V one-phase/50Hz/20A







Applications



Jewelry, golf head, medical equipment, instrumentation, electronic, mechanical processing, auto industries

This mini type laser welder is especially design for jewelry.



Welding Sample

Humanized Design Mini Jewelry Laser Welding Machine With Imported Lens Reflection Mirror 0



FAQ



1 What is the payment term?

T/T , L/C, Westen Union

2 What is the after-sale service?

Engineer available to serve overseas.

3 What is the warranty ?

1 year , whole life service.

4 Are you factory or trading company?

We are factory, we produce the machines by ourself.





Desktop laser welder details



Humanized Design Mini Jewelry Laser Welding Machine With Imported Lens Reflection Mirror 1



Humanized Design Mini Jewelry Laser Welding Machine With Imported Lens Reflection Mirror 2
