1.064um Yag Laser Welding Machine With Imported X Lamp Diamond Rod Microscope

1.064um Yag Laser Welding Machine With Imported X Lamp Diamond Rod Microscope

  • High Light

    Portable Laser Welding Machine

    ,

    Gold Laser Welding Machine

  • Laser Power
    300W
  • Wavelength
    1.064um
  • GW
    300kgs
  • Service
    Engineer Oversea Service
  • Water Chiller
    Free
  • Company
    Factory For 22 Years
  • Place of Origin
    China
  • Brand Name
    Questt
  • Certification
    CE,ISO,BACL
  • Model Number
    Robot300J
  • Minimum Order Quantity
    1set
  • Price
    Negotiable
  • Packaging Details
    Wooden case
  • Delivery Time
    7 days
  • Payment Terms
    T/T, Western Union,, L/C
  • Supply Ability
    2700 sets / year

1.064um Yag Laser Welding Machine With Imported X Lamp Diamond Rod Microscope

         300W yag laser welding machine Imported X lamp Diamond Rod Microscope





Descriptions


Questt Robot300J yag laser welding machine is specially developed for laser welding of jewelry used in perforating and spot welding of gold and silver jewelry.

The yag laser welding machine process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool.


The observing system is equipped with 10X microscope observing system with cross. It has high speed electron flitting device to protect the operator's eyes from being hurt.

You can also see the laser welding point very clearly on the product by microscope.





Features



energy,pulse width,frequency,port size can be adjusted in a large scope, to realize some welding results.

2 adopting British imported ceramics condensation cavity,

3 high corrosion bearing, high temperature bearing, photoelectric conversion efficiency

4 life of condensation cavity are 8-10 years

5 life of xenon light is more than 8000 thousands




Specification

Yag Laser Welding Machine.pdf



type Robot300J
Output laser power 300W
Wave length 1064nm
Laser power supply 4KW
Laser welding minimum melt pool 0.1mm
Laser pulse frequency ≤50Hz
Laser pules width ≤20ms
Port adjusting scope 0.1~3.0mm
Port size 0.2~3.0mm
Protective gas One way
Power demand 220V one-phase/50Hz/20A
Figure size of system Laser  welder 1160X640X1410mm
Water chiller 740X600X1090mm







Applications



Widely used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc

This YAG laser welding machine is especially suitable in the jewelry, mould and golf industry.





Jewelry Soldering Samples:



1.064um Yag Laser Welding Machine With Imported X Lamp Diamond Rod Microscope 0

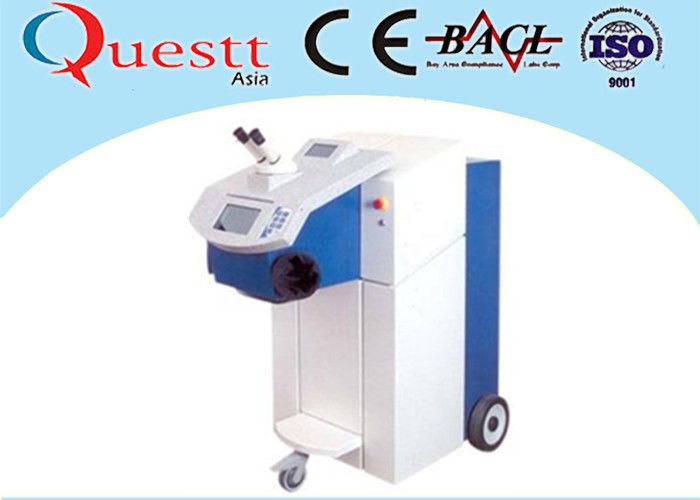

Machine outlook







1.064um Yag Laser Welding Machine With Imported X Lamp Diamond Rod Microscope 1
