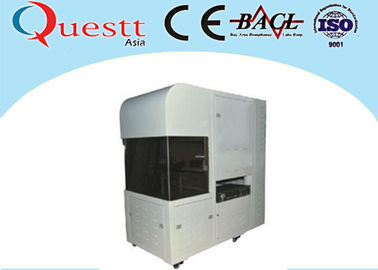

Air - Cooled UV Laser Marking Machine 8W With High Ratio Photo Translating

Ultraviolet Laser Marking Machine 3W 8watt 15Watts precision UV Laser Exposure System



Description



QA-UV8 Ultraviolet Laser Marking Machine adopting 8W UV laser which has such characters: high ratio photo translating, laser beam with high quality, compactness, low running cost, easy to install and operate, good stabilization, free of maintenance and so on.



It can be widely used in PCB, BGA, FCB, IC, computer fittings, industry bearing, timekeeper, electronic device, communicate device, space and aviation device, automobile parts, home appliances, hardware, electrical wire and cable, clothing, food packing, jewelry, cigarette etc. to cut and mark the characters and graphics.



24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production.



Features



1 high ratio photo translating
2 high quality laser beam



3 high density energy of spot beam
4 No mask needed to accurately expose 3D graphics

5 Exposing graphics can be promptly and freely amended
6 excellent stability

7 maintenance free
8 completely sealed optical system





Specification



Model No.	QA-UV8 UV laser marking machine
Laser type	YV04 UV laser
The average output power	8W
Laser wavelength	355nm
Beam Quality(M2)	1
Frequency	20KHz-200KHz
Repetitive accuracy	0.005mm
Min Linear Width	0.01mm
Marking Depth	0.01-0.2mm
Max Speed	7000mm/s
Galvanometer	Yes
Lens	F-Theta Lens
Standard marking	110*110mm
The optional scope of marking	70×70mm / 175×175mm / 220x220mm
Consumed power	<500W
File format	PLT, DXF, AI, DST, BMP, JPG, TIF
Power Supply	220V/50Hz/15A (110-120V Optional)
Cooling system	Air cooling
Grosss weight	120kgs



Application



It applies for FPC, digital products, as well as printing.



solar silicon cell groove, cutting, marking, thin-film etching, scribing, microporous process, PCB cutting and drilling.



Sample







UV laser device







FAQ



1 Q: What is the warranty of the machine?

A: The warranty is 12 month, but whole life service.



2 Q: What is the payment term?

A: T/T, L/C, Westen Union, PayPal etc.



3 Q: What is the service

A: Engineer offer oversea service .



4 Q: How about the quality?

A: High quality best price.



4 Q: How about the quality?

A: Germany high technoloy.



5 Q: Can we customize as special needs?

A: Yes
