7000mm / S Laser Beam UV Laser Marking Machine 0.01 - 0.2mm Depth For Digital Product

China 7000mm / S Laser Beam UV Laser Marking Machine 0.01 - 0.2mm Depth For Digital Product supplier
7000mm / S Laser Beam UV Laser Marking Machine 0.01 - 0.2mm Depth For Digital Product supplier 7000mm / S Laser Beam UV Laser Marking Machine 0.01 - 0.2mm Depth For Digital Product supplier

Large Image :  7000mm / S Laser Beam UV Laser Marking Machine 0.01 - 0.2mm Depth For Digital Product

Product Details:

Place of Origin: China
Brand Name: Questt
Certification: CE ISO
Model Number: QA-UVR4

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export Wooden cases
Delivery Time: 10 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1111 Sets/Year
Contact Now
Detailed Product Description
Laser Power: 8W Laser Wavelength: 366nm
Service: Engineer Overseas Service Power Supply: 110V, 220V 50 / 60HZ
Marking Area: 175x175, 110x110mm, 220x220mm Laser Beam: Perfect

UV Laser Marking System for digital product precision electrical spare parts 8W



Introductions



QA-UVR4 Uv Laser Marking System has equiped with a four station rotate working table.

The working table can rotate automaticly after finish one marking, then continue one by one next. We can design 2 4 or 8 stations for the working table.



The UV laser device adopt diode pump laser as the pump source, end-pump fiber coupling, high power output, long use life time, easy to maintenance, internal heatsink air cooling, ensure stable laser output, can be long time continuous working.



An improved cavity design and compact design makes its beam quality excellent, lifetime longer,and running more reliable. It can meet the most of demands in the industrial laser processing under the rigorous conditions. Its excellent beam quality and long term stability makes it suitable especially for FPC cutting.


Feature



1 high ratio photo translate system
2 very high quality laser beam



3 Rotate working talbe as your design
4 No mask needed to accurately expose 3D graphics


5 Exposing graphics can be promptly and freely amended
6 Long lifetime working




Specification



Model No. QA-UVR4 UV Laser Marking System
Laser type UV laser
The average output power 8W
Laser wavelength 355nm
Beam Quality(M2) 1
Frequency 20KHz-200KHz
Repetitive accuracy 0.005mm
Min Linear Width 0.01mm
Marking Depth 0.01-0.2mm
Max Speed 7000mm/s
Galvanometer Yes
Lens F-Theta Lens
Standard marking 175*175mm
The optional scope of marking 70×70mm / 110x110mm / 175×175mm / 220x220mm
Consumed power <500W
File format PLT, DXF, AI, DST, BMP, JPG, TIF
Power Supply 220V/50Hz/15A (110-120V Optional)
Cooling system Air cooling
Grosss weight 150kgs



Application



It can be widely used in PCB, BGA, FCB, IC, computer fittings, industry bearing, timekeeper, electronic device, communicate device, space and aviation device, automobile parts, home appliances, hardware, electrical wire and cable, clothing, food packing, jewelry, cigarette etc.



All the material which fiber laser can not do.





UV laser device



7000mm / S Laser Beam UV Laser Marking Machine 0.01 - 0.2mm Depth For Digital Product





FAQ



1 Q: What is the warranty of the machine?

A: The warranty is 12 month, but whole life service.



2 Q: How about the quality?

A: High quality best price.



3 Q: What is the service

A: Engineer offer oversea service .

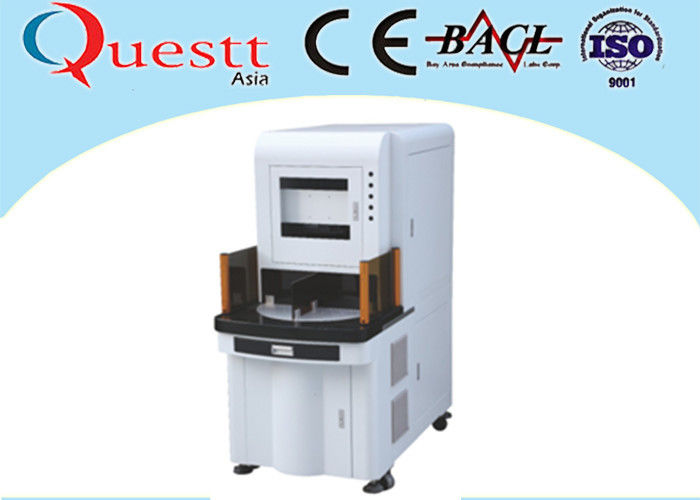

Machine outlook

7000mm / S Laser Beam UV Laser Marking Machine 0.01 - 0.2mm Depth For Digital Product
