15 Watt Cnc Metal Engraving Machine For Food Packaging

Place of Origin China
Brand Name Questt
Certification CE ISO
Model Number QA-UV15
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Export Wood cases
Delivery Time 15 days
Payment Terms T/T, Western Union, L/C
Supply Ability 1200 Sets/Year

Contact me for free samples and coupons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Wavelength 366nm Service Overseas Service Available
Power Supply 110V, 220V 50 / 60HZ Marking Area 175x175, 110x110mm, 220x220mm
Laser Power 15W Dimension 1500x1150x1870mm
High Light

laser marking machine for plastic

,

industrial marking machine

,

15 Watt Cnc Metal Engraving Machine

Leave a Message
Product Description

UV cnc engraving machine for electronic communicate space and aviation device 15W



Descriptions



QA-UV15 cnc engraving machine is a sealed type UV alser maring and engraving machine. The UV laser marker is controlled by computer, it has equiped with a rotate working table, cnc control for marking.

The working table can rotate automaticly after finish one marking, then continue one by one next. We can design 2 4 or 8 stations for the working table.

An improved cavity design and compact design makes its beam quality excellent, lifetime longer,and running more reliable. It can meet the most of demands in the industrial laser processing under the rigorous conditions. Its excellent beam quality and long term stability makes it suitable especially for FPC cutting.

It can support file formats like PLT, PCX, DXP, BMPand so on. It may use TIF fonts directly. 24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production.





Feature



1 Long lifetime working
2 very high quality laser beam

3 Rotate working talbe as your design
4 CNC control system

5 Exposing graphics can be promptly and freely amended
6 high ratio photo translate system




Specification



Model No. QA-UV15 UV cnc engraving machine
Laser type UV laser
The average output power 15W
Laser wavelength 355nm
Beam Quality(M2) 1
Frequency 20KHz-200KHz
Repetitive accuracy 0.005mm
Min Linear Width 0.01mm
Marking Depth 0.01-0.2mm
Max Speed 7000mm/s
Galvanometer Yes
Lens F-Theta Lens
Standard marking 175*175mm
The optional scope of marking 70×70mm / 110x110mm / 175×175mm / 220x220mm
Consumed power <500W
File format PLT, DXF, AI, DST, BMP, JPG, TIF
Power Supply 220V/50Hz/15A (110-120V Optional)
Cooling system Air cooling
Grosss weight 200kgs



Application



Applications include marking text, barcodes, and graphics/pictures on plastics, metals, food packaging, clothing, jewelry, ICs, etc.

All the material which fiber laser can not do, or finish not good. Most non metal materials.





UV laser device



15 Watt Cnc Metal Engraving Machine For Food Packaging 0





FAQ



1 Q: What is the warranty ?

A: The warranty is 2 year, but we offer whole life after-sale service.

2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc.

3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .

4 Q: How is the quality of the machine?

A: Germany high technoloy with good quality.

5 Q: How is the operation of the machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.

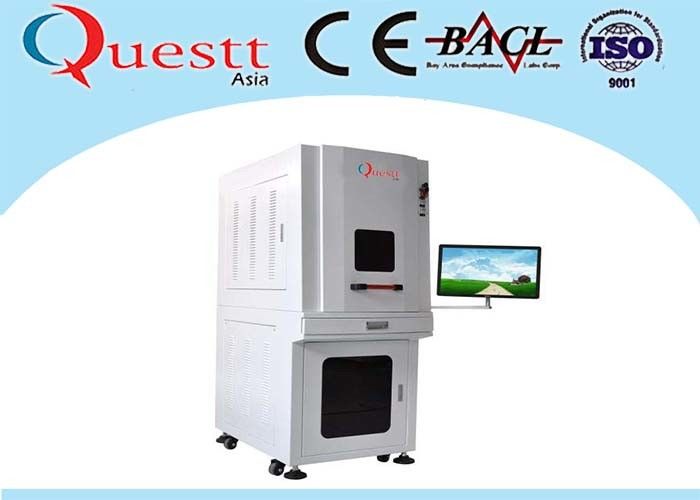

Machine outlook

15 Watt Cnc Metal Engraving Machine For Food Packaging 1
