Industrial Laser Marking Machines , 355nm Wavelength Desktop Laser Marker

Place of Origin China
Brand Name Questt
Certification CE ISO
Model Number QA-UVS5
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Exported plywood case
Delivery Time 6 days
Payment Terms T/T, Western Union, L/C
Supply Ability 1886 Sets/Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Service Engineer Overseas Service Available Laser Power 5W
Laser Type UV Laser Wave Length 355nm
Gross Weight 150kg
High Light

automatic marking machine

,

industrial marking machine

Leave a Message
Product Description

UV laser industrial marking Machine 8W perfect laser bem for precision engraving etching



Description



QUESTT QA-UVS5 UV laser industrial marking Machine is a sealed type UV laser engraving etching machine. The whole working area is a sealed boxes, better to protect you during working time, especially design for Europe and American high level safety demands countries.

The UV laser device has a Diode Side-Pumped laser as pump headstream, the diode pumped laser marking machine replaces the older style lamp pump.



It can be widely used in PCB, BGA, FCB, IC, computer fittings, industry bearing, timekeeper, electronic device, communicate device, space and aviation device, automobile parts, home appliances, hardware, electrical wire and cable, clothing, food packing, jewelry, cigarette etc. to cut and mark the characters and graphics.

The UV laser etching machine incorporates a high speed galvo scanner head, enabling the highest precision of marking at exceptionally high speeds on a wide range of materials. Especially for non metal, which fiber laser can not finish well.





Specification



Model No. QA-UVS5    UV laser industrial marking Machine
Laser type UV laser
The average output power 5W
Laser wavelength 355nm
Beam Quality(M2) 1
Frequency 20KHz-200KHz
Repetitive accuracy 0.005mm
Min Linear Width 0.01mm
Marking Depth 0.01-0.2mm
Max Speed 7000mm/s
Galvanometer Yes
Lens F-Theta Lens
Standard marking 175*175mm
The optional scope of marking 70×70mm / 110x110mm / 175×175mm / 220x220mm
Consumed power <500W
File format PLT, DXF, AI, DST, BMP, JPG, TIF,JPEG
Power Supply 220V/50Hz/15A (110-120V Optional)
Cooling system Air cooling
Grosss weight 140 kgs





Features



1 high ratio photo translating
2 high quality laser beam
3 Imported UV laser device
4 low running cost
5 sealed working table for protection
6 excellent stability







Application



PCB, BGA, FCB, IC, computer fittings, industry bearing, timekeeper, electronic device, communicate device, space and aviation device, automobile parts, home appliances, hardware, electrical wire and cable



All precison needed material and products.





UV laser device



Industrial Laser Marking Machines , 355nm Wavelength Desktop Laser Marker 0

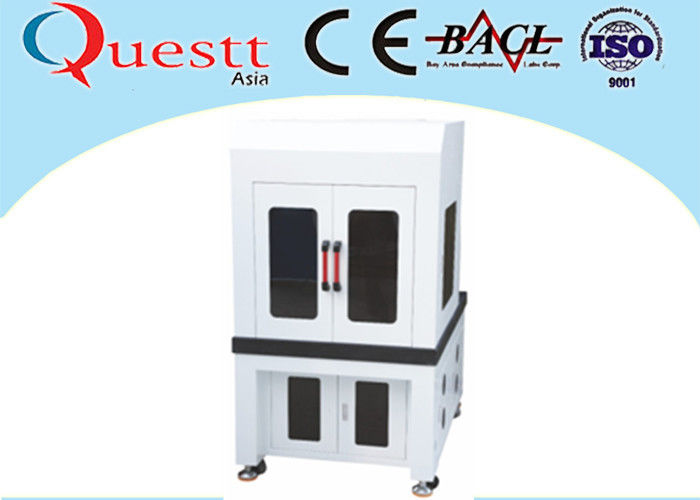

Machine outlook

Industrial Laser Marking Machines , 355nm Wavelength Desktop Laser Marker 1



FAQ

1 Q: What is the warranty of the machine?

A: The warranty is 1-2 years.

2 Q: Are you a factory or trading company?

A: We are factory for 22 years.

3 Q: What is the service

A: We offer oversea service.

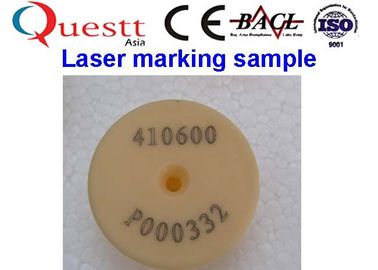

Sample of ceramic

Industrial Laser Marking Machines , 355nm Wavelength Desktop Laser Marker 2
