Pollution Free Fiber Laser Welding Machine 100W Soldering For Mold Iron Steel

China Pollution Free Fiber Laser Welding Machine 100W Soldering For Mold Iron Steel supplier
Pollution Free Fiber Laser Welding Machine 100W Soldering For Mold Iron Steel supplier Pollution Free Fiber Laser Welding Machine 100W Soldering For Mold Iron Steel supplier Pollution Free Fiber Laser Welding Machine 100W Soldering For Mold Iron Steel supplier

Large Image :  Pollution Free Fiber Laser Welding Machine 100W Soldering For Mold Iron Steel

Product Details:

Place of Origin: Wuhan,China
Brand Name: Questt
Certification: CE ISO
Model Number: QA-100FT

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Export Plywood Case
Delivery Time: 19 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2110 sets / year
Contact Now
Detailed Product Description
Laser Type: Fiber Transmit Wavelength: 1064nm
Laser Power: 100W Pulse Width: 0.1-20ms
Power Supply: 220V 50HZ GW: 80kgs

Fiber optic welding machine 100W soldering for mold iron steel

Descriptions



QUESTT QA-100FT is a laser welding sysetm through the fiber optic cable transmission. This is a mini type fiber optic welding machine. After the fiber optical transmission, the laser beam quality is much better and suitable for precision products soldering.



When laser radiation heats the surface of work-piece, the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool.





Specification



Model QA-100FT QA-200FT QA-300FT QA-400FT QA-500FT QA-600FT
output power 100W 200W 300W 400W 500W 600W
laser wavelength 1064nm 1064nm 1064nm 1064nm 1064nm 1064nm
Max Pulse Power 60J 70J 80J 100J 120J 150J
Pulse Width 0.1-20ms 0.1-20ms 0.1-20ms 0.1-20ms 0.1-20ms 0.1-20ms
Max welding Depth 1mm SS 1.5mm SS 2mm SS 2.5mm SS 3mm SS 3mm SS
Pulse Frequency 0-20HZ 0-300HZ 0-300HZ 0-300HZ 0-300HZ 0-300HZ
Consumption 4KW 6KW 12KW 12KW 16KW 18KW
Power Input 220V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Cooling Air Air/water Water Water Water Water
Fiber Model GI/SI GI/SI GI/SI GI/SI GI/SI GI/SI





Features



1. Human-based design accords with ergonomics, avoiding fatigue after long time working.



2. High speed, high efficiency, deep enough, slightly deformation, small heat effect area, high welding quality, pollution free, environmental friendly.



3. The parameters are adjusted by the lever in the seal cavity, which is simple and highly efficient.



Application



Used for various of stainless steel, copper, titanium word words, aluminum alloy, galvanized words, iron, stainless steel, iron and low carbon steel





Technical Support



We are pleased to offer 24hr support for all of our products. We're basically here to do as much as we can to help get you up and running as quickly as possible.





Welding sample

Pollution Free Fiber Laser Welding Machine 100W Soldering For Mold Iron Steel



FAQ



Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.



Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine.



Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can.



Pollution Free Fiber Laser Welding Machine 100W Soldering For Mold Iron Steel

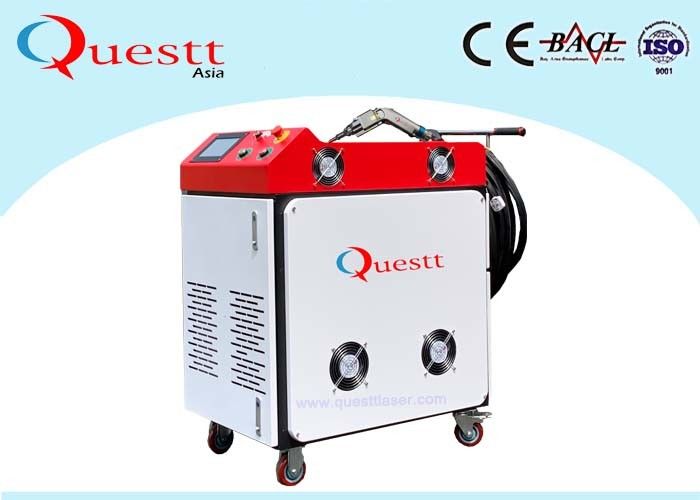

Machine outlook



Pollution Free Fiber Laser Welding Machine 100W Soldering For Mold Iron SteelPollution Free Fiber Laser Welding Machine 100W Soldering For Mold Iron Steel
