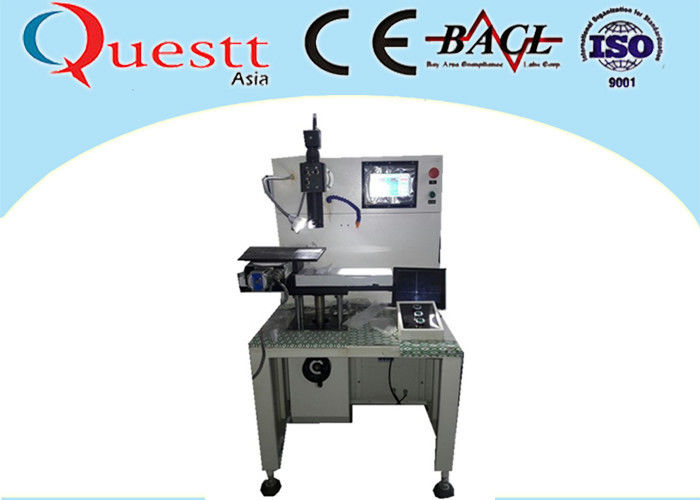

Water Cooling Fiber Laser Welding Machine For Jewellery Repairing 500W Computer Control

China Water Cooling Fiber Laser Welding Machine For Jewellery Repairing 500W Computer Control supplier
Water Cooling Fiber Laser Welding Machine For Jewellery Repairing 500W Computer Control supplier Water Cooling Fiber Laser Welding Machine For Jewellery Repairing 500W Computer Control supplier

Large Image :  Water Cooling Fiber Laser Welding Machine For Jewellery Repairing 500W Computer Control

Product Details:

Place of Origin: Wuhan,China
Brand Name: Questt
Certification: CE ISO
Model Number: QA-500FT

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Exported standard wooden cases
Delivery Time: 19 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1900 sets / year
Contact Now
Detailed Product Description
Laser Power: 500W Power Supply: 220V 50HZ
GW: 200kgs Controller: Computer
Laser Source: YAG And Fiber Transmit Service: Oversea Service Available

Optical Fiber laser welding machine for mould jewelry repairing 500W

Description



QA-500FT is a optical fiber laser welding machine  through the fiber optic cable transmission. The laser source is still NG:YAG, it is equiped with a golden sealed laser cavity, red diamond rod, 2 Xonen lamps etc.



When laser radiation heats the surface of work-piece, the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool.



24 hours continously working, long lifetime .



Features



1. The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects.



2. Golden converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant with 8-10 years service life. The life of xenon lamp is more than 8 million times.



3. Most advanced light shielding system eliminates the irritation to eyes by laser during working.





Specification



Model QA-100FT QA-200FT QA-300FT QA-400FT QA-500FT QA-600FT
output power 100W 200W 300W 400W 500W 600W
laser wavelength 1064nm 1064nm 1064nm 1064nm 1064nm 1064nm
Max Pulse Power 60J 70J 80J 100J 120J 150J
Pulse Width 0.1-20ms 0.1-20ms 0.1-20ms 0.1-20ms 0.1-20ms 0.1-20ms
Max welding Depth 1mm SS 1.5mm SS 2mm SS 2.5mm SS 3mm SS 3mm SS
Pulse Frequency 0-20HZ 0-300HZ 0-300HZ 0-300HZ 0-300HZ 0-300HZ
Consumption 4KW 6KW 12KW 12KW 16KW 18KW
Power Input 220V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Cooling Air Air/water Water Water Water Water
Fiber Model GI/SI GI/SI GI/SI GI/SI GI/SI GI/SI





Application


Perfect welding for cold work alloy steel, hot work alloy steel,

nickel tool steel, steel alloy, high tenacity aluminum alloy, etc





Machine details



Water Cooling Fiber Laser Welding Machine For Jewellery Repairing 500W Computer Control











Water Cooling Fiber Laser Welding Machine For Jewellery Repairing 500W Computer Control



FAQ



Q: What’s the package?
A: We have 3 layers package. First outside, wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.


Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, you will receive the machines in good condition.





Machine outlook



Water Cooling Fiber Laser Welding Machine For Jewellery Repairing 500W Computer Control
