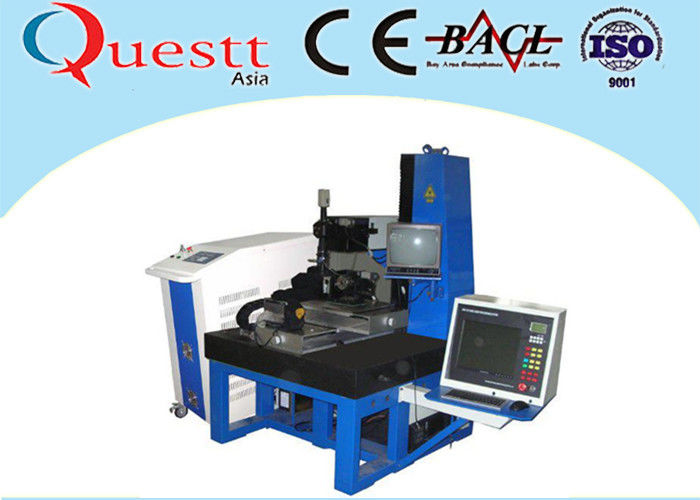

CNC Laser Welding Machine For Platinum Gold , YAG Automatic Soldering Machine

  • CNC Laser Welding Machine For Platinum Gold , YAG Automatic Soldering Machine
  • CNC Laser Welding Machine For Platinum Gold , YAG Automatic Soldering Machine
Place of Origin Wuhan,China
Brand Name Questt
Certification CE ISO
Model Number QA-400C
Minimum Order Quantity 1set
Price Negotiable
Packaging Details Standard Export wooden case
Delivery Time 16 days
Payment Terms L/C, T/T, Western Union
Supply Ability 1990 sets / year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 400W Power Supply 380V 50HZ
Laser Source YAG Service Oversea Service Available
Control CNC System Warranty 1 Year
High Light

laser beam welding machine

,

laser welding equipment
Leave a Message
Product Description

CNC Laser Welding Machine for platinum gold silver soldering 400W

Description



QA-400C CNC Laser Welding Machine is a automatic laser welding machine. The machine is controlled by CNC system. High efficiency and precision.

The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects. The parameters are adjusted by the lever in the seal cavity, which is simple and highly efficient.



Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant with 8-10 years service life. The life of xenon lamp is more than 8 million times.

Most advanced light shielding system eliminates the irritation to eyes by laser during working.







Features



1. The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects.

2. High speed, high efficiency

3. slightly deformation, small heat effect area

4. high welding quality

5. pollution free, environmental friendly.





Specification



Model QA-200C QA-300C QA-400C QA-500C
output power 200W 300W 400W 500W
laser wavelength 1064nm 1064nm 1064nm 1064nm
Max Pulse Power 70J 80J 100J 120J
Pulse Width 0.1-20ms 0.1-20ms 0.1-20ms 0.1-20ms
Max welding Depth 1.5mm SS 2mm SS 2.5mm SS 3mm SS
Pulse Frequency 0-300HZ 0-300HZ 0-300HZ 0-300HZ
Consumption 6KW 12KW 12KW 16KW
Power Input 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Cooling Air/water Water Water Water
Fiber Model GI/SI GI/SI GI/SI GI/SI





Application


Perfect welding are extensive: cold work alloy steel, hot work alloy steel,

nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver,

brass, aluminum-magnesium alloy, titanium, and platinum





Machine details



CNC Laser Welding Machine For Platinum Gold , YAG Automatic Soldering Machine 0







FAQ



1 Q: What is the warranty of the machine?

A: The warranty is 12 month, but whole life service.

2 Q: What is the payment term?

A: T/T, L/C, Westen Union, PayPal etc.

3 Q: How about the quality?

A: High quality best price. Germany technology.





Machine outlook



CNC Laser Welding Machine For Platinum Gold , YAG Automatic Soldering Machine 1



CNC Laser Welding Machine For Platinum Gold , YAG Automatic Soldering Machine 2
