ADs Board 300W Laser Welding Equipment , Fast Positioning YAG Laser Soldering Machine

Place of Origin China
Brand Name Questt
Certification CE ISO
Model Number Signage-300
Minimum Order Quantity 1set
Price Negotiable
Packaging Details Exporting standard wooden cases
Delivery Time 10 days
Payment Terms T/T, Western Union, L/C
Supply Ability 3400 sets / year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 300W Service Oversea Service Available
Laser Cavity Golden Wavelength 1070nm
Viewer Color CCD Display Laser Beam 0.1-3 Mm
High Light

laser beam welding machine

,

cnc laser welding machine

Leave a Message
Product Description

NG: YAG laser welding machine for ADs board 300W Channel letter laser soldering

Description



Signage-300 laser welding machine is a YAG laser soldering machine system for channel letters welding. The laser welder adopta a goldend laser cavity, diamond rod and high quality Xenon lamps.The laser output power can reach 300W, the stell channel letters will be very steady after welding together. And can use very long time outside on the walls.

The principle based on laser high heat energy and focus point of welding technology, effectively handle all small parts of welding, makes up for the traditional argon arc welding technology in repair welding of fine surface.

To avoid the thermal strain and post-processing the two threshold, greatly improving the connection strength and quality of the metal or metal signs.





Features



1. Capable of partial heating process.

2. Able to deal with complex, profiled, or tiny letters.

3. Red light fast positioning, CCD display, microscope optional.

4. New metal processing technology brings higher quality of end products

5. Low noise & cost maintenance, no pollution, long using life.

6. Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope.



Specification

300W Laser Welding Equipment.pdf



Model Signage-300
Laser working substance Nd3+:YAG crystal gilded resonance cavity
Rated power 300W
Max. single-pulse energy 100J
Max. peak power 10KW
Laser wave length 1064nm
Focused facula diameter ф0.10-3.0mm Adjustable
Pulse width 0.2-20msadjustable
Pulse frequency 1-30HZ Adjustable
Pulse depth ≤6mm
Working table scale 750*1000mm
3-axis itinerary X=700mmY=150mmZ=200mm
Controlling system Single-chip micro processor
Observing system Color CCD
Cooling system Water chiller
Packing Size

1530*810*1100mm+960*760*1150mm

+960*670*950mm=2.8CBM

Gross weight 320KG





Prospect of laser technology in Ads industry



With the booming of global advertising industry, metal letters has been more and more popular because of its colorfulness, attractiveness, heating-proof, frozen-proof, no deformation, no fadedness , corrosion proof, rainproof, and spontaneous combustion proof and some other good features.

Fixing by rivets sounds good, but not good-looking. Soldering is never a green way of fixing metal letters because of the poisoning gas produced when processing. From any aspect, laser welding is the best solution and the greenest.





Configuration



No: Item Description Quantity Origin Remark
1 YAG Cavity Golden 1 set UK Morgan
2 Thermostatic water cooling machine Hanli, China 1 set Shenzhen

less noise and

low power consumption

3 Optical lens Wavelength 1 set Singapore focal length 150mm
4 Laser power QAPLASER 1 set Wuhan
5 CCD Observation system 1 set Shenzhen Standard configuration
6 YAG bar BOET 1 set Beijing







Application



Welding for various metal channel letters, metal letter back-kit, customized metal signage, and oversized exterior billboards, especially for ads advertising industry.



Welding Samples



ADs Board 300W Laser Welding Equipment , Fast Positioning YAG Laser Soldering Machine 0

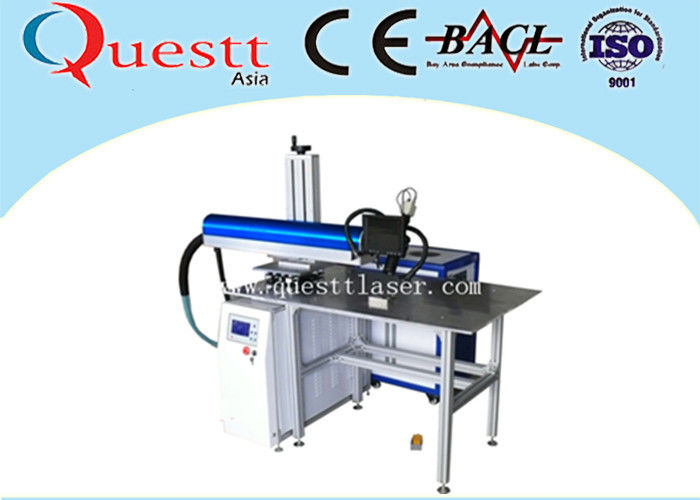

Machine outlook



ADs Board 300W Laser Welding Equipment , Fast Positioning YAG Laser Soldering Machine 1
