0.05mm Precision Channel Letter Bending Machine LCD Control R10mm Min Bending Radius

Product Details

Place of Origin: China

Brand Name: Questt

Certification: ISO CE

Model Number: QA-CB100

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exporting wooden boxes

Delivery Time: 5 - 13 days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 5300 sets / year

Get Best Price
Highlight:

Automatic Bending Machine

,

Laser Bending Machine

Thickness:
0.4-1mm
Control System:
LCD Screen
Max Width:
120mm
Material:
Metal Sheet
Power Supply:
220V 50HZ
Service:
Engineer Service Overseas
Thickness:
0.4-1mm
Control System:
LCD Screen
Max Width:
120mm
Material:
Metal Sheet
Power Supply:
220V 50HZ
Service:
Engineer Service Overseas
0.05mm Precision Channel Letter Bending Machine LCD Control R10mm Min Bending Radius

Channel letter bender machinery for Carbon steel Aluminum profiles High speed

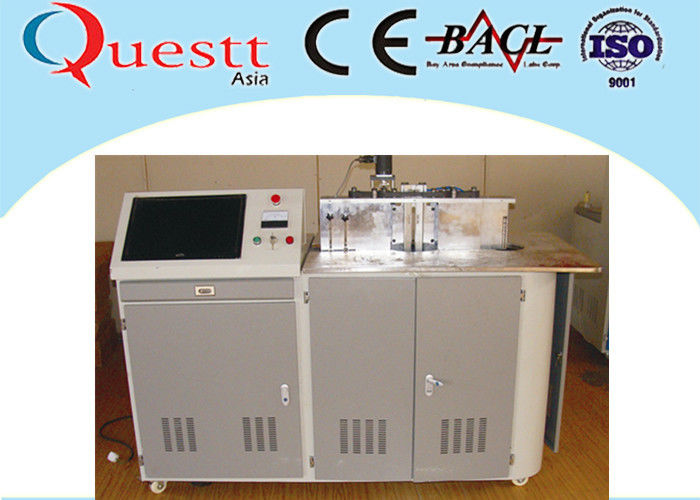

Machine description



QA-CB100 channel letter bender machinery is a bending for aluminum and steel profiles without any special edge.



The bender is a popular systems for advertisement signs. It is a New type of advertising equipment. It is a Professional solution to the manufacture for Channel letter sidewalls.



This bender system combined with three parts:

First one is the auto feeding rotate table, feeding the coil metal automatically , no need human extra work.

Second one is the slotting part in the middle of the machine, imported blade cutter for slotting, fast and precision.

Third one the bending part on right side of the machine, equip with a bending head, bending both sizes the finish one complex letter at only one time.



The best machine for the fabrication of LED channel letters, stainless steel letters, Piercing letters, Epoxy letters. It has three parts: feed, slot, and bend, can process stainless steel, aluminum, iron, galvanized sheet



Applications



Industries: advertising industry



Materials: Aluminum, Stainless steel, steel, Iron, Galvanized sheet

0.05mm Precision Channel Letter Bending Machine LCD Control R10mm Min Bending Radius 0





Features



1. Rolling feeding mode, feed power constant, the feeding is convenient, high working efficiency and no harm to the material.



2. Closed loop control system combined with the encoder adaptive mechanism to ensure high precision feeding.



3. Automatically adjust the depth of the groove structure, the use of serve motor, more efficient.



4. The tool is quick and convenient, the material of different thickness of arbitrary processing.



5. The use of hard alloy cutting tools, cutting tool wear is simple, long service life.



6. The linkage of the bent structure, the servo motor is used for bending and the efficiency is high.



7. Automatically adjust the depth of grooves without manual operation.



8. Develop a self-make new software, match with machine working well and make easier process higher precision.



9.Adopts planner slotting way, making slots well and wasting cost.



10. High precision machining, feeding precision can reach 0.01mm, bending accuracy up to 0.4 °.





Technical Parameters



Model: QA-CB100 channel letter bender machinery
Type LCD Control
Bending Material: Aluminum
Max. Processed Thickness: 0.3-1.2 mm
Max. Processed Width: <120 mm
Slot angle 45-135 degrees

Min. Bending radius

R10mm

Bending distance from start

angle
3mm
Power consumption 1600W
Voltage: 220V
Weight: 350KG
File format PLT,DXF,AI etc Vector file format
Feed speed: 5~20 m/ min
Precision 0.05 mm
Service

Engineer available to service overseas

Dimension 1500x880x1310mm



0.05mm Precision Channel Letter Bending Machine LCD Control R10mm Min Bending Radius 1

Special tools



0.05mm Precision Channel Letter Bending Machine LCD Control R10mm Min Bending Radius 2

FAQ

1 Q: What is the warranty of 100W laser rust removal machine?
A: The warranty is 1 year, but we offer whole life after-sale service.

2 Q: What is the payment terms do you have?
A: T/T, L/C, Westen Union, etc.

3 Q: What is the after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .

4 Q: How is the quality of the machine?
A: Germany high technoloy with perfect quality.

5 Q: How is the operation of the laser rust removal machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
