500W Metal Laser Cutter , Pipe Laser Cutting Machine For Sheet / Round Square Pipe
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 500W | Wavelength | 1070nm |
|---|---|---|---|
| Material | Metal Sheet And Pipe | Metal Thickness | 0.1-25 |
| Laser | Fiber Laser Or YAG | Pipe Type | Round And Square |
| High Light | Sheet Metal Cutting Machine,Fiber Laser Cutting Machine |
||
Product Description
Metal Pipe Laser Cutting Machine both for sheet and round square pipe 500W
Overview

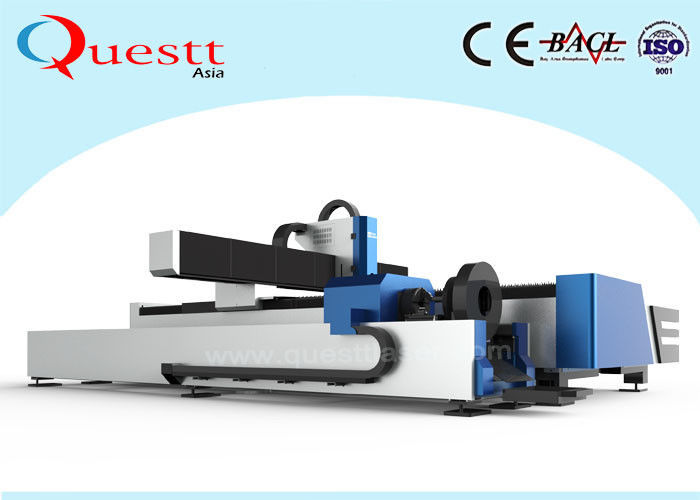

QA-FL500MP Metal Pipe Laser Cutting Machine is a mixture type laser cutter for both metal sheet and metal pipes. The metal pipes can be both round shape and square shape. Multifunctional application with only one machine. It equiped with a big rotate table for pipe cutting.
The laser cutter has high quality beam, high reliability, good optical mode, high top power, smooth incision, good perpendicularity, it is a special cutting machine, which is suitable for stainless steel, carbon steel, Copper, Aluminum, Mo to cut and punch, the cutting speed and incision are both high level, CYPCUT program can process any graphics and text
Advantages
1. It can be achieved for pipe, sheet materials under the same system.
2. It can cut flat material together with the pipes for less than 600mm diameter.
3. It is a multi-use and cost savings.
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Super flexible optical effects: Compact design, compact and easy to flexible manufacturing requirements.
7. running stably, good processing quality, high efficiency, good precision, easy operation, convenient maintenance.
Parameters
| Model | QA-FL500MP2513 | QA-FL500MP3015 | QA-FL500MP4115 |
| Max Output Power | 650W | 650W | 650W |
| Laser Wavelength | 1064nm | 1064nm | 1064nm |
| Pulse Frequency | 1--300HZ | 1--300HZ | 1--300HZ |
| Min Line width | 0.15mm | 0.15mm | 0.15mm |
| Cutting Area | 2500mm×1300mm | 3000mm×1500mm | 4100mm×1500mm |
| Cutting Thickness | 0.2㎜-8mm | 0.2㎜-8mm | 0.2㎜-8mm |
| Pipe Cutting Diameter | 10-200mm | 10-200mm | 10-200mm |
| Max Pipe Length | 2500mm | 3000mm | 4100mm |
| Cutting Thickness | 0.2-4mm | 0.2-4mm | 0.2-4mm |
| Power | 380V/50HZ/100A | 380V/50HZ/100A | 380V/50HZ/100A |
| X,Y,Z position precision | ≤±0.08㎜/1000㎜ | ≤±0.08㎜/1000㎜ | ≤±0.08㎜/1000㎜ |
| X,Y,Z repeat precision | ≤±0.04㎜ | ≤±0.04㎜ | ≤±0.04㎜ |
| Cooling | Water Chiller | Water Chiller | Water Chiller |
Materials
For stainless steel, carbon steel, alloy steel, spring steel, aluminum, copper, titanium and other metal plates and pipes, shaped box, a variety of high hardness and brittle alloys.
Applications
Widely used in sheet metal processing, advertising signs, electrical cabinet, kitchen, bathroom, jewelry, decoration, textile machinery, auto parts, elevator parts, machinery parts, aerospace, lighting, oil exploration and other industries.
Samples
FAQ
1.Q:What is the warranty of the fiber laser cutting machine?
A:Questt Laser offer a warranty for 1-2 years.
2.Q:Are you a factory or trading company?
A:Quesstt Laser is a factory for 22 years.
3.Q:How about the quality?
A:Quesstt Laser Technology is from Germany.High quality best price.
4.Q:What is your service?
A:If needed,Questt Lasers offer door to door service !we can send engineers to your factory for assembling ,adjusting and training!
5.Q:How do i get technical support after purchasing?
A:Questt Laser offer online service in English through Skype,WhatsAPP,Wechat or Email etc .If need remote operation,we can use TeamViewer software.
Machine outlook
