Industrial Laser Cutting Machine For SS Iron , High Power 10000W 3 Axis Laser Cutter
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Work Size||1500 X 3000 Mm||Laser Type||IPG Fiber Laser|
|Service||Offer Oversea Service||Cutting Thickness||0.1-18mm|
|Laser Power||2000W||Power Supply||380V 3 Phases|
CNC Laser Cutting Machine,
Sheet Metal Cutting Machine
Metal cutting laser machine CE 2000W for SS Iron with 3 axis laser cutter
FL2000-1530 Metal cutting laser machine is high power laser cutter for very thick matel sheet, fast speed with smooth cutting edge.
The laser cutter consists of 5 parts ,the machine bed host, electrical control, water cooling unit, air cooling system and Exhaust system.
The machine bed host is the main part of the whole laser cutting machine. Cutting function and cutting accuracy of laser cutting machine are realized by it. It consists of 6 parts ,the bed, laser source, cantilever, Z axis device, work table, the auxiliary system (Protective cover, gas and water) and operating table.
The electrical control system is an important part of ensuring that all kinds of graphics running tracks, which is composed of the CNC and the low-voltage electric system.
The CNC machine bed Equipped with BECKOFF system. This system is based on Windows XP operation system.
It runs stable and reliable with microprocessor and ethernet communication interface.The system has the following characteristic: fast interpolation, easy operation, good dynamic performance and strong load.
Other auxiliary peripheral equipment including large water chiller, cooling system, exhaust system and power supply
1. Great Performance: Identical cutting quality on any cutting point is realized through fiber transmission.
2. High Efficiency: The rapid cutting speed is two times higher than that of CO2 laser machine.Its use-cost is low.
3. Low Consumption of Gas: Laser cutting does not make any gas because of the specific cutting technology on steel plate.
4. Low Consumption of Energy: It is environment-protecting and energy-saving.Its power consumption is reduced by 20%-30% compared with that of CO2 laser machine.
5. Maintenance-free: Reflecting lens is not needed for fiber transmission.Much time is saved when optical path is adjusted.It is maintenance-free
6. Install Proportional Valve: Use software to change the air and control the air pressure automatically, no need to change the air manually, it can save you much time;
7. Stable working table: Use 8mm thick steel side board, around 3.5 tons in weight;
8. Dual drive, aging treatment, stress relief test to ensure long time fast running without changing shape;
9. Air condition for control cabinet:Cooling for Electronic parts and Laser Power Supply, make sure control cabinet temperature at 26 degree, extend the life of electronic devices and save the power for the factory.
10. High electro-optical conversion efficiency: Fiber laser can convert up to 30 % electrical energy into laser energy. High energy conversion makes fiber laser more energy efficient.
11. Low running cost: The cutting cost by air is only 1.95usd/hour ;
|Laser output power||500W/100W/2000W|
|Laser wavelength||1070 nm|
|Laser type||Fiber laser souce|
|Max cutting speed||18m/min|
|Max cutting thickness||3-6mm according to material|
|Output energy regulating||10%~100%|
|Input electric power for laser||≤2KW|
|Type of cooling||Water cooling|
|Drive mode||Imported servo motor|
|Transmission mode||Imported high precision Rack and Pinion|
|Max-range for cutting||3000mm×1500 mm/ 2500x1300mm|
|Service||Oversea service for installation and training|
|Material / Laser Power||500W||750W||1000W||1500W||2000W||3000W||4000W|

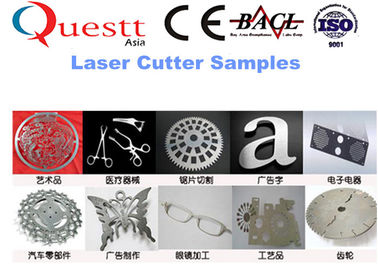

Metal cutting machine for jewelry is specially for jewelry, but also widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.
Free sample making
For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Sample shipping back cost should be paid by purchaser.
Progressing Solution Design
According to customer's product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
Training to install:
Option A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting
Option B. You can come to Questt factory for training. Questt will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility. Training Time: 7 working days
Option C. Our engineer will do a onsite instruction training service at your site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before dispatch. It is better to arrange a translator for both of our engineer during the training period. Training Time: 7 days
