Easy Maintenance CNC Metal Laser Cutting Machine 1000W With Humanization Design System

Place of Origin China
Brand Name Questt
Certification ISO , CE
Model Number FL1000-1530/4020/6020
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Standard Exporting Wooden Cases
Delivery Time 7 - 40 days
Payment Terms T/T, Western Union, L/C
Supply Ability 3999 sets / year

Contact me for free samples and coupons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Work Size 1500 X 3000 Mm Laser Type Fiber Laser Source
Service Engineer Offer Oversea Service Cutting Thickness 0.1-10mm
Laser Power 500-10000W Control System CNC
High Light

CNC Laser Cutting Machine

,

Fiber Laser Cutting Machine

Leave a Message
Product Description

Easy Maintenance CNC Metal Laser Cutting Machine 1000W With Humanization Design System

Overview

FL1000-1530 CNC Metal Laser Cutting Machine is specially used for all kinds of metals.

Low voltage electrical system control portion is located within the cabinet, machine electrical control part of the interface, electrical system raw devices are used domestic and foreign well known manufacturers products, ensure the machine in operation is stable and reliable, responsive. The drive motor is AC servo motor, AC servo motor is used to drive the machine tool’s X axis gantry structure, Y axis slide, which is characterized by good acceleration performance,fast response speed, Z axis of the machine tool,and AC servo motor for driving: namely Z axis cutting head, which is characterized by good dynamic response, which can be controlled by NC control.
The laser cutter consists of 5 parts ,the machine bed host, electrical control, water cooling unit, air cooling system and Exhaust system.

A. The machine bed host is the main part of the whole laser cutting machine. Cutting function and cutting accuracy of laser cutting machine are realized by it. It consists of 6 parts ,the bed, laser source, cantilever, Z axis device, work table, the auxiliary system (Protective cover, gas and water) and operating table.
B. The electrical control system is an important part of ensuring that all kinds of graphics running tracks, which is composed of the CNC and the low-voltage electric system.
The CNC machine bed Equipped with BECKOFF system. This system is based on Windows XP operation system.
C. Other auxiliary peripheral equipment including large water chiller, cooling system, exhaust system and power supply

Features

1. Great Performance: Identical cutting quality on any cutting point is realized through fiber transmission.
2. High Efficiency: The rapid cutting speed is two times higher than that of CO2 laser machine.Its use-cost is low.
3. Enclosure design conforms to CE standard for reliable and safe processing. Pallet changer is convenient for material uploading and unloading and further improving working efficiency.

4. Aiming at high speed cutting, strengthened welded machine body after 2 times of aging process, ensuring long-term accuracy and stability of performance.

5. Dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of metals. Easy operation and low cost

6. Install Proportional Valve: Use software to change the air and control the air pressure automatically, no need to change the air manually, it can save you much time;
7. Stable working table: Use 8mm thick steel side board, around 3.5 tons in weight;
8. Dual drive, aging treatment, stress relief test to ensure long time fast running without changing shape;
9. Double ball screw close-loop system and imported open-type CNC system, ensure high accuracy and high working efficiency during high speed cutting.
10. Standard collocation of 1KW fiber laser generator and optional 500W-3000W fiber laser generator. Low operating and maintenance costs. Achieve long-term return on investment and revenue maximization.

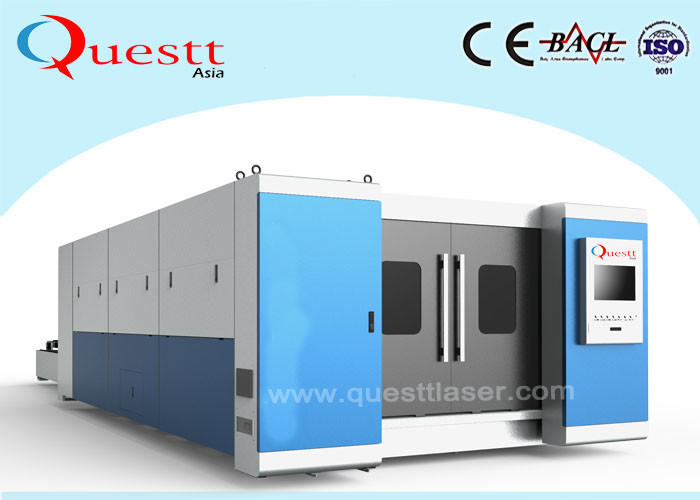

 Easy Maintenance CNC Metal Laser Cutting Machine 1000W With Humanization Design System 0


Parameters



Model Rigid-FL2000-3015
Laser source Fiber laser (IPG)
Laser Power 2KW
Laser Wavelength 1070nm
Max working area 3000x1500mm
Working table Single (double exchange tables optional)
Z axis movement 100mm
Positioning accuracy ±0.01mm
Repeating accuracy ±0.02mm
Max cutting speed 18m/min
Max cutting thickness 1-16mm according to materials
Cooling Water cooling
Laser Cutting Head Auto focus Raytools from Swiserland
Servo Motor & Driver YASKAWA From Japan
Reducer with Gear Shimpo from Japan
Rack Pinion Hiwin from Tanwan(World Brand)
Linear Guiderail Hiwin From Tanwan(world Brand)
Control System CyperCut8000 from Bochu China
Oil Lubricated Automatic lubricated
Gantry System Steel gantry
Pneumatic Control SMC from Japan
Gas controller Double
Machine Dimension 4650*2300*1750 mm
Weight 2900Kg
Power Protection Level IP54
Voltage Three Phases 380V, 50HZ




Cutting parameter


Material / Laser Power 500W 750W 1000W 2000W 3000W 4000W
Carbon Steel 6mm 8mm 10mm 16mm 20mm 22mm
Stainless Steel 3mm 4mm 6mm 10mm 12mm 15mm
Aluminum 1mm 3mm 4mm 6mm 8mm 10mm
Brass 1mm 2mm 4mm 6mm 8mm 8mm
Copper 1mm 2mm 3mm 4mm 5mm 6mm
Galvanized Steel 1mm 2mm 4mm 6mm 8mm 10mm


Application
Metal cutting machine for jewelry is specially for jewelry, but also widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.


Support

After-sale service:
Training to install:
Option A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting
Option B. You can come to Questt factory for training. Questt will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility. Training Time: 7 working days
Option C. Our engineer will do a onsite instruction training service at your site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before dispatch. It is better to arrange a translator for both of our engineer during the training period. Training Time: 7 days

FAQ
1 Q: What is the warranty of 100W laser rust removal machine?
A: The warranty is 1 year, but we offer whole life after-sale service.
2 Q: What is the payment terms do you have?
A: T/T, L/C, Westen Union, etc.
3 Q: What is the after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .
4 Q: How is the quality of the machine?
A: Germany high technoloy with perfect quality.
5 Q: How is the operation of the laser rust removal machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.

5 Stars Review:

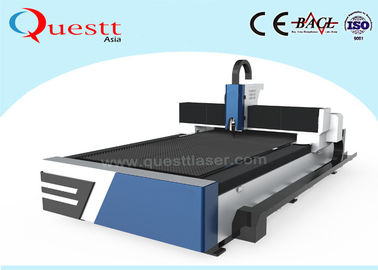

Easy Maintenance CNC Metal Laser Cutting Machine 1000W With Humanization Design System 1
