USB panel control CO2 laser engraving machine 150W Gantry working area 1.3x2.5M

China USB panel control CO2 laser engraving machine 150W Gantry working area 1.3x2.5M supplier
USB panel control CO2 laser engraving machine 150W Gantry working area 1.3x2.5M supplier USB panel control CO2 laser engraving machine 150W Gantry working area 1.3x2.5M supplier USB panel control CO2 laser engraving machine 150W Gantry working area 1.3x2.5M supplier

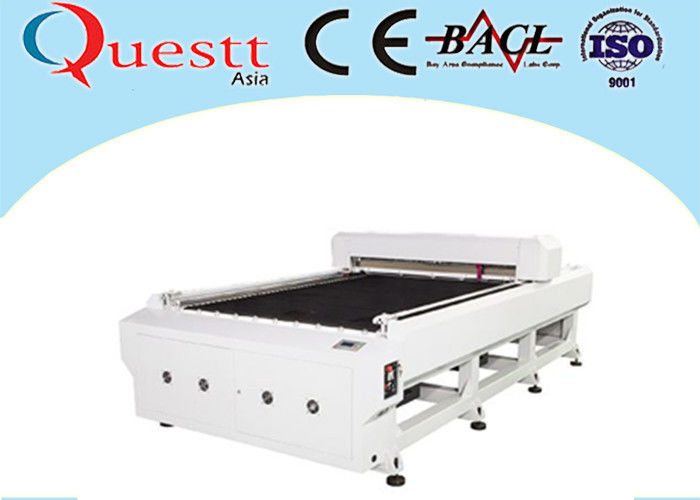

Large Image :  USB panel control CO2 laser engraving machine 150W Gantry working area 1.3x2.5M

Product Details:

Place of Origin: China
Brand Name: Questt
Certification: CE ISO
Model Number: QA150-1325

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Exporting Standard Plywood Box
Delivery Time: 7 - 20 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 300 pcs / year
Contact Now
Detailed Product Description
Laser: CO2 Laser Cutting Size: 1300x2500mm
Laser Power: 150W Cooling System: Water Cooling
Controller: USB Penal Warranty: 1 Year

CO2 laser engraving cutting machine 150W Gantry large working area 1.3x2.5M



Introduction



QA150-1325 CO2 laser engraving cutting machine is a gantry type laser engraver with large working area 1300x2500mm, It can meet the requirements such as large working area, high precision, high efficiency,



This product has the been widely used with in high precision & power CO2 laser cutting industry in China. It has some advantages of high precision, high speed, reliable performance, low energy consumption, low cost,etc.



It adopts the unique technology as screw rotated driving and double ball-screw driving which are first developed by ourselves in China. It has very wide prospects of application.



Features



1. 600 degree heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate argon shielded arc welding to make sure 20 years usage without deformation.



2. Adopts precision collimator for guide installation and debugging test, the accuracy of 0.01 mm,

synchronous wheel pumping test, in order to prevent the cutting is choppy, precision up to 0.02 mm.



3. Patent laser cutting bed convulsions system and convulsions system, which can effectively eliminate 80% waste flue gas. Equipped with convulsions system. Under the convenient receiving device.



4. Adopt high precision laser head, X axis transmission adopts aluminum structure, the weight reaches to 1.2 tons. Effective guarantee the stability of the machine tool.



5. With CE


6. Auto up and down table


7. High engraving speed


8. 80-150W CO2 laser tube



9. Laser work, support Coreldraw, AutoCAD



10. Available to work with Windows 7 32/64 bits



Specification



Laser power 150W
Cutting area 1300mm x 2500 mm
Max. Object size 1300mm(no limited)
Max. cutting thickness Acrylic 0-30mm
Orientation precision 0.05mm
Repeating orientation precision 0.02mm
Max. movement speed 15M/MIN
Cooling system Water cooling
Power 220V/50HZ/(35A/40A)
Average power consumption 12.5KW
Overall dimension 2360*1924*1250 mm





Materials



Items Engraving Cutting

Fabric Denim , leather , polyester , cotton , nylon , pongee ,

suede , jeans ,satin , corduroy , chiffon , tulle , fleece

yes yes
Wood Plywood , bamboo , veneer , mdf , polymeric materials yes yes

Plastic PP , plastic , ABS plastic , PVC , pipe , polyester ,

sheet , insulation layer

yes yes
Organic Acrylic , rubber , resin , epoxy yes yes
Paper Packaging materials , tin foil , card , cardboard , chipboard yes yes
Composite Double color plate organic board yes yes

Stone Ceramic , tile , marble ,granite , slate , gravestone ,

porcelain , tombstone , ceramic plate

yes no

Other Nonmetals process materials , coating materials ,

plating materials , spraying materials

yes

no





Applications



Widly used in Industry of advertising,clothing,shoes,decoration,furniture ,model making,artware.Widely used in fine carving , of acrylic ,organosheet,board,bamboo products,paper,glass etc nonmetal material and various kinds of character,graph,image,trademark .



Samples



USB panel control CO2 laser engraving machine 150W Gantry working area 1.3x2.5M



Configuration

USB panel control CO2 laser engraving machine 150W Gantry working area 1.3x2.5M

Machine overlook

USB panel control CO2 laser engraving machine 150W Gantry working area 1.3x2.5M

USB panel control CO2 laser engraving machine 150W Gantry working area 1.3x2.5M
