Product Details
Place of Origin: China
Brand Name: Questt
Certification: CE ISO
Model Number: QA130-1390
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Exporting Standard Plywood Box
Delivery Time: 3 - 12 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5920 sets / year
Laser Power: |
130W |
Laser Type: |
CO2 |
Service: |
Oversea Service |
Warranty: |
1 Year And Wholelife Service |
Cooling: |
Water Cooling |
Working Area: |
1.3x0.9m |
Laser Power: |
130W |
Laser Type: |
CO2 |
Service: |
Oversea Service |
Warranty: |
1 Year And Wholelife Service |
Cooling: |
Water Cooling |
Working Area: |
1.3x0.9m |

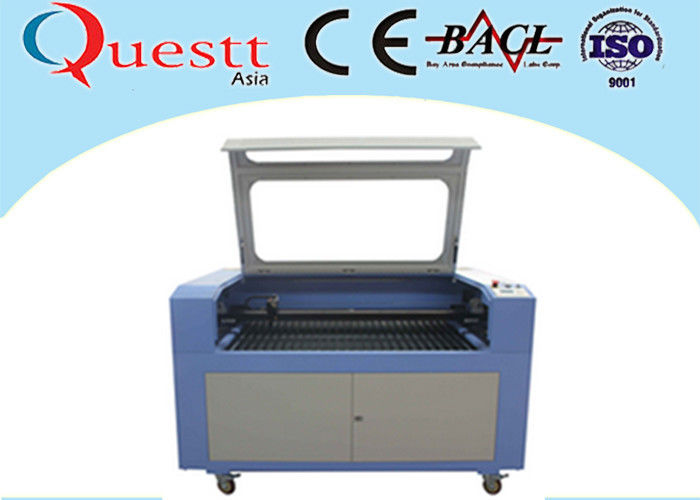

CO2 laser engraving machine cutting for Plastic PP ABS PVC acrylic 130W
Introduction
QA130-1390 CO2 laser engraving machine is desiged for cutting and engraving Plastic PP , plastic , ABS plastic , PVC , pipe
600 degree heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate argon shielded arc welding to make sure 20 years usage without deformation.
Questt laser systems make it simple to engrave on glass at the touch of a button.
Laser can do cutting, engraving, hollowing, punching for a variety of textile, fabrics, garment, leather, shoe, upholstery, carpet, automotive interior, tent, etc. Laser processing technology is more sophisticated, creative and unique.
Laser engraving can increase your productivity over traditional engraving methods.
Features
1. Production output increased by 40% compared with ordinary double head laser cutter.
2.Support for multiple data transmission mode, can be implemented offline or online
3. Good bean quality laser allows steadily and perpetual engraving.
4. Equipped with Rotary attachment for engraving cylindrical objects.
5. LCD screen CNC system supports multiple data transmission mode and users can operate in offline and online modes.
6. Leading pattern digitizing technolog
7. High engraving speed
8. 60-150W CO2 laser tube
Specification
| Type | QA80-1060 CO2 laser engraving cutting machine | QA130-1390 CO2 laser engraving cutting machine | |
| Top output power | 80W | 130W | |
| Max engraving scope | 1000mm/s or 60M/min | ||
| Resolution | 0.025mm | ||
| Precision | 0.025mm | ||
| Repetition precision | 0.1mm | ||
| Line width | 0.05mm | ||
| Cutting depth | 18mm (according to material) | 25mm (according to material) | |
| Working scope | 1000mm*600mm | 1300mm*900mm | |
| Transmission system | The longth of transmission material is infinite to Y direction | ||
| Software | Compatible HPGL statement, file format:PLT,BMP,DWG,AI, CDR,DST,DXF etc | ||
| Packing size | 1580*1060*1290mm | 2050*1420*1300mm | |
| Power supply | 220V/ 50Hz, 500W | ||
Materials
| Items | Engraving | Cutting |
|
Fabric Denim , leather , polyester , cotton , nylon , pongee , suede , jeans ,satin , corduroy , chiffon , tulle , fleece |
yes | yes |
| Wood Plywood , bamboo , veneer , mdf , polymeric materials | yes | yes |
|
Plastic PP , plastic , ABS plastic , PVC , pipe , polyester , sheet , insulation layer |
yes | yes |
| Organic Acrylic , rubber , resin , epoxy | yes | yes |
| Paper Packaging materials , tin foil , card , cardboard , chipboard | yes | yes |
| Composite Double color plate organic board | yes | yes |
|
Stone Ceramic , tile , marble ,granite , slate , gravestone , porcelain , tombstone , ceramic plate |
yes | no |
|
Other Nonmetals process materials , coating materials , plating materials , spraying materials |
yes |
no
|
Applications
Nonmetal Material such as leather,cloth,organic glass,acrylic plate,bamboo and wood,rubber,crystal,jade,ceramics,and artificial stone Wood,Marble stone, MDF,acrylic,plastic,plexiglass,crystal,rubber,fabric,paper and other non-metal materials etc..
Industry: advertising,clothing,shoes,decoration,furniture ,model making,artware.
Samples
Configuration
Machine overlook
5 Stars Reviews from Customers:
FAQ:
1 Q: What is the warranty of the laser engraving machines?
A: 1 years` warranty and whole life after-sale service.
2 Q: What is your payment terms?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service for little problems,
using online chatting tools like Whatsapp to talk with customers directly for all questions .
4 Q: How is the quality of the machines?
A: Germany high technoloy with good quality.
5 Q: How is the operation of the machine?
A: We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
We offer operation manual and videos, show you how to operate the machine.
