355nm UV Laser Marking Machine Desktop 3W For Automobile Components
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Power | 3 Watts | Laser Type | UV Laser Source |
|---|---|---|---|
| Wave Length | 355nm | Warranty | 1 Year And Permanent Services |
| Speed | 7 M/s | Service | Oversea Service Available |
| High Light | automatic marking machine,industrial marking machine |
||
Product Description
3W desktop UV laser marking machine permament service good perfomance
Descriptions
QUESTT QA-UV3B is a desktop UV laser marker for precision items.The machine has 4 wheels on the bottom, so it can move freely in you workshop.
The laser beam is much better than fiber laser, wavelength is also half of fiber laser.
The UV laser device adopt diode pump laser as the pump source, end-pump fiber coupling, high power output.
Features
1 Imported UV laser device with high quality
2 Excellent laser beams
3 Maintenance-free,no easy broken parts
4 Low running cost, save using cost.
5 Long lifetime of more than 100,000 Hours
6 Precison laser marking for slit items
7. Very little demand for using environment
8. High ratio photo translating for better finishing
Specification
| Model No. | QA-UV3B UV laser marking Machine |
| Laser type | UV laser |
| The average output power | 3W |
| Laser wavelength | 355nm |
| Beam Quality(M2) | 1 |
| Frequency | 20KHz-200KHz |
| Repetitive accuracy | 0.005mm |
| Min Linear Width | 0.01mm |
| Marking Depth | 0.01-0.2mm |
| Max Speed | 7000mm/s |
| Galvanometer | Yes |
| Lens | F-Theta Lens |
| Standard marking | 175*175mm |
| The optional scope of marking | 70×70mm / 110x110mm / 175×175mm / 220x220mm |
| Consumed power | <500W |
| File format | PLT, DXF, AI, DST, BMP, JPG, TIF,JPEG |
| Power Supply | 220V/50Hz/15A (110-120V Optional) |
| Cooling system | Air cooling |
| Grosss weight | 160 kgs |
Application
It can engrave and mark on the surface of many metal and non-metallic ,widely used in the marking of below area :industrial bearings,gear,various automobile components,hardware tools,aerospace components,IC chip,computer accessories,watch,electronic and communication products,wire and cable,,jewelry etc .
UV laser device

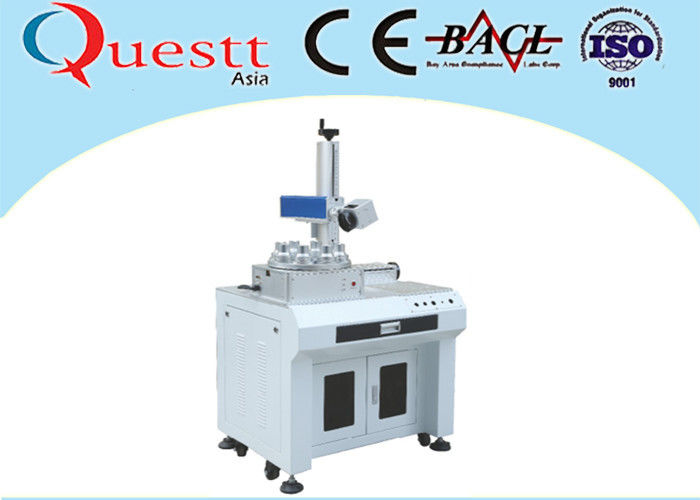

Machine outlook
Sample of ceramic
FAQ
1 Q: What is the warranty of the machine?
A: The warranty is 1-2 years, but permanent service.
2 Q: Are you a factory or trading company?
A: We are factory for 22 years. We have our won workshop.
3 Q: What is the service
A: We offer oversea service.
4 Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
5 Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send you operation manual along with the machine.
6 Q: How can I do if the machine goes wrong?
A: Any problems come out, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
