4KW Fiber transmit Laser Cladding Machine System for Roller motor shaft quenching
Description
DCAM Germany produced a laser dedicated CAM software, the CAM software for the cladding, heat treatment, welding and other ancillary items. To achieve 3-axis / 5-axis CNC laser process simulation, six-axis robot simulation.
Semiconductor lasers using imported German LASERLINE company LDF4000-60 type laser .LASERLINE laser by the optical module, semiconductor modules, power modules, water cooling module and control components. External work by an optical fiber connected to the optical head. Typical efficiency is ≥35%.
LASERLINE laser fiber-coupled semiconductor laser leader, its products are known for stable and reliable.
Laser beam mode is suitable for surface hardening process of multi-mode laser. Time band division road beamswitch two, with two 600 micron core diameter fiber connection 3D printing and laser cladding bald head.
Typical applications
automotive mold, mining machinery, coal machinery, petrochemical machinery, generator sets, rolling mill machinery and other large mechanical parts.
Specifications
| Item | Parameter |
| Laser | Diode |
| Output power range | 2-6kW |
| Power Stability | ±2% |
| Electro-optical conversion rate | ≥40% |
| Laser wavelength | 980nm±10nm |
| Wavelength output | CW |
| Input voltage | 380V 3phase five-wire @50Hz |
HGSF-2A type binoculars powder feeder is by quantitative powder feeding tray carrier gas transports the powder powder feeder. Powder Feeding height repeatability of ± 2%, capable of delivering a variety of particle size to meet the domestic generic cladding alloy powder. Powder feed tray speed setting range 0-100g, powder feed rate is continuously adjustable.
| Fiber Interface | LLK | |
| Collimator distance | 100 | mm |
| Focus Distance | 300 | mm |
| Wavelength | 940-1080 | nm |
| Max rate | 97 | % |
| Gas (proof) curtain | Yes | |
| Powder feeding nozzle | COAX 8 | IWS |
| Powder sending type | Concentric annular | |
| Powder sending Motivation | Gas Carry | |
| Cooling system | Water cooling | |
| Particle size | 20-90 | Um |
| Powder sending speed | 2-50 | g/min |
| Powder sendin | 1-2.5 | mm |
| Work distance | 13-25mm |
Configuration
| No | Name | Model | Quantity | remark |
| 1 | Laser Device | LDF4000-60 | 1 | |
| 3 | Laser Head | 1 | ||
| 4 | Powder Sending system | 1 | ||
| 5 | Rotary worktable | 1 | ||
| 6 | Positioner device | 1 | ||
| 7 | Robot | KR60-3 | 1 | |
| 8 | Main Controller | 1 | ||
| 9 | Robot controller | 1 | ||
| 10 | Soot absorption system | 1 |
Sample

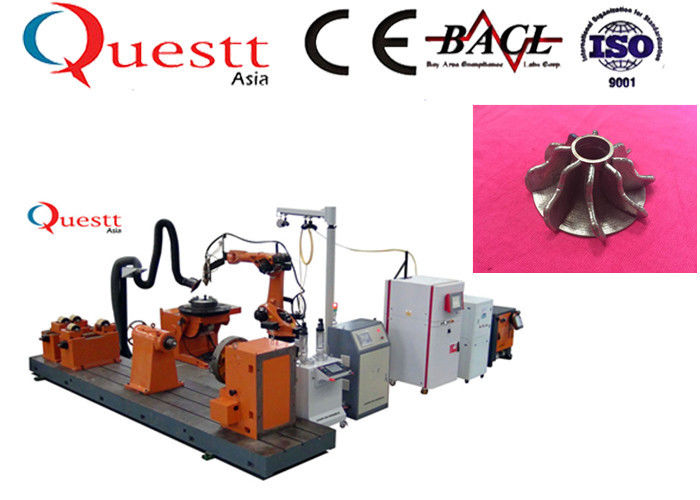

Machine outlook
