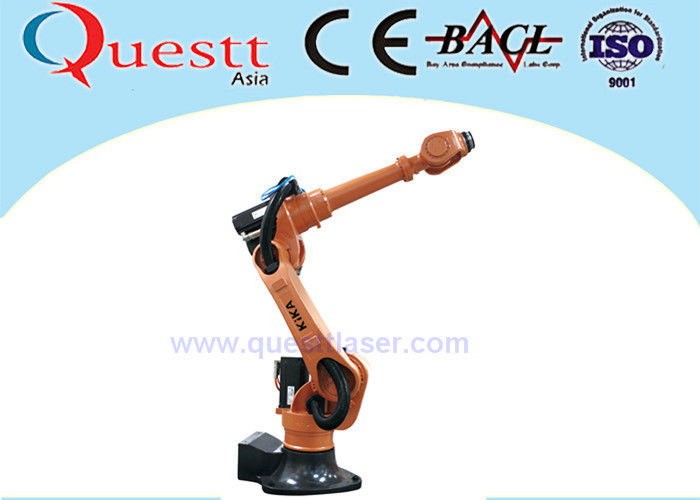

2591mm Arm Industrial Robot Automation 20kg Payload For Transporting Cutting

Product Details

Place of Origin: China

Brand Name: KiKA

Certification: ISO CE

Model Number: MR20

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negotiable

Packaging Details: Wooden case

Delivery Time: 15 - 30 days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 4000 sets each year

Get Best Price
Highlight:

robotic welding systems

,

industrial automation robotics

Application:
Transporting Welding
Arm Length:
2591mm
Axis:
6
Laser Type:
Fiber Laser
Warranty:
1 Year And Permanent Service
Payload:
16kg
Application:
Transporting Welding
Arm Length:
2591mm
Axis:
6
Laser Type:
Fiber Laser
Warranty:
1 Year And Permanent Service
Payload:
16kg
2591mm Arm Industrial Robot Automation 20kg Payload For Transporting Cutting

                Robotic Automation System 2591mm Arm 20kg payload for transporting cutting



Introduction



KiKA smart motion control for Six-axis robots provides enhanced performance for the Pro-Six including "fast and precise positioning" and "accurate continuous path (CP) control". The Pro-Six provides high productivity and stable product quality.





Advantage



1) High precision


2) Fast speed


3) Stable working


4) High efficiency


5) Wide application



6) Long lifetime



Specification



Model MR20
Payload 20 KGS
Max Working Radius 1588 mm
Arm length 2591 mm
Number of Axis 6





Max speed

Axis1 150 °/S
Axis2 120 °/S
Axis3 120 °/S
Axis4 360 °/S
Axis5 300 °/S
Axis6 450 °/S







Max Operation Area

Axis1 ±165°
Axis2 +130° ~ -65°
Axis3 +75° ~ -190°
Axis4 ±360°
Axis5 ±120°
Axis6 ±360°
Max moment Allowable Torque Axis5 186 NM
Axis6 98 NM
Weight 246kg
Position Repeat Accuracy ±0.05mm
Working temperature 0-40 degrees





Work Space

2591mm Arm Industrial Robot Automation 20kg Payload For Transporting Cutting 0

2591mm Arm Industrial Robot Automation 20kg Payload For Transporting Cutting 1





Application



Application:

KiKA COMPACT robots are ideal for small parts assembly , dispensing , lab automation , medical device assembly , machine tending , material handling , packaging, electronics and many other applications.





Used in factory

2591mm Arm Industrial Robot Automation 20kg Payload For Transporting Cutting 2



Robot overlook

2591mm Arm Industrial Robot Automation 20kg Payload For Transporting Cutting 3
