1645mm Arm Robotic Automation System CNC Control 6kg Capacity For Painting

China 1645mm Arm Robotic Automation System CNC Control 6kg Capacity For Painting supplier
1645mm Arm Robotic Automation System CNC Control 6kg Capacity For Painting supplier 1645mm Arm Robotic Automation System CNC Control 6kg Capacity For Painting supplier

Large Image :  1645mm Arm Robotic Automation System CNC Control 6kg Capacity For Painting

Product Details:

Place of Origin: China
Brand Name: KiKA
Certification: ISO CE
Model Number: MR6

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 10 - 30 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 6000 sets each year
Contact Now
Detailed Product Description
Application: Painting Etc Arm Length: 1645mm
Axis: 6 Axis Warranty: 12 Month And Permanent Service
Payload: 6kg Service: Oversea Service Available

       6 axis Robotic Automation System for painting 50kg capacity with 2.1M arm​



Introduction



KiKA robotic system is Our Own Brand robotic arms, which have high quality with reasonalbe price.



The adjustment method for handling light loads faster and heavy loads more steadily Expanded motion commands

compatible with those for SCARA robots The motion commands for Six-axis robots are based on

the easy-to-use motion commands for SCARA robots.


JUMP3 and JUMP3CP commands for arch motion similar to that of SCARA robots

ARC3 command for arcing the arm in three-dimensional space.





Advantage



1) High precision with CNC control system


2) Fast speed and good quality


3) Excellent stability


4) High efficiency for industry production


5) Widely used in many different kinds of industries.



6) Long lifetime with good service



Specification



Model MR6
Payload 6 KGS
Max Working Radius 1645 mm
Number of Axis 6





Max speed

Axis1 280 °/S
Axis2 240 °/S
Axis3 260 °/S
Axis4 360 °/S
Axis5 350 °/S
Axis6 360 °/S







Max Operation Area

Axis1 ±165°
Axis2 +40° ~ -190°
Axis3 +145° ~ -120°
Axis4 ±185°
Axis5 ±120°
Axis6 ±360°
Max moment Allowable Torque Axis5 50 NM
Axis6 24 NM
Weight 74kg
Position Repeatability 0.05mm
Working temperature 0-45 degrees



Application



Application:

Kika COMPACT robots are ideal for small parts assembly , dispensing , lab automation , medical device assembly , machine tending , material handling , packaging, electronics and many other applications.



This type is widely use in Painting industry.





Used in factory

1645mm Arm Robotic Automation System CNC Control 6kg Capacity For Painting

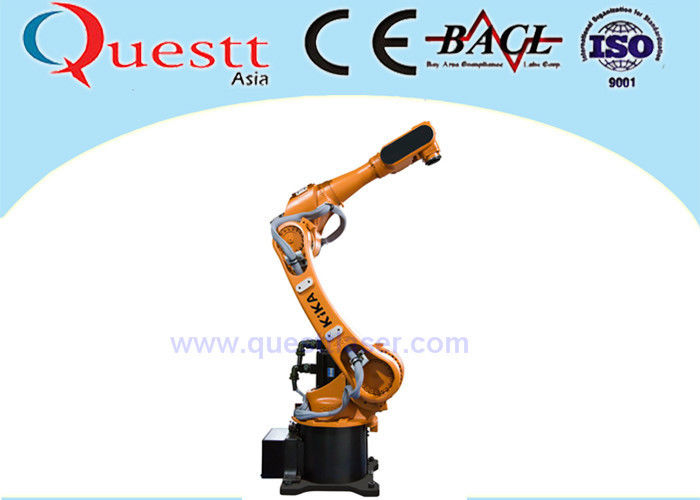

Robot overlook

1645mm Arm Robotic Automation System CNC Control 6kg Capacity For Painting
