50kg Wrist Payload Industrial Robotic Arm 3400mm , 6 Axis Industrial Welding Robots

China 50kg Wrist Payload Industrial Robotic Arm 3400mm , 6 Axis Industrial Welding Robots supplier
50kg Wrist Payload Industrial Robotic Arm 3400mm , 6 Axis Industrial Welding Robots supplier 50kg Wrist Payload Industrial Robotic Arm 3400mm , 6 Axis Industrial Welding Robots supplier

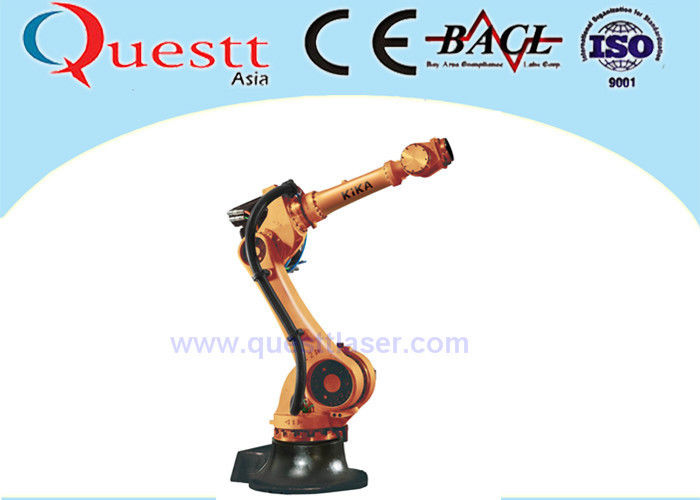

Large Image :  50kg Wrist Payload Industrial Robotic Arm 3400mm , 6 Axis Industrial Welding Robots

Product Details:

Place of Origin: China
Brand Name: KIKA
Certification: ISO CE
Model Number: MR50

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 10 - 30 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5000 sets each year
Contact Now
Detailed Product Description
Application: Painting Welding Cutting Etc. Arm Length: 3400mm
Axis: 6 Axis Warranty: 12 Month And Permanent Service
Payload: 50kg Service: Oversea Service Available

     50kg wrist payload robotic arm for transporting welding cutting radius 2124mm



Introduction



MR Series welding robots with compact, small size and light weight and good welding precision and reliability, are dedicated arc welding robots which has the welding to achieve a stable , highly accurate welding path , shorten cycle welding , pipe fittings and cables extend life. Meanwhile MR Series welding robots can do the welding for a flexible work in a small space, you can easily select the ground installation, mounting, flip, etc.





Advantage



1) High precision with CNC control system


2) Fast speed and good quality


3) Excellent stability


4) High efficiency for industry production


5) Widely used in many different kinds of industries.



6) Long lifetime with good service



Specification



Model MR50
Payload 50 KGS
Max Working Radius 2124 mm
Arm length 3400 mm
Number of Axis 6





Max speed

Axis1 140 °/S
Axis2 120 °/S
Axis3 120 °/S
Axis4 220 °/S
Axis5 320 °/S
Axis6 320 °/S







Max Operation Area

Axis1 ±165°
Axis2 +130° ~ -60°
Axis3 +75° ~ -195°
Axis4 ±360°
Axis5 ±120°
Axis6 ±360°
Max moment Allowable Torque Axis5 50 NM
Axis6 24 NM
Weight 510kg
Position Repeatability 0.25mm
Working temperature 0-40 ℃



Structure drawings

Working Space

50kg Wrist Payload Industrial Robotic Arm 3400mm , 6 Axis Industrial Welding Robots

50kg Wrist Payload Industrial Robotic Arm 3400mm , 6 Axis Industrial Welding Robots



Flange Interface Dimension

50kg Wrist Payload Industrial Robotic Arm 3400mm , 6 Axis Industrial Welding Robots





Forearm External Interface Dimension

50kg Wrist Payload Industrial Robotic Arm 3400mm , 6 Axis Industrial Welding Robots



Base

50kg Wrist Payload Industrial Robotic Arm 3400mm , 6 Axis Industrial Welding Robots



Application



Cutting, polishing, deburring, cleaning, polishing, water cutting and processing applications





Used in factory

50kg Wrist Payload Industrial Robotic Arm 3400mm , 6 Axis Industrial Welding Robots



Robot Overview

50kg Wrist Payload Industrial Robotic Arm 3400mm , 6 Axis Industrial Welding Robots
