6 Axis Industrial Robotics Automation , Arc Welding Robot 6kg Wrist Payload

Product Details

Place of Origin: China

Brand Name: KiKA

Certification: ISO CE

Model Number: MR1400

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negotiable

Packaging Details: Wooden case

Delivery Time: 10 - 30 days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 6000 sets each year

Get Best Price
Highlight:

robotic welding systems

,

industrial automation robotics

Application:
Painting Etc
Arm Length:
1645mm
Axis:
6 Axis
Warranty:
12 Month And Permanent Service
Payload:
6kg
Service:
Oversea Service Available
Application:
Painting Etc
Arm Length:
1645mm
Axis:
6 Axis
Warranty:
12 Month And Permanent Service
Payload:
6kg
Service:
Oversea Service Available
6 Axis Industrial Robotics Automation , Arc Welding Robot 6kg Wrist Payload

       6 axis Robotic Automation System for painting 50kg capacity with 2.1M arm​



Introduction



KiKA robotic system MR1400 model is especially designed for Mig/Mag welding, which has high efficiency.



This series robot Small size light weight, is dedicated to arc welding robot, can realize the stable welding, obtain high precision welding path, shorten the welding cycle, extend the life of the pipe and cable At the same time SA series welding robot can flexible welding operations within the narrow space, can easily choose the ground installation mount inversion





Advantage



1. stability and improve quality, ensure its homogeneity;
2. improve productivity, available 24 hours a day continuous production;
3. improving labor conditions, long-term work in a hazardous environment;
4. reduce the operation technique requirements;
5. reduce product modification replacement cycles, reduce investment in appropriate equipment;
6. realization of welding automation of batch products;
7. save floor space;



Specification

Download for KiKA welding robotic arm.pdf



Model MR1400
Payload 6 KGS
Max Working Radius 1405 mm
Arm Length 2391 mm
Number of Axis 6





Max speed

Axis1 150 °/S
Axis2 150 °/S
Axis3 160 °/S
Axis4 360 °/S
Axis5 320 °/S
Axis6 360 °/S







Max Operation Area

Axis1 ±165°
Axis2 +155° ~ -90°
Axis3 +70° ~ -200°
Axis4 ±170°
Axis5 ±120°
Axis6 ±360°
Max moment Allowable Torque Axis5 54 NM
Axis6 23 NM
Weight 140kg
Position Repeatability 0.05mm
Working temperature 0-45 ℃



Application



Application:

Kika COMPACT robots are ideal for small parts assembly , dispensing , lab automation , medical device assembly , machine tending , material handling , packaging, electronics and many other applications.



This type is specially designed for Mig/Mag weldting industry.



Drawings



Working Space

6 Axis Industrial Robotics Automation , Arc Welding Robot 6kg Wrist Payload 0

6 Axis Industrial Robotics Automation , Arc Welding Robot 6kg Wrist Payload 1

Flange Interface Dimension

6 Axis Industrial Robotics Automation , Arc Welding Robot 6kg Wrist Payload 2

Forearm External Interface Dimension

6 Axis Industrial Robotics Automation , Arc Welding Robot 6kg Wrist Payload 3

Base

6 Axis Industrial Robotics Automation , Arc Welding Robot 6kg Wrist Payload 4

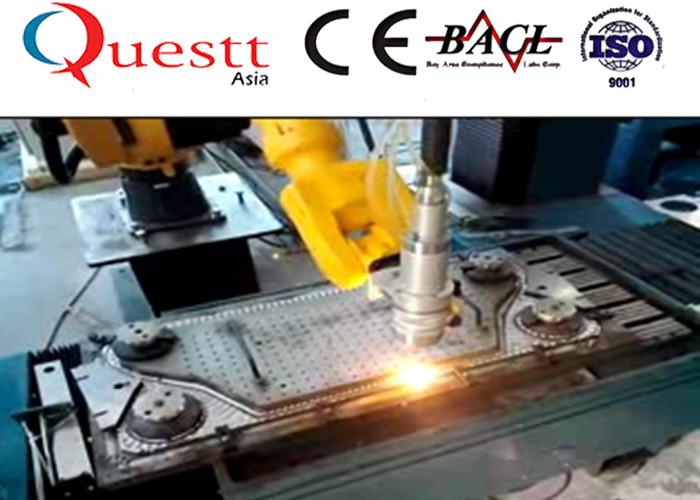

Used in factory



6 Axis Industrial Robotics Automation , Arc Welding Robot 6kg Wrist Payload 5

Robot overlook

6 Axis Industrial Robotics Automation , Arc Welding Robot 6kg Wrist Payload 6
