Handheld Fiber Laser Cleaning Rust Machine For Paint Coating Removal dust

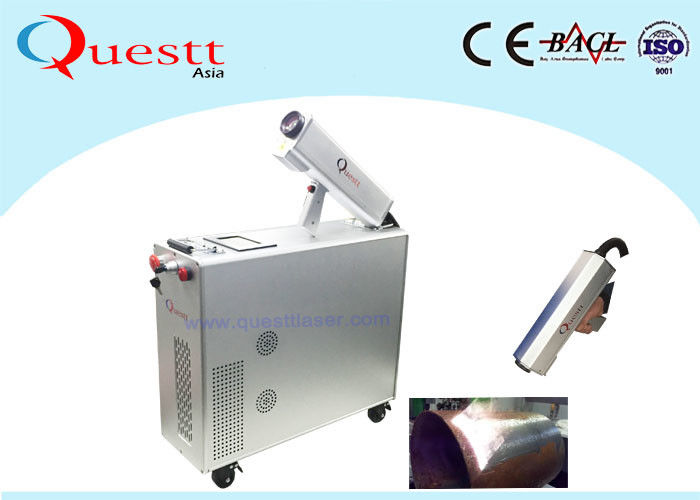

QA-LC100 Fiber Laser cleaning Machine adopts the advanced fiber laser source, laser optical scanners and control system to meet the requirements of surface cleaning process, like rust metal, painting coating products etc.
The laser cleaning system is a new generation of industrial surface cleaning high-tech products.
We have 50W,70W,100W,200W,500W and even higher power up to1000W .
For the machine outlook, we have sealed bench top, also have hand held ones to choose. You can hold the laser head in hand, and remove the dust in any place or corner you like.
1. Laser cleaning has no grinding, non-contact, no thermal effect
2. Rapid, clean and accurate cleaning, removal of surface coatings, coatings, oxide;
3. No damage to substrate of the products;
4. High cleaning precision, strong controllability;
5. Can be used for a long time, low operating costs;
6. The device can realize automatic operation and simple operation;
7. Environmentally friendly, no supplies, no two pollution
8. It is suitable for various materials, etc.
QA-LC100 Laser Cleaning Machine for rust removal.p...
Introduction of Laser Cleaning Technology A.pdf
|Fiber cable L||3 M||3 M||3 M||15M|
|Pulse Energy||1.5 mJ||1.5 mJ||1.5-10 mJ||50 mJ|
|Clean speed||≤8 M²/Hour||≤12 M²/Hour||≤20 M²/Hour||≤60 M²/Hour|
|Cooling||Air cooling||Air cooling||Air cooling||Water cooling|
|Temperature||5-40 ℃||5-40 ℃||5-40 ℃||5-40 ℃|
|Power||<1 KW||< 2KW||< 4KW||< 6KW|
|Voltage||Single Phase 220V, 50HZ||Single Phase 220V, 50HZ||Single Phase 220V, 50HZ||Single Phase 220V, 50HZ|
Laser beam can produce at least 3 functions:
1 in the solid surface to produce a mechanical resonance phenomenon, is the surface of the dirt layer or condensation debris;
2 the surface dirt layer is heated and expanded, so as to overcome the adsorption force of the basic material to the dirt particles and the surface of the object is separated from the surface of the object;
3 instant to make the dirt molecules evaporate, gasification or decomposition
Comparison with Traditional Clean Methods:
|Comparison||Laser Cleaning||Chemical Cleaning||Mechanical Grinding||Dry ice cleaning|
|Washing Method||non-contact cleaning||contact cleaning||Abrasive contact cleaning||non-contact cleaning|
|Harm to base material||None||Yes||Yes||None|
|Consumable||Power||Chemical Detergent||Abrasive paper, grinder, abrasive stone||Dry Ice|
|Washing result||Very good, very clear||Medium, uneven||Medium, uneven||Good, uneven|
|Precision Washing||Accuracy controllable. High precision||Uncontrollable, low precision.||Uncontrollable, medium precision.||Uncontrollable, poor precision.|
|Safety/Environment||No pollution||Chemical pollution||Dust pollution||No pollution|
|Operation||Easy to operate, portable or automation optional.||Complicated process, higher technical requirement of the operator. Pollution prevention measures required.||Need more time & manpower. Pollution prevention measures required.||Easy to operate, portable or automatic.|
|Investment||High investment on machine. But no consumable, low maintenance cost||Low investment on machine. But expensive consumables||Medium investment on machine. High man-power cost.||Medium investment on machine. High consumable cost.|
It is widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc
1 Q: What is the warranty ?
A: The warranty is 2 year, but we offer whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .
4 Q: How is the quality of the machine?
A: Germany high technoloy with good quality.
5 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
