Product Details
Place of Origin: China
Brand Name: Questt
Certification: CE ISO
Model Number: QA-UV3
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Exporting Wood Cases
Delivery Time: 18 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1990 Sets/Year
Laser Wavelength: |
355nm |
Laser Power: |
3Watt |
Application: |
Engraving And Marking |
Certificate: |
CE |
Service: |
Online And Overseas Service |
Gurranty: |
1 Year |
Laser Wavelength: |
355nm |
Laser Power: |
3Watt |
Application: |
Engraving And Marking |
Certificate: |
CE |
Service: |
Online And Overseas Service |
Gurranty: |
1 Year |

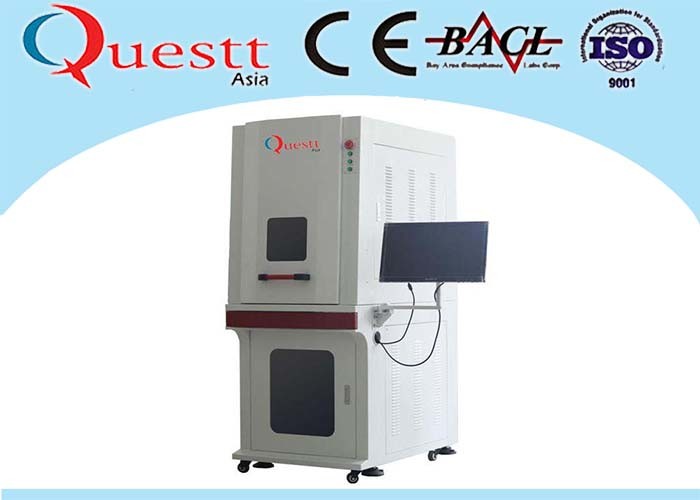

3W UV Laser Etching Machine printing 355nm wavelength Precise laser beam
Descriptions
QA-UV3 CNC Laser Etching Machine is a 3W UV laser marking machine for precision precessing.The UV laser is suitable for being absorbed by many kinds of materials.
The wavelength is 355nm, so it also can do 3D laser engraving on crystal and glass like green laser. The marking and engraving is much more precision than green laser or fiber laser.
3W UV laser can be widely used in PCB, BGA, FCB, IC, computer fittings, industry bearing, timekeeper, electronic device, communicate device, space and aviation device, automobile parts, home appliances, hardware, electrical wire and cable, clothing, food packing, jewelry, cigarette etc.
24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production. We can also equip this laser machine on the auto producing lines.
Feature
1 Long lifetime for using
2 very high quality laser beam for precision marking
3 High quality focus lens
4 3W high quality laser source
5 Exposing graphics can be promptly and freely amended
6 high ratio photo translate system
Specification
| Model No. | QA-UV3 |
| Laser type | UV laser |
| The average output power | 3W |
| Laser wavelength | 355nm |
| Beam Quality(M2) | 1 |
| Frequency | 20KHz-200KHz |
| Repetitive accuracy | 0.005mm |
| Min Linear Width | 0.01mm |
| Marking Depth | 0.01-0.2mm |
| Max Speed | 7000mm/s |
| Working area | 75x75mm 110x110mm 175x175mm |
| Consumed power | <500W |
| File format | PLT, DXF, AI, DST, BMP, JPG, TIF |
| Power Supply | 220V/50Hz/15A (110-120V Optional) |
| Cooling system | Water cooling |
| Grosss weight | 220kgs |
Application
Application field: Marking text, barcodes, and graphics/pictures on PC boards, polymers, plastics, metals, food packaging, clothing, jewelry, ICs, etc. printing all kinds of signs on surface of all kinds of products.
Material areas: all the material which fiber laser can not do, or finish not good. Most non metal materials.
FAQ
1 Q: What is the warranty ?
A: The warranty is 2 year, but we offer whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .
4 Q: How is the quality of the machine?
A: Germany high technoloy with good quality.
5 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
Machine outlook
