Oxide / Oil / Painting / Rust Remover Laser Machine

Oxide / Oil / Painting / Rust Remover Laser Machine

  • High Light

    laser rust removal equipment

    ,

    laser cleaning machine

  • Laser Power
    100W
  • Certificate
    CE Certifice
  • Application
    Surface Removal
  • Laser Source
    Fiber Laser
  • Service
    Online And Overseas Service
  • Speed
    7000mm/min
  • Place of Origin
    Wuhan, China
  • Brand Name
    QUESTT
  • Certification
    ISO CE
  • Model Number
    QA-LC100
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Standard Exporting Wooden Box
  • Delivery Time
    22 days
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    2200 sets per year

Oxide / Oil / Painting / Rust Remover Laser Machine





Oxide / Oil Painting Fiber Rust Remover Machine 20khz - 100khz Low Noise

Oxide / Oil / Painting / Rust Remover Laser Machine 0

Description:

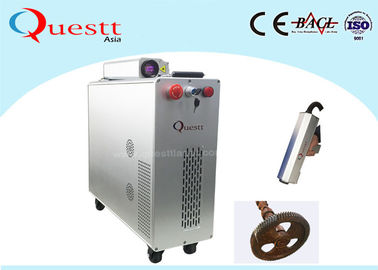

QA-LC100 is a 100W fiber laser cleaning machine for removing oil coating, painting coating, oxide coating, glue and rust.

Laser derusting using laser high energy, high frequency, high power characteristics, the high energy instantly deposited in a small area, the use of high-temperature oxidation of the oxide layer.





Contaminant:



The bonding force between the contaminant and the surface is mainly covalent bond, double dipole, capillary action, hydrogen bond, adsorption force and electrostatic force. Among them, capillary force, adsorption force and electrostatic force (Figure below) are the most difficult to destroy.
Note: capillary force from a thin liquid layer (such as atmospheric humidity) in the particle and the surface of the primary layer and the small gap between the cohesion; adsorption force is the main adhesion of micron pollutants



Product features:
Rapid, clean, accurate cleaning, removal of surface coatings and contaminant;
No damage to the substrate processing equipment;
Can be used for a long time, low operation cost;
Automatic operation of equipment;

Oxide / Oil / Painting / Rust Remover Laser Machine 1



Specifications:

Introduction of Laser Cleaning Technology A.pdf

QA-LC100 Laser Cleaning Machine for rust removal.p...

Model QA-LC60 QA-LC100 QA-LC200 QA-LC500
Laser source Fiber Fiber Fiber Fiber
Laser Power 60W 100W 200W 500W
Fiber cable L 3 M 3 M 3 M 15M
Pulse Energy 1.5 mJ 1.5 mJ 1.5-10 mJ 50 mJ
Wavelength 1060nm 1060nm 1060nm 1060nm
Frequency 50-500KHz 1-1000KHz 1-2000KHz 2-50KHz
Clean speed ≤8 M²/Hour ≤12 M²/Hour ≤20 M²/Hour ≤60 M²/Hour
Cooling Air cooling Air cooling Air cooling Water cooling
Dimension 450*300*500 650*350*560 800*450*1000 900*800*1300
Weight 30Kg 36Kg 90Kg 300Kg
Beam width 10-110mm 10-110mm 10-110mm 10-110mm
Optional Manual Manual Manual Manual
Temperature 5-40 ℃ 5-40 ℃ 5-40 ℃ 5-40 ℃
Power <1 KW < 2KW < 4KW < 6KW
Voltage Single Phase 220V, 50HZ Single Phase 220V, 50HZ Single Phase 220V, 50HZ Single Phase 220V, 50HZ



Application scope:



Laser cleaning technology can be used on liquid products, solid products, historical relic, easy burned or broken products



Industries: air plane and ship metal surface derusting , paint removal; building surface dirt cleaning; chip surface cleaning of micro electricy




Sample details:

Oxide / Oil / Painting / Rust Remover Laser Machine 2





FAQ



1 Q: What is the warranty ?

A: The warranty is 2 year, but we offer whole life after-sale service.



2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc.



3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .



4 Q: How is the quality of the machine?

A: Germany high technoloy with good quality.



5 Q: How is the operation of the machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
