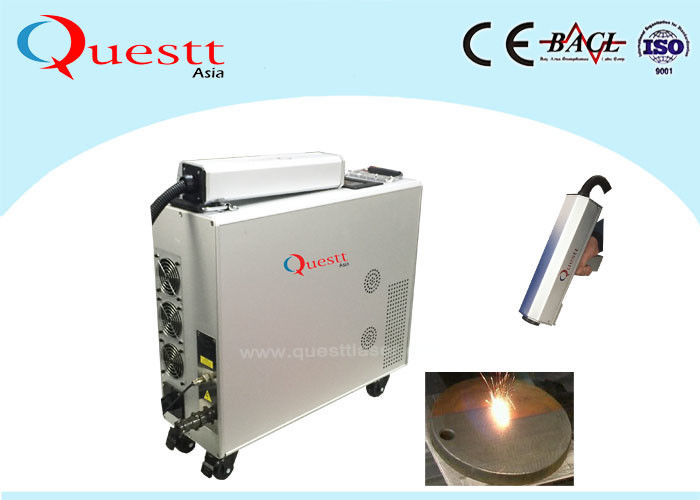

Automatic Derusting 100w Fiber Laser Paint Remover Machine Handheld
QA-LC100 is a 100W high power fiber laser clean machine for removing rust on metal surface of big roller, mold and engine etc.
Laser derusting using laser high energy, high frequency, high power characteristics, the high energy instantly deposited in a small area, the use of high-temperature oxidation of the oxide layer.
1. Rapid, clean, accurate cleaning, removal of surface coatings and contaminant;
2. No damage to the substrate processing equipment;
3. Can be used for a long time, low operation cost;
4. Automatic operation of equipment;
5. laser decontamination equipment can be used for a long time;
6. laser cleaning technology is a kind of "green" cleaning process, the elimination of waste is solid powder, small size, easy to store, basically no pollution to the
|Fiber cable L||3 M||3 M||3 M||15M|
|Pulse Energy||1.5 mJ||1.5 mJ||1.5-10 mJ||50 mJ|
|Clean speed||≤8 M²/Hour||≤12 M²/Hour||≤20 M²/Hour||≤60 M²/Hour|
|Cooling||Air cooling||Air cooling||Air cooling||Water cooling|
|Temperature||5-40 ℃||5-40 ℃||5-40 ℃||5-40 ℃|
|Power||<1 KW||< 2KW||< 4KW||< 6KW|
|Voltage||Single Phase 220V, 50HZ||Single Phase 220V, 50HZ||Single Phase 220V, 50HZ||Single Phase 220V, 50HZ|
1 in the solid surface to produce a mechanical resonance phenomenon, is the surface of the dirt layer or condensation debris;
2 the surface dirt layer is heated and expanded, so as to overcome the adsorption force of the basic material to the dirt particles and the surface of the object is separated from the surface of the object;
3 instant to make the dirt molecules evaporate, gasification or decomposition
Comparison with Traditional Clean Methods:
|Comparison||Laser Cleaning||Chemical Cleaning||Mechanical Grinding||Dry ice cleaning|
|Washing Method||non-contact cleaning||contact cleaning||Abrasive contact cleaning||non-contact cleaning|
|Harm to base material||None||Yes||Yes||None|
|Consumable||Power||Chemical Detergent||Abrasive paper, grinder, abrasive stone||Dry Ice|
|Washing result||Very good, very clear||Medium, uneven||Medium, uneven||Good, uneven|
|Precision Washing||Accuracy controllable. High precision||Uncontrollable, low precision.||Uncontrollable, medium precision.||Uncontrollable, poor precision.|
|Safety/Environment||No pollution||Chemical pollution||Dust pollution||No pollution|
|Operation||Easy to operate, portable or automation optional.||Complicated process, higher technical requirement of the operator. Pollution prevention measures required.||Need more time & manpower. Pollution prevention measures required.||Easy to operate, portable or automatic.|
|Investment||High investment on machine. But no consumable, low maintenance cost||Low investment on machine. But expensive consumables||Medium investment on machine. High man-power cost.||Medium investment on machine. High consumable cost.|
Metal workpiece laser derusting, degreasing, laser paint removal, laser removal of zinc and film, laser coating removal, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc.
Presumably, as the demands of the market increasing , the applications of laser cleaning technolog will be more widely.
1 Q: What is the warranty ?
A: The warranty is 2 years, but we offer whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service.
4 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training.
