Bluetooth wireless Laser Rust Removal Machine , Oxide Coating Laser Optic Rust Removal

Place of Origin Wuhan, China
Brand Name QUESTT
Certification ISO CE
Model Number QA-LC200
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard Exporting Wooden Box
Delivery Time 22 days
Payment Terms T/T, L/C, Western Union
Supply Ability 1800 sets per year

Contact me for free samples and coupons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 200W Application Laser Rust Removal
Laser Source Fiber Laser Service Online And Overseas Service Is Available
Warranty 24 Months Speed 7000 Mm/min
High Light

laser rust removal equipment

,

laser cleaning machine

Leave a Message
Product Description


                     Phone APP Bluetooth Laser Rust Removal Machine , Oxide Coating Laser Optic Rust Removal

Description:
There is oxidation and corrosion when metals meet oxygen and water vapor in air. It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted. So rust removal is extremely important. Laser rust removal uses not chemical agents or mechanical polishing, so it is faster and safer. It has advantages of higher efficiency, high automation and no subsequent processing work, lower labor intensity and lower cost.

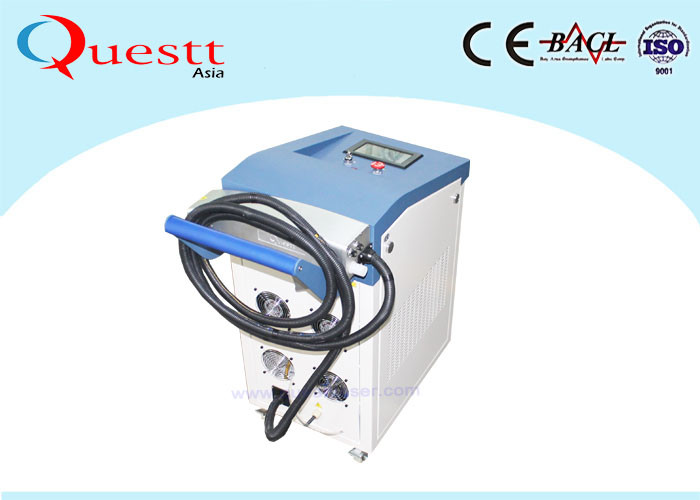

QA-LC200 is a 200W high power fiber laser clean machine for rust removal.
Laser rust removal using laser high energy, high frequency, high power characteristics, the high energy instantly deposited in a small area, the use of high-temperature oxidation of the oxide layer.
 Bluetooth wireless Laser Rust Removal Machine , Oxide Coating Laser Optic Rust Removal 0
Product features:
1. Rapid, clean, accurate cleaning;
2. No damage to the substrate processing equipment;
3. Can be used for a long time, low operation cost;
4. Automatic operation of equipment;
5. laser decontamination equipment can be used for a long time;
6. no pollution

Comparison with Traditional Clean Methods:

ComparisonLaser CleaningChemical CleaningMechanical GrindingDry ice cleaning
Methodnon-contact cleaningcontact cleaningAbrasive contact cleaningnon-contact cleaning
Harm to base materialNoneYesYesNone
EfficiencyHighLowLowMid.
ConsumablePowerChemical DetergentAbrasive paper, grinder, abrasive stoneDry Ice
Washing resultVery good, very clearMedium, unevenMedium, unevenGood, uneven
Precision WashingAccuracy controllable. High precisionUncontrollable, low precision.Uncontrollable, medium precision.Uncontrollable, poor precision.
Safety/EnvironmentNo pollutionChemical pollutionDust pollutionNo pollution
OperationsEasy to operate, portable or automation optional.Complicated process, higher technical requirement of the operator. Pollution prevention measures required.Need more time & manpower. Pollution prevention measures required.Easy to operate, portable or automatic.
InvestmentsHigh investment on machine. But no consumable, low maintenance costLow investment on machine. But expensive consumablesMedium investment on machine. High man-power cost.Medium investment on machine. High consumable cost.


Specifications:
QA-LC200 Laser Cleaning Machine for rust removal.p...
Introduction Laser Cleaning Machine Detailed.pdf


ModelQA-LC50QA-LC60QA-LC100QA-LC200QA-LC500
Laser sourceFiberFiberFiberFiberFiber
Laser Power50W60W100W200W500W
Laser Wavelength1060nm1060nm1060nm1060nm1064nm
Pulse frequency20-100KHz20-100KHz20-100KHz20-100KHz2-50kHZ
CoolingAirAirAir air Water chiller
Dimension760*780*790mm800*450*1000mm1100x600x1100mm
Weight30Kg40Kg40Kg90Kg230kgs
Scanner width10-110mm10-110mm10-110mm10-170mm10-170mm
OptionalManual/Automation/Customers
Temperature5-40 ℃5-40 ℃5-40 ℃5-40 ℃5-40℃


Bluetooth wireless Laser Rust Removal Machine , Oxide Coating Laser Optic Rust Removal 1
Contaminant:
The bonding force between the contaminant and the surface is mainly covalent bond, double dipole, capillary action, hydrogen bond, adsorption force and electrostatic force. Among them, capillary force, adsorption force and electrostatic force (Figure 1) are the most difficult to destroy.
Note: capillary force from a thin liquid layer (such as atmospheric humidity) in the particle and the surface of the primary layer and the small gap between the cohesion; adsorption force is the main adhesion of micron pollutants


Principle:
1 in the solid surface to produce a mechanical resonance phenomenon, is the surface of the dirt layer or condensation debris;
2 the surface dirt layer is heated and expanded, so as to overcome the adsorption force of the basic material to the dirt particles and the surface of the object is separated from the surface of the object;
3 instant to make the dirt molecules evaporate, gasification or decomposition

Application field:

Metal workpiece laser derusting, degreasing, laser paint removal, laser removal of zinc and film, laser coating removal, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc.


Sample details:
Bluetooth wireless Laser Rust Removal Machine , Oxide Coating Laser Optic Rust Removal 2

FAQ

1 Q: What is the warranty ?
A: The warranty is 2 years, but we offer whole life after-sale service.

2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.

3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service.

4 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training.
