0.8 - 1.2Mpa Solar Panel Inspection Machine Semi Auto Operation Solar Cell Testing Machine

0.8 - 1.2Mpa Solar Panel Inspection Machine Semi Auto Operation Solar Cell Testing Machine

  • High Light

    automatic wire stripper

    ,

    industrial wire stripping machine

  • Color
    White
  • Power Supply
    380V
  • Time
    2 - 4 Mins
  • Air Pressure
    0.8-1.2 Mpa
  • Pumping Speed
    70 L/S
  • Warranty
    1 Year
  • Place of Origin
    China
  • Brand Name
    Questt
  • Certification
    ISO
  • Model Number
    QA - ST1000
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiable
  • Packaging Details
    wooden boxes
  • Delivery Time
    10 - 30 days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    800 pcs each year

0.8 - 1.2Mpa Solar Panel Inspection Machine Semi Auto Operation Solar Cell Testing Machine

Solar Panel inspection machine semi-auto operation high quality



Overview



0.8 - 1.2Mpa Visual Inspection Machine Semi Auto Operation Solar Cell Testing Machine

The equipment is specially used in the filtration of solar energy mono-crystalline silicon and the poly-crystalline silicon cell pieces. Through stimulates the solar spectrum lamp-house, carries on the testing and surveys to the cell module related electrical parameter, according to the measurement result classifies the cell piece.



It has unique apparatus of modifying, to input the compensate parameter, it will carries on automatically
/ manual temperature compensation and compensate with the light intensity, and automatically
measures and modifies the temperature. Based on the Windows operation surface, and humanized-design testing software, it records and displays test curve (I-V curve, P curve) and the test parameter (Voc, Isc, Pm, Im, FF, EFF), the test of sequence number is automatically produced and preserved to the assigned folder.





Features

1. The entire stainless steel chamber avoids welding deformation of the stainless steel and the general steel. The high quality welding of argon reduces vacuum system leaking rate. The use of calibration thermo-couple gauge made no false vacuum reading.



2. The strengthened design and the high smoothness avoid the laminated fragment and shift. Hot working design of the computer auxiliary reduces the temperature unevenness on controlling of the false muti-spots. The close heat conduction coupling avoids temperature fluctuation on the laminated process.



3. Optimized PID control improves the accuracy of temperature control. The fabric strengthened offset plate extends the using time and reduces the working costs. The program-controlled design levels up the flexibility.



Parameters



Parameters
Power 35KW Power Supply AC380V Triphase four Wires
Heating Mode Oil Heating Temperature Control PLC Intelligent Control
Laminating Time 2-4 Minutes Environmental Temperature 0℃-50℃
Temperature Precision ±1℃ Temperature Uniformity ±3℃
Temperature Range 30℃-180℃ Module Height 20mm
Pumping Speed 70 L/S Air Supply 0.8-1.2MPa



Application



The entire stainless steel chamber avoids welding deformation of the stainless steel and the general steel.
The high quality welding of argon reduces vacuum system leaking rate. Hot working design of the computer auxiliary reduces the temperature unevenness on controlling of the false muti-spots. The close heat conduction coupling avoids temperature fluctuation on the laminated process



Samples

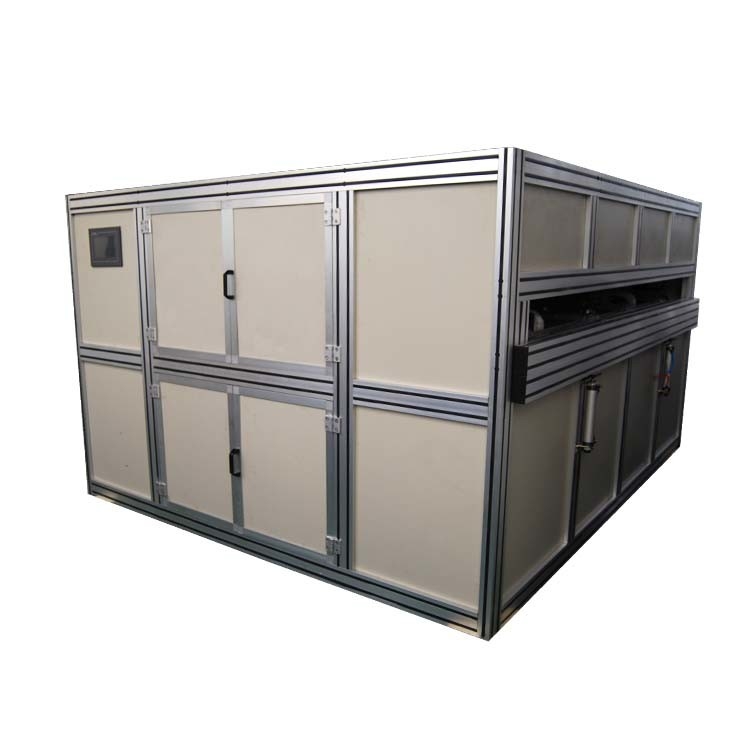

0.8 - 1.2Mpa Solar Panel Inspection Machine Semi Auto Operation Solar Cell Testing Machine 0



Machine overview

0.8 - 1.2Mpa Solar Panel Inspection Machine Semi Auto Operation Solar Cell Testing Machine 1
