Benchtop Automatic Laser Wire Stripping Machine 30W YAG Cable Stripping Equipment
Overview
As a result that mechanical stripping might cause an extrusion and cutting force to wire core due to jaw contact, and such damage to the wire core.
If the jaw does not touch metal wire, the insulation layer cant be cut cleanly. Regarding multi-layer composed of rayon knitted leather insulated wire, mechanical stripping is more difficult to meet the requirements.
Regarding multi-layer composed of rayon knitted leather insulated wire, mechanical stripping is more difficult to meet the requirements.
Advantage
1. With high speedy for wire processing.
2. It supports several operation (or processing) files and procedures setting and saving.
3. After laser stripping, the wire tension is stronger than it is processed by thermal desorber.
4. After laser stripping, the inside and outside of the insulation layer has no incision, no irregular behavior.
5. Before and after laser stripping, the insulation of the wire keeps unchanged.
Parametes
| Model | QA-C30-2H | QA-FL20-4H |
| Laser | CO2 Laser Source | Fiber Laser Source |
| Head | 2 | 4 |
| Laser power | 30W | 20W |
| Wavelength | 10.6μm | 1064nm |
| Power adjustment | 0～100% | 0～100% |
| Cutting speed Adjustment | 0～300mm/s | 0～300mm/s |
| Position preicision | ±0.03mm | ±0.03mm |
| Cooling System | Air cooled | Air cooled |
| Power | 220(110)V/50(60)Hz/ 1.5kVA | 220(110)V/50(60)Hz/ 1.5kVA |
| Dimension | 1140×665×1115 mm | 1140×665×1115 mm |
| Cost | 15,000.00 | 49,800.00 |
Applications
Fine wires stripping off, ability to process the lines, dropout lines, cables simultaneously, single wire, twisted pairs, multilayer lines etc.
Sample

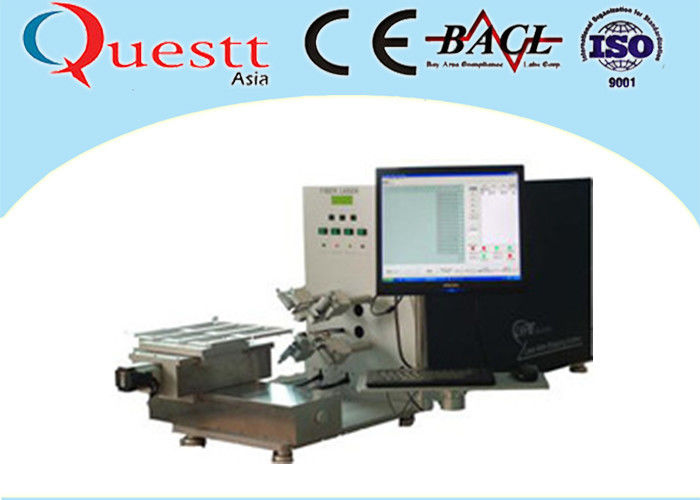

Machine overview
Cable stripping process
|
|
No. |
Sequence |
Equipment and Tool |
Time cost |
Worker |
AUTOMATION |
|
1 |
Arrange the cables |
Human beings |
|
4-5 |
We can supply the complete automation production line especially for your request. |
|
|
2 |
Jacket strip |
Twin head CO2 laser striper |
0.5s/cable |
1 |
||
|
3 |
Jacket remove |
Remover |
10s/bin |
1 |
||
|
4 |
Shield cutting |
Four head Fiber laser Striper |
20s/3bin |
1 |
||
|
5 |
Shield brush |
Brush the shield |
10s/bin |
1 |
||
|
6 |
Insulation cutting |
Twin Head CO2 laser striper |
15s/3bin |
1 |
||
|
7 |
Insulation remove |
Remover |
5s/bin |
1 |
||
|
8 |
Inner conductor cutting |
Four head fiber laser |
1s/bin |
1 |
||
|
9 |
1-10 repeat |
|
|
|
Video
