YAG Fiber CO2 Laser Wire Stripping Machine 30W 50W 100W

YAG Fiber CO2 Laser Wire Stripping Machine 30W 50W 100W

  • High Light

    CO2 Laser Wire Stripping Machine

    ,

    YAG Fiber Laser Wire Stripping Machine

    ,

    CO2 Laser Wire Striper Machine 30W

  • Laser Type
    YAG Laser
  • Laser Power
    30W
  • Wavelength
    1064nm
  • Cooling System
    Air Cooled
  • Service
    Offer Oversea Service
  • Warranty
    1 Year And Permanent Service
  • Place of Origin
    China
  • Brand Name
    Questt
  • Certification
    ISO
  • Model Number
    QA-SP30T
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    wooden case
  • Delivery Time
    5-18 working days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability
    3300 sets each year

YAG Fiber CO2 Laser Wire Stripping Machine 30W 50W 100W

  Laser Wire Stripping Machine 30W 50W 100W YAG Fiber CO2 Lazer



Overview



It is a new application to use laser for wire stripping and cutting. The traditional processing for wire stripping is realized by wire stripping pliers or a knife. As a result that mechanical stripping might cause an extrusion and cutting force to wire core due to jaw contact, and such damage to the wire core. If the jaw does not touch metal wire, the insulation layer cant be cut cleanly. Regarding multi-layer composed of rayon knitted leather insulated wire, mechanical stripping is more difficult to meet the requirements.



Advantages



1. Its combined twisting and crimping machine togther , and it save the time for transport-
ation and conraposition

2. Its adopted imported servo motor and high precision ball screw, and the loading accur-
acy reach 0.01mm, it can accurately locate position of Twisting and Crimping High performance PLC controller with complete function,simple and convenient operation

3. It can assembled with our four head high precision laser stripper and special harness processing technology, it will eliminate the traditional wetting process and directly crimping the harness and save a lot of time
4. Its more suitable for precision line;


ParametesPRODUCT PARAMETERS

Model QA-C30-2H QA-FL20-4H
Laser CO2 Laser Source Fiber Laser Source
Head 2 4
Laser power 30W 20W
Wavelength 10.6μm 1064nm
Power adjustment 0~100% 0~100%
Cutting speed Adjustment 0~300mm/s 0~300mm/s
Position preicision ±0.03mm ±0.03mm
Cooling System Air cooled Air cooled
Power 220(110)V/50(60)Hz/ 1.5kVA 220(110)V/50(60)Hz/ 1.5kVA
Dimension 1140×665×1115 mm 1140×665×1115 mm
Cost 15,000.00 49,800.00



Cable stripping process

wire stripping 1



  No. Sequence Equipment and Tool Time cost Worker AUTOMATION
1 Arrange the cables Human beings   4-5 We can supply the complete automation production line especially for your request.
2 Jacket strip Twin head CO2 laser striper 0.5s/cable 1
3 Jacket remove Remover 10s/bin 1
4 Shield cutting Four head Fiber laser Striper 20s/3bin 1
5 Shield brush Brush the shield 10s/bin 1
6 Insulation cutting Twin Head CO2 laser striper 15s/3bin 1
7 Insulation remove Remover 5s/bin 1
8 Inner conductor cutting Four head fiber laser 1s/bin 1
9 1-10 repeat



wire stripping 2



Applications

It is suitable for stripping the internal lines of mobile phones, computers and Digital Microelectronics products. Peeling Single line, line, multi-layer line, etc., It is suitable for small data processing below 0.5mm Especially used for stripping the extremely thin coaxial line, does not need to turn the wires, and does not need to go to tin. It can clean the shielded wires clean and will not damage the insulators.



Sample

YAG Fiber CO2 Laser Wire Stripping Machine 30W 50W 100W 2

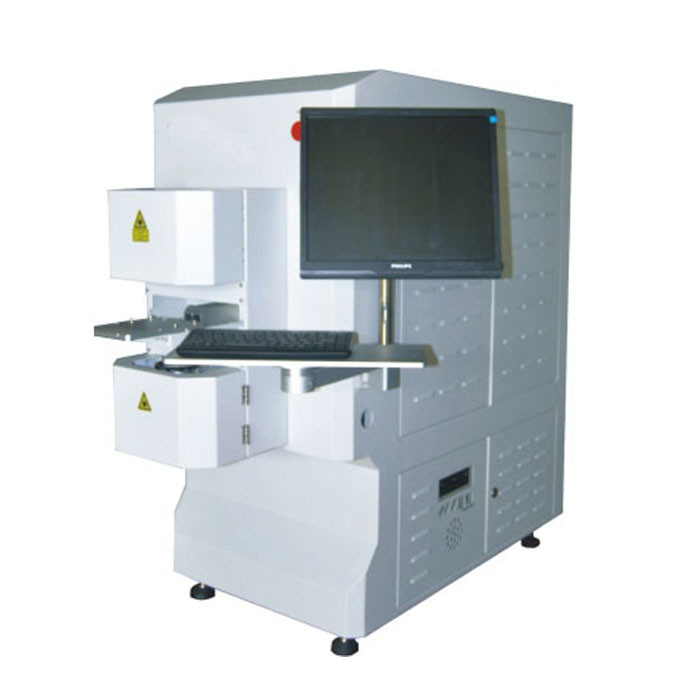

Machine overview

YAG Fiber CO2 Laser Wire Stripping Machine 30W 50W 100W 3

FAQ



1 Q: What is the warranty of the laser stripping machine?

A: The warranty is 2 years, but we offer whole life after-sale service.

2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc.

3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service.

4 Q: How is the operation of the machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training.
