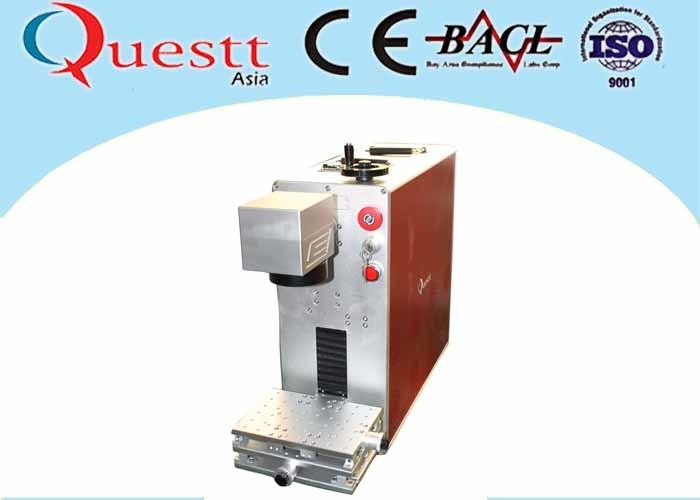

Laser Marking Machine with portable style

Laser Marking Machine with portable style

  • High Light

    fiber laser etching machine


    desktop laser marking machine

  • Laser Power
    10/ 20/ 30W
  • Laser Wavelength
  • Precision
  • Frequency
  • Cooling
  • Max Markng Speed
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Plywood cases
  • Delivery Time
    5 days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability

Laser Marking Machine with portable style

Laser Marking Machine with portable style and 1064nm Laser Wavelength


Equipment performance

The machine adopts originally imported fiber laser and imported speedy Gavol scanning system. High quality of light beam, long using time, stable equipment performance exempts maintenance. It is speedy, and precious. Marking has non-touched process, permanent effect, humanized operation, and stable running. The proprietary control software may compatible software output of AutoCAD, CorelDraw, Photoshop, etc. It can realized automatic edition and correction of characters, signs, graphs, images, bar codes, two-dimensional codes, automatically increased serial numbers. It can support various file formats like PLT, PCX, DXP, BMP, JPG, and so on. It may use TIF fonts directly. 24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production.


The machine is widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on. It is suitable to mark on all kinds of metal and partial nonmetallic material.

Special Function

It can mark different color with different parameter such as red, green, blue and etc. The parameter setting and the focus distance setting can be obtain the color marking. But the color will be changed according to the different environment temperature and humanity etc.

Laser wavelength 1064nm
Laser Type Fiber Laser(TEM00, M2<1.2)
Laser output power 10/20/30W
Modulation frequency 20 ~ 100 KHz
Max. Marking speed 7000 mm/s, (according to the material)
Marking area 70*70mm(standard), 110*110mm, 175*175mm, 200*200mm
Repeatability 0.01 mm
Positioning accuracy 0.01 mm
Marking depth 0.01 ~ 0.2mm(according to the material)
Beam Diameter 10um
Cooling Air cooled
Z Axis Manual, Motorized (optional)
Rotation Can be rotated automatically (optional)
Power supply Single phase 220V AC 50/60Hz, 500W



1 High quality laser beam
2 Low running cost
3 High precision
4 Easy to install and operate
5 Excellent stability
6 Maintenance free
7 Completely sealed optical system



  • fiber laser source
  • We can customize a jig to hold round metal workpiece,as photo shows
  • Visible red beam pilot laser
  • Digital Laser POWER SUPPLY
  • High speed Galvo Head and F-θ Lens
  • USB Control CARD
  • Special marking software
  • Industry PC

Warranty Period


One year from the date the machine arrives the destination Except consumable part damage artificially. The seller is responsible for offer free fittings in the warranty period (the buyer has to send the damaged fitting to seller.)

The artificial damage in the warranty period and damage after warranty period, the seller offers paid service. If the customer needs the engineer to supply the service oversea, all the expends will be paid by the customer.


Laser Marking Machine with portable style 0Laser Marking Machine with portable style 1



Laser Marking Machine with portable style 2

Accessory scanning


Laser Marking Machine with portable style 3
