Rotate Fiber Laser Marking Machine for Ring Engraving

Place of Origin Wuhan,China
Brand Name Questt
Certification CE,ISO,BACL
Model Number Quantum-FL20
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Plywood cases
Delivery Time 5 days
Payment Terms T/T, Western Union, L/C
Supply Ability 2000Sets/Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 10/ 20/ 30W Laser Wavelength 1064nm
Precision 0.01mm Frequency 20-100KHZ
Cooling Air-cooled Max Markng Speed 7000mm/s
High Light

fiber laser etching machine

,

desktop laser marking machine

Leave a Message
Product Description

Laser Marker with Fiber Laser Source 10/20/30w Rotate Device for Ring Engraving



Equipment performance

The machine adopts originally imported fiber laser and imported speedy Gavol scanning system. High quality of light beam, long using time, stable equipment performance exempts maintenance. It is speedy, and precious. Marking has non-touched process, permanent effect, humanized operation, and stable running. The proprietary control software may compatible software output of AutoCAD, CorelDraw, Photoshop, etc. It can realized automatic edition and correction of characters, signs, graphs, images, bar codes, two-dimensional codes, automatically increased serial numbers. It can support various file formats like PLT, PCX, DXP, BMP, JPG, and so on. It may use TIF fonts directly. 24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production.



Application

The machine is widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on. It is suitable to mark on all kinds of metal and partial nonmetallic material.



Special Function

It can mark different color with different parameter such as red, green, blue and etc. The parameter setting and the focus distance setting can be obtain the color marking. But the color will be changed according to the different environment temperature and humanity etc.



SPECIFICATION
Laser wavelength 1064nm
Laser Type Fiber Laser(TEM00, M2<1.2)
Laser output power 10/20/30W
Modulation frequency 20 ~ 100 KHz
Max. Marking speed 7000 mm/s, (according to the material)
Marking area 70*70mm(standard), 110*110mm, 175*175mm, 200*200mm
Repeatability 0.01 mm
Positioning accuracy 0.01 mm
Marking depth 0.01 ~ 0.2mm(according to the material)
Beam Diameter 10um
Cooling Air cooled
Z Axis Manual, Motorized (optional)
Rotation Can be rotated automatically (optional)
Power supply Single phase 220V AC 50/60Hz, 500W




Features


1 High quality laser beam
2 Low running cost
3 High precision
4 Easy to install and operate
5 Excellent stability
6 Maintenance free
7 Completely sealed optical system



Components

  • fiber laser source
  • We can customize a jig to hold round metal workpiece,as photo shows
  • Visible red beam pilot laser
  • Digital Laser POWER SUPPLY
  • High speed Galvo Head and F-θ Lens
  • USB Control CARD
  • Special marking software
  • Industry PC

Warranty Period



One year from the date the machine arrives the destination Except consumable part damage artificially. The seller is responsible for offer free fittings in the warranty period (the buyer has to send the damaged fitting to seller.)

The artificial damage in the warranty period and damage after warranty period, the seller offers paid service. If the customer needs the engineer to supply the service oversea, all the expends will be paid by the customer.



Sample



Rotate Fiber Laser Marking Machine for Ring Engraving 0

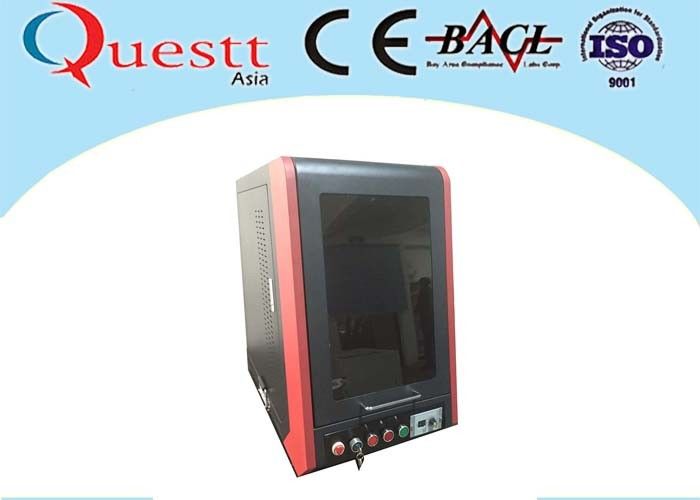

Machine outlook

Rotate Fiber Laser Marking Machine for Ring Engraving 1
