UV Fiber Laser Marking Machine 5W Water Cooling

UV Fiber Laser Marking Machine 5W Water Cooling

  • High Light

    fiber laser etching machine

    ,

    desktop laser marking machine

    ,

    UV Fiber Laser Marking Machine 5W

  • Laser Power
    5Watts
  • Laser Type
    UV Laser
  • Wave Length
    355nm
  • Service
    Oversea Service Offered
  • Power Supply
    110V / 220V
  • Working Area
    175x175mm
  • Place of Origin
    China
  • Brand Name
    Questt
  • Certification
    CE ISO
  • Model Number
    QA-UVM5
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Exported plywood boxs
  • Delivery Time
    6 days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability
    1660 Sets/Year

UV Fiber Laser Marking Machine 5W Water Cooling

UV laser marker with different style Precision Laser printing 5W Water cooling



Descriptions



QUESTT QA-UVM5 UV laser marker is a benchtop  type UV laser etching machine.



The UV laser etching machine incorporates a high speed galvo scanner head, enabling the highest precision of marking at exceptionally high speeds on a wide range of materials. Fiber laser can not mark, UV laser can mark, fiber laser can not mark so well, UV laser can finish very nice.



The UV laser device adopts diode pump laser as the pump source, end-pump fiber coupling, high power output, long use life time, free maintenance, internal heatsink air cooling, ensure stable laser output, can be long time continuous working.



Specification:




Model No. QA-UVM5 UV laser marking Machine
Laser type UV laser
The average output power 5W
Laser wavelength 355nm
Beam Quality(M2) 1
Frequency 20KHz-200KHz
Repetitive accuracy 0.005mm
Min Linear Width 0.01mm
Marking Depth 0.01-0.2mm
Max Speed 7000mm/s
Galvanometer Yes
Lens F-Theta Lens
Standard marking 175*175mm
The optional scope of marking 70×70mm / 110x110mm / 175×175mm / 220x220mm
Consumed power <500W
File format PLT, DXF, AI, DST, BMP, JPG, TIF,JPEG
Power Supply 220V/50Hz/15A (110-120V Optional)
Cooling system Air cooling
Grosss weight 160 kgs





FAQ

1 Q: What is the warranty of the machine?

A: The warranty is 12 month, but whole life service.



2 Q: What is the payment term?

A: T/T, L/C, Westen Union, PayPal etc.



3 Q: What is the service

A: Engineer offer oversea service .



4 Q: How about the quality?

A: High quality best price.



4 Q: How about the quality?

A: Germany high technoloy.







Application



PCB, BGA, FCB, IC, computer fittings, industry bearing, timekeeper, electronic device, communicate devices, electrical wire and cable, clothing



Engraving and markng the characters and graphics.





Features

1 Long lifetime working
2 very high quality laser beam



3 high density energy of spot
4 No mask needed to accurately expose 3D graphics


5 Exposing graphics can be promptly and freely amended
6 Rotate working talbe as your design

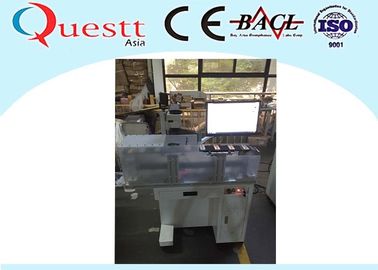

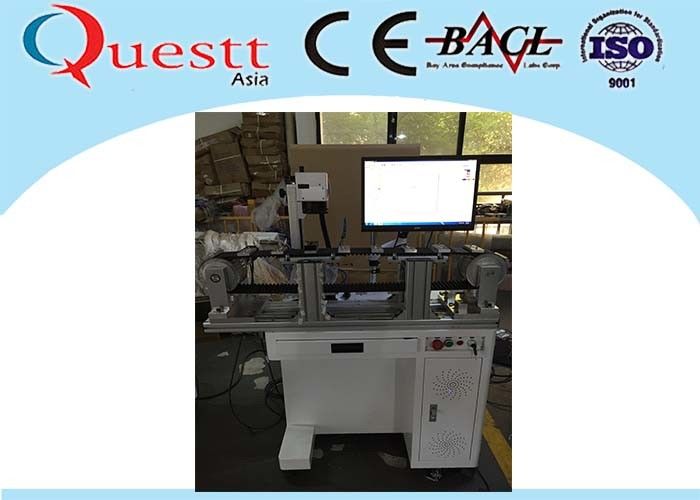

Machine Outlook

UV Fiber Laser Marking Machine 5W Water Cooling 0
