High Configuration 20W Raycus Laser Marking Machine For Metal

High Configuration 20W Raycus Laser Marking Machine For Metal

  • High Light

    20W Raycus Laser Marking Machine

    ,

    High Configuration Raycus Laser Marking Machine

    ,

    Raycus Laser Engraver For Metal

  • Certification
    CE ISO
  • Cnc Or Not
    Yes
  • Cooling Mode
    Air Cooling
  • Marking Speed
    0-7000mm/s
  • Warranty
    1 Year
  • Laser Source
    Raycus
  • Keywords
    Fiber Laser Marking Machine Price
  • Working Accuracy
    0.01mm
  • Control Software
    JCZ Software
  • Laser Wavelength
    1064nm
  • Graphic Format Supported
    BMP,PLT,AI,DXF,DST
  • After-sales Service Provided
    Online Support
  • Place of Origin
    WUHAN
  • Brand Name
    QUESTT
  • Certification
    CE ISO
  • Model Number
    EM SMART
  • Minimum Order Quantity
    1
  • Delivery Time
    5-8 Working days
  • Payment Terms
    T/T
  • Supply Ability
    2000 sets per year

High Configuration 20W Raycus Laser Marking Machine For Metal

High efficiency raycus mini software ezcad wuhan 20w 30w 50w fiber laser marking machine





FEATURES

* Easily Carried - Net weight 10kg
* Compact Design - Dimension 505mm x 260mm x 440mm
* Plug and Run - Uni-body design, installation-free
* Safety - Fiber wire inside integrated, Protection cover optional
* Artwork Appearance - Deep customization with Raycus, JCZ and Sino-Galvo to be small enough in the body
* CE passed

High Configuration 20W Raycus Laser Marking Machine For Metal 0
Machine details

High Configuration 20W Raycus Laser Marking Machine For Metal 1
High Configuration 20W Raycus Laser Marking Machine For Metal 2
High Configuration 20W Raycus Laser Marking Machine For Metal 3
Advantages
High Configuration 20W Raycus Laser Marking Machine For Metal 4
High Configuration 20W Raycus Laser Marking Machine For Metal 5
Parameters

Model
EM-Smart
Laser Type
20watt Fiber Laser (Raycus)
Work Area
110mm * 110mm
Laser Wavelength
1064nm
Marking Speed
≤7000mm/s
Repeat Accuracy
±0.01mm
Minimum Character
0.1mm
Frequency Range
30-60kHz
Operation Temperature
15℃ - 35℃
Cooling Method
Air Cooling Integrated with Fiber Laser Source
Power Supply
AC 110v - 240v, 50Hz / 60Hz
Power Consumption
≤120W
PC Connection
USB Wire
Software
EZcad 2 from Beijing JCZ
Software Language
English / Japanese / Korean / Chinese
Power Outlet Type
US, UK, EU, CN, etc.
Machine Color
White / Blue / Dark Green / Dark Gray
Machine Net Weight
10KG

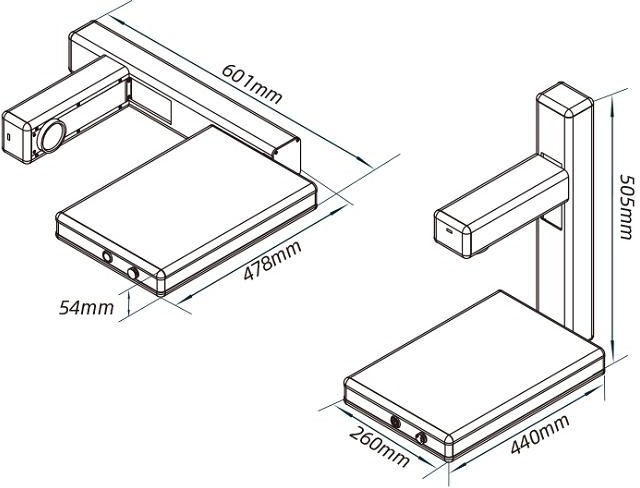

Machine Dimension
260mm(L) * 440mm(W) * 505mm(H)



Samples



Suitable Materials
* Stainless steel
* Steel and hard metals
* Aluminum and anodized aluminum
* Precious metals
* Brass
* Copper
* Titanium and titanium alloys

* Poly amide (PA)
* Polycarbonate (PC)
* Acrylonitrile butadiene styrene copolymer (ABS)



High Configuration 20W Raycus Laser Marking Machine For Metal 6



Package

High Configuration 20W Raycus Laser Marking Machine For Metal 7
