Laser Printer 20W 30W Online Integrated Fiber Laser Marking Machine
Contact me for free samples and coupons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Power | 20W | Service | Offer Overseas And Online Service |
|---|---|---|---|
| Power Supply | 110/220V | Speed | 0-7000 Mm/s |
| Certificate | CE | Application | Equip On Auto Producing Lines |
| High Light | Integrated Fiber Laser Marking Machine,30W Fiber Laser Marking Machine,Laser Printer 20W |
||
Product Description

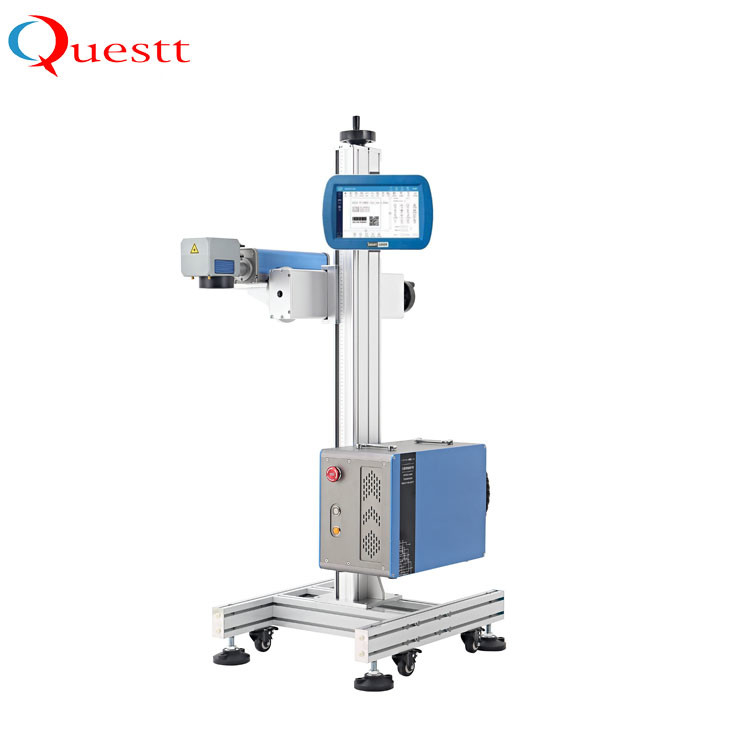

Laser Printer Factory Price 20W 30W Online Integrated Fiber Laser Marking machine
Introduction
Quantum - FLM20S fiber Laser Marking Machine is a flying type laser marker for automation production lines, like water bottles producting conveyor, we can mark the date and series numbers on the cover or body of the bottles.
It is fiber laser source, so can etching and write on all kinds of materials for different products.
This flying type laser printer can support all kinds of file formats. Vector file like DXF,PLT, AI etc.
The laser marker can work 24-hour without stopping, that make it suitable for automation industrialized production lines, increase the producing efficiency.
Main technical parameters of fiber series:
| project | Parametertable | QA-FLM20S | QA-FLM30S | QA-FLM50S |
|
characteristic |
Machine material | All aluminum sandblasting oxidation | ||
| Laser | The service life is more than 100000 hours | |||
| Laser wavelength | 1064nm | |||
| output power | ≥20W | ≥30W | ≥50W | |
| Marking speed | ≤12000mm/s | |||
| controller | 10.2 inch touch controller | |||
| Cooling system | Air cooling | |||
|
parameter |
Focus lens | 165mm | ||
| Minimum linewidth | 0.012mm | |||
| Repetitionaccuracy | 0.003mm | |||
| Marking range | 110mm×110mm(optinal) | |||
| Positioning mode | Blue light indication | |||
| Number of rows | Any line within the marking range | |||
| Production line speed | 0~130m/min (depending on the material) | |||
|
Software |
Multilingual | English, Spanish, German, Chinese, Russian, Arabic, etc | ||
| jurisdiction | Multi user management authority | |||
| operating system | Linuxsystem | |||
| Inkjet mode | Static, analog, encoder | |||
| Reserved signal | Start, print status, finish, fault | |||
| data protection | With power failure data protection energy | |||
| monitor | Provide overspeed alarm function | |||
| De crossing | Automatic removal of intersections | |||
| Coding software | Single and double machine code sending | |||
|
Support type |
typeface | Chinese and English, numbers, traditional, etc | ||
| file format | BMP/DXF/HPGL/JPEG/PLT | |||
| bar code | CODE39,CODE128,CODE126,QR | |||
|
Servicing parameters |
Power Supply | 220V/50HZ | ||
| Power consumption | 400W | |||
| Net weight of machine | 28kg | |||
| Overall dimension | nose:500mmX103mmX110mm Control box:416mmX170mmX267mm | |||
| environment | requirement | External temperature0℃-45℃;humidity≤95% | ||
Quality standards implemented
| Serial number | name |
| GB 7247-87 | Radiation safety of laser products |
| GB10320-88 | Electrical safety of laser equipment and facilities |
| ISO9000-3 | International software standards |
| GB/T12123-89 | Sales packaging procedure |
| IEC 536 | Protection equipment against electric shock |
Main configuration list:
| number | Subsystemname | brand | model | quantity | Place of Origin |
| 1. | Laser | Wuhan Raycus | 1064-20QS/30QS/50QE | 1 | China -wuxin |
| 2. | Galvanometer | Shenzhen-ZBTK | ZB2D10C1064 | 1 | China - Shenzhen |
| 3. | Field mirror | crystal lattice | JGZL1-1064-160-110 | 1 | China - Shenzhen |
| 4. | Power Supply | Taiwan Mingwei | S350-24W | 1 | Taiwan |
| 5. | software system | Shenyang baichuang | 10.2 External | 1 | China Shenyang |
| 6. | photoelectricity | Xinshe electric | FZ2-22N | 1 | China Zhejiang |
| 7. | Synchronizer | Changchun side | 38S6-2500 | 1 | China Changchun |
| 8. | focusing | Shenzhen-ZBTK | ZB2D10C1064 | 1 | China - Shenzhen |
| 9. | wave filter | YUNSANDA | CW2B-10A | 1 | Taiwan |
| 10. | Bracket | self-control | SY02415-1500 | 1 | China |
Attached accessories and relevant data:
| number | Subsystemname | quantity | remarks |
| 1 | Laser machine equipment | One | Random accessories |
| 2 | Control system | One | Random accessories |
| 3 | Photoelectric inspection switch | One | Random accessories |
| 4 | Synchronizer | One | Random accessories |
| 5 | Flight support | One | Random accessories |
| 6 | Windows Debugging Tools | One | Random accessories |
| 7 | Mechanical and circuit diagram | One each | Random accessories |
| 8 | instructions | One each | Random accessories |
Overall dimension:
Applications
Specially marking for automation conveyor production lines, like water bottles
It can print many kinds of metal materials and non-metallic materials, such as plastic,electroplates,metal-coated materials, rubbers, ceramics,mobile button,plastic transparent button.
Samples
RFQ:
1.Q:Warranty of Fiber Laser Marker?
A:Questt Lasers have a warranty for 1-2 years.
2.Q:Are you a factory or trading company?
A:Quesstt Lasers is a factory for 22 years.Got import and export License.
3.Q:How about the quality?
A:Quesstt Lasers Technology is from Germany.High quality best price.
4.Q:What is your after-sale service?
A:If needed,Questt Lasers offer door to door service !we can send engineers to your factory for assembling ,adjusting and training!
5.Q:How do i get technical support after purchasing?
A:Questt Lasers offer online service in English through Skype,WhatsAPP,Wechat or Email etc .If need remote operation,we can use TeamViewer software.
6.Q:How can i get assurance of my Payment?
A:Alibaba have Trade Assurance,you can pay throught Alibaba first.
