Portable Laser Marker CE 20W Desktop Laser Engraving Machine

Place of Origin China
Brand Name Questt
Certification CE ISO
Model Number Quantum - FL10S
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Sea-worthy wooden boxes
Delivery Time 4 days
Payment Terms T/T, Western Union, L/C
Supply Ability 3440 units / Year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 20W Service Oversesa Service
Laser Type Fiber Cooling Air Cooling
Power Supply 110V / 220V 50/60HZ Mark Area 70x70mm Adjustable
Laser Wavelength 1064nm Speed 0-7000 Mm/s
Certificate CE Warranty 2 Years
High Light

20W Desktop Laser Engraving Machine

,

CE Laser Engraving Machine

,

1064nm Portable Laser Marker

Leave a Message
Product Description

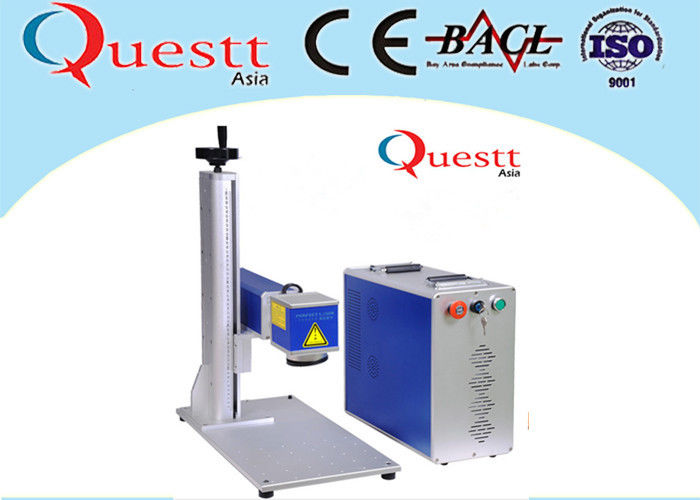

  Portable Laser Marker CE 20W Desktop Laser Engraving Machine





Overviews


Quantum- FL20S Portable Laser Marker is a seperate type laser engraving machine for all kinds of materials. The laser device and the working talbe is two parts, the desktop working table also equip with a Z axis for moving up and down the scanner head to adjust the focus distance.

It can support file formats like PLT, PCX, DXP, BMPand so on. It may use TIF fonts directly. 24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production.

24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production. Long lifetime up to 100,000 Hours.



Advantage



1 Maintenance-free

2 Hi quality Raycus fiber laser or IPG laser

3 Fast delivery
4 Maintenance free

5 Completely sealed optical system

6 Take samll space for working

Portable Laser Marker CE 20W Desktop Laser Engraving Machine 0

Components


10W/20W/30W fiber laser source
Visible red beam positioning system
High speed Galvo Scanner Head and F-theta Lens
USB Control board card

Free laptop

Z aixs working talbe





Specifications



Model No. Quantum - FL20S Portable Laser Marker
The output power 20W
Laser wavelength 1064nm
Beam Quality(M2) 1.5
Frequency 20KHz-80KHz
Repetitive accuracy 0.005mm
Min Linear Width 0.01mm
Marking Depth 0.01-0.2mm
Max Speed 7000mm/s
Standard marking area 70*70mm
The optional scope of marking 110×1100mm / 175×175mm 220x220mm
Consumed power <500W
Power Supply 220V/50Hz/15A
Cooling system Air cooling
Gross weight 50kg
Dimension 600x420x550mm





Application



Electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication





Sample



Portable Laser Marker CE 20W Desktop Laser Engraving Machine 1





Optional Accessories





Portable Laser Marker CE 20W Desktop Laser Engraving Machine 2

FAQ



1 Q: What is the warranty of the Laser engraving machine?

A: The warranty is 2 years, whole life after-sale service. Online service is OK.

2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc. Any payment term.

3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.

4 Q: How is the quality of the machine?

A: Germany high technoloy with good quality. Price is reasonable.
