20W Fiber Laser Marking Machine

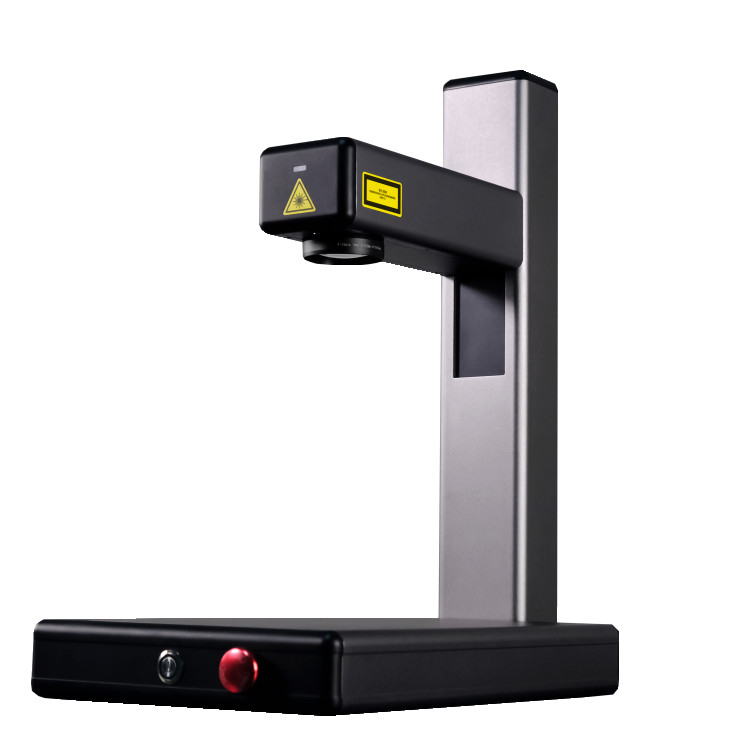

EM-Smart Foldable 20W Fiber Laser Marking Machine For Stainless Steel Metal
Rotary Table Portable 20w Fiber Laser Marking Machine For Pen Pencil
Machine Introduction
EM-Smart is a desktop fiber laser marking machine developed from the four cores of lightness, ease of use, appearance and safety. It is currently the smallest fiber laser marking machine on the global market. Commercialized and popularized the industrialized and bulky traditional laser marking machine, so that everyone can easily use laser equipment.
Advantage
1. The world's thinnest optical fiber marking machine body with a thickness of only 5.4cm;
2. The net weight of the whole machine is 10kg, which is convenient for use scene conversion and can be taken with you;
3. The area size is 260*440*505mm, only 0.058m³, which saves space
4. The first folding design, no complicated installation, plug and play;
5. Double red light fast focusing system, easy to use;
6. The whole machine has no consumables, the working energy consumption is less than 120W, and the use cost is low;
7. 6 safety protections, tilt to stop the light, use it with peace of mind;
8. Two-year warranty, quality problems, only replacement but not repair.
9. 23 years of industry technology precipitation, providing massive application materials
Specifications
| Product Specifications |
| Product |
EM Smart 20 |
| Purpose |
Marking / engraving |
| Laser |
Fiber |
| Laser Wavelength |
1000-1100nm |
| Laser Type |
Fiber LASER |
| Laser Output Power |
20W |
| typical Laser Life Span |
100,000hrs |
| Modulation frequency |
20-100kHz |
| Max. Working Speed |
7000mm/s |
| Galvanometer |
Yes |
| Lens |
F-Theta Lens |
| Working Area |
|
| Beam Diameter/Quality |
M2<1.2 |
| Working Area |
70x70mm (standard), 110x110mm, 160x160mm, 175x175mm,220x220mm |
| Repeatability |
0.01mm |
| Positioning accuracy |
0.01mm |
| Min Line Width |
0.01mm |
| Marking/Cutting Depth |
0.01-0.2mm (depending on material) |
| Control |
|
| Cooling |
Air cooling |
| No. Axis |
3 Axis (Manual) |
| Rotation |
Optional(Automatic only) |
| Power supply |
AC220V, 50/60Hz, 1kVA (110-120V Optional) |
| Controller |
Computer with marking software |
| USB 2.0 Compatible |
YES |
| File Types |
PLT, DXF, AI, DST, BMP, JPG, TIF |
| Max. Operating Time |
24hrs (recommend 1hr cool-down period) |
| Physical Characteristics |
|
| Dimensions |
650*350*550mm(0.22M3) |
| Weight (kg) |
30kg |
| Guarantee: |
(see Ts&Cs on support page) |
| General Guarantee |
12 Months from date of arrival at destination |
| Laser Source |
2000hrs/3 months - LAMP PUMPED & CO2(Except Smart Series) |
| |
20,000hrs/18 months - Smart Series |
| |
10,000hrs/12 months - Diode Pumped |
| |
100,000hrs/2 years - Fiber LASER
|
Application
It can mark all kinds of metal materials and some non-metallic materials
Bathing products,tool accessories, glasses and watches,jewelry,button decoration for boxes and bags, cookers,stainless steel products and so on.
Special Function
It can mark different color with different parameter such as red, green, blue and etc.Only for shinny mirror SS material.
The parameter setting and the focus distance setting can be obtain the color marking.
Sample
Accessory scanning
1 Q: What is the warranty of the laser marking machine?
A: The warranty is 2 years.
2 Q: Are you a factory or trading company?
A: We are factory for 22 years.
3 Q: What is the service?
A: Engineer offer oversea service and we offer online service for small problems
4 Q: Can we customize as special needs?
A: Yes you can.
5 Q: What is the payment terms?
A: T/T, LC, etc.
