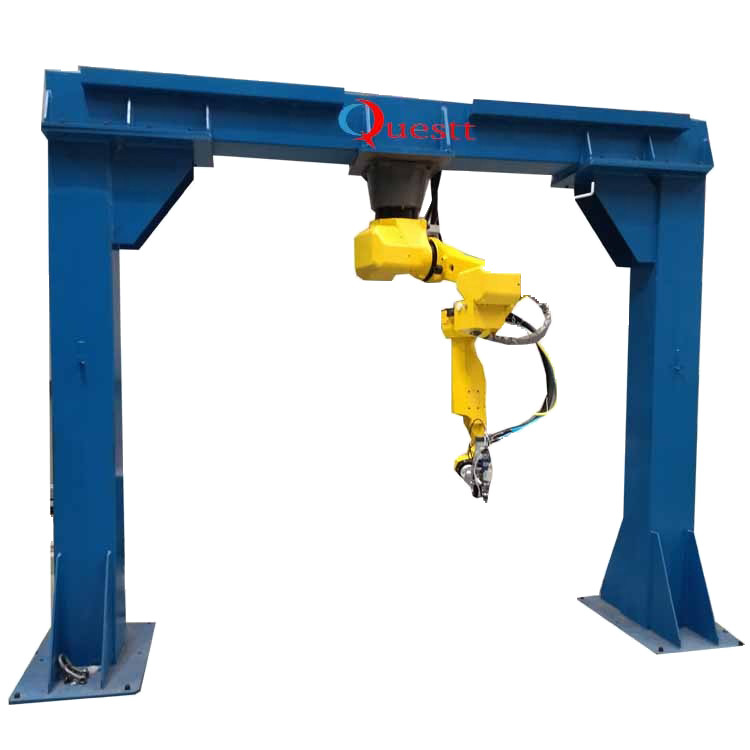

2000w 3000w 3D Robot Fiber Laser Cutting Machine with Intuitive Software

​

3D Robot Fiber Laser Cutting Machine is a marvel of modern technology. This cutting-edge machine has revolutionized the field of precision cutting, allowing greater accuracy and efficiency in cutting a wide range of materials.

One of the most impressive features of the 3D robot cutting machine is its ability to work with a variety of materials, from wood and plastic to metal and ceramics. This versatility makes it an ideal choice for a range of industries, including automotive, aerospace, construction, and more.

3D Robot Fiber Laser Cutting Machine is also incredibly precise, with the ability to make even the most intricate cuts with ease. This makes it a highly effective tool for creating complex components and designs with absolute accuracy and consistency.

Beyond its impressive technical capabilities, 3D Robot Fiber Laser Cutting Machine is also incredibly user-friendly, with intuitive software that allows operators to easily program and execute cutting tasks. This makes it an ideal tool for both small-scale workshops and large-scale manufacturing facilities.

Laser source

Adopt domestic first-line brand Raycus laser, anti-high reflection, strong reliability, long life, equipped with 10 meters 3D enhanced optical cable, effectively guarantee long-term stable work

1.Excellent beam quality 2. High electro-optical conversion efficiency 3.High power stability

Laser 3D anti-collision cutting head

It can precisely cut the space curve trajectory of workpieces such as glass fiber, carbon fiber and Kevlar helmets. It adopts a modular design, and the corner cutting does not stop. The degree of space freedom is high and the adjustment is flexible.

1.Cooling system Normal temperature water cooling, effectively avoiding damage to the laser and cutting head, improving cutting quality

2.Blowing system Blow off cutting molten metal slag, prevent lens pollution, nitrogen, oxygen and air are controlled separately

3.Capacitor height controller Keep the height from the nozzle to the surface of the workpiece consistent, effectively ensuring cutting quality and speed

4.3D fiber cutting head Lightweight structure, precise adjustment, neat cut, more efficient and accurate cutting

5.Crash protection device It has the function of collision buffer, the cutting head will not fall off, the signal is automatically disconnected when a collision occurs, triggers an emergency stop, avoids injury to the operator and the cutting head, and prevents false alarms

Dual temperature dual control cooling system

Provide cooling water for the laser, provide room temperature water cooling for the cutting head, efficient and environmentally friendly, with flow and over-temperature alarms, and linkage signals to protect the laser

Clean water Large cooling capacity Stable performance

Integrated independent laser controller

The control cabinet is dust-proof and anti-corrosion, man-machine operation panel, standard wiring structure, the whole machine is highly integrated, PWM control and special industrial air conditioner can be selected according to the demand, to achieve perfect cutting

Laser mode and power control Separately developed for thick plate and small hole cutting,Cutting head following height control and calibration

Robot body control cabinet (including teaching pendant)

High-precision six- axis industrial robot

The robot can be selected according to the customer's workpiece size and cutting precision requirements and other process requirements, and can be perfectly combined with the PLC system, offline mapping software, positioner and protective room.

1.High precision 2.Large format3.Ultra-deep workpiece groove edge cutting

​

​​​​

​

3D Robot Fiber Laser Cutting Machine is a sharp tool for car thermoforming parts, special-shaped pipe fittings and some plastics for cutting holes, trimming edges, and cutting arcs. 3D Robot Fiber Laser Cutting Machine can realize dynamic 2D and 3D cutting at one time, and can basically replace CNC processing.It is especially suitable for cutting holes and cutting edges of composite materials such as glass fiber, carbon fiber and Kelaf helmets. 3D Robot Fiber Laser Cutting Machine can be used for teaching programming or offline programming for different products and different trajectories.

​
