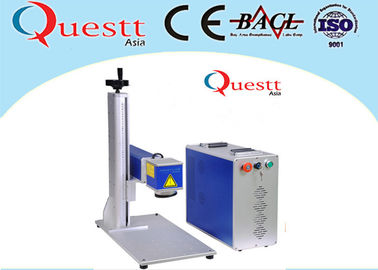

Small Optical Fiber Laser Marking Machine 20 Watt 7000 Mm/S 3 Axis Computer Controller
Small optical Fiber Laser Marking Machine 20Watt diamond bangle bracelet printing
Overview
Optical Fiber Laser Marking machine is developed and produced by us with the world newest laser technology.It belongs to the third generation system of laser technology .
QUESTT Quantum- FL20S can realized automatic edition and correction of characters, signs, graphs, images, bar codes, twodimensional codes, automatically increased serial numbers.
Adopting fiber laser output the laser ,then using ultra high-speed scanning galvanometer system to marking. The critical component use long lifetime stable device. It has lots of advantages : novel appearance,unique structure,convenient operation,high modulating frequency,fast marking speed,high precision,stable performance .It can widely used in various metal and non-metallic surface to output the permanent mark.
Advantage
1) Maintenance-free
2) Raycus fiber laser or IPG laser
3) High speed imported digital scanner
4) Red positioning guide system
5) Long lifetime up to 100,000 hours
6) Excellent beam quality, high stability
Specifications
| Product Specifications |
| Product |
Quantum-FL20 |
| Purpose |
Marking / engraving |
| Laser |
|
| Laser Wavelength |
1000-1100nm |
| Laser Type |
Fiber LASER |
| Laser Output Power |
20W |
| typical Laser Life Span |
100,000hrs |
| Modulation frequency |
20-100kHz |
| Max. Working Speed |
7000mm/s |
| Galvanometer |
Yes |
| Lens |
F-Theta Lens |
| Working Area |
|
| Beam Diameter/Quality |
M2<1.2 |
| Working Area |
70x70mm (standard), 110x110mm, 160x160mm, 175x175mm,220x220mm |
| Repeatability |
0.01mm |
| Positioning accuracy |
0.01mm |
| Min Line Width |
0.01mm |
| Marking/Cutting Depth |
0.01-0.2mm (depending on material) |
| Control |
|
| Cooling |
Air cooling |
| No. Axis |
3 Axis (Manual) |
| Rotation |
Optional(Automatic only) |
| Power supply |
AC220V, 50/60Hz, 1kVA (110-120V Optional) |
| Controller |
Computer with marking software |
| USB 2.0 Compatible |
YES |
| File Types |
PLT, DXF, AI, DST, BMP, JPG, TIF |
| Max. Operating Time |
24hrs (recommend 1hr cool-down period) |
| Physical Characteristics |
|
| Dimensions |
650*350*550mm |
| Weight (kg) |
55kg |
| Guarantee: |
(see Ts&Cs on support page) |
| General Guarantee |
12 Months from date of arrival at destination |
| Laser Source |
2000hrs/3 months - LAMP PUMPED & CO2(Except Smart Series) |
| |
20,000hrs/18 months - Smart Series |
| |
10,000hrs/12 months - Diode Pumped |
| |
100,000hrs/2 years - Fiber LASER |
Application
Electrical Engineering and Electrical part and component
Mobile (Cover, battery, keyboard, iPhone Case)
Jewellery (Ring, pedeant, bracelet), eyeglass, clocks and craft
Building materials, PVC pipe etc.
It can mark on almost all kinds of materials.
Sample
FAQ:
1 Q: What is the warranty ?
A: 2 yearwarranty and whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service for little problems, using online chatting tools like Whatsapp to talk with customers directly for all questions .
4 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
