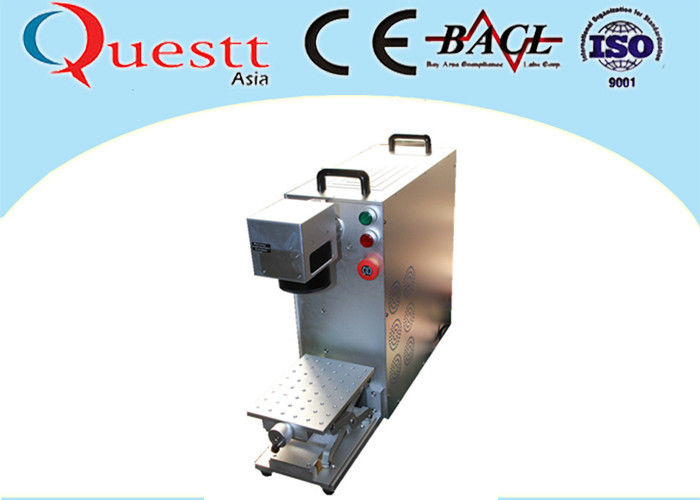

Metal Fiber Laser Marking Machine For SS Iron Aluminum Printing 20W

Product Details

Place of Origin: China

Brand Name: Questt

Certification: CE,ISO,BACL

Model Number: FL20

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: wood case

Delivery Time: 6 days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 3900 Sets / Year

Get Best Price
Highlight:

laser marking equipment

,

desktop laser marking machine

Laser Power:
20W
Cooling:
Air Cooling
Service:
Engineer Available Overseas Service
Customize:
Yes
Power Supply:
220V / 110V
Gross Weight:
50kg
Certificate:
CE
Warranty:
2 Years
Laser Power:
20W
Cooling:
Air Cooling
Service:
Engineer Available Overseas Service
Customize:
Yes
Power Supply:
220V / 110V
Gross Weight:
50kg
Certificate:
CE
Warranty:
2 Years
Metal Fiber Laser Marking Machine For SS Iron Aluminum Printing 20W

Portable Metal Marking Machine 20W for SS Iron Aluminum printing



Discription


Quantum - FL20 Portable Metal Marking Machine is a mini type laser marker for all kinds of material, using ultra high-speed scanning galvanometer system to mark.

SS Iron Aluminum printing is speedy and precious. Marking has non-touched process, permanent effect, humanized operation, and stable running.

It can support file formats like PLT, PCX, DXP, BMPand so on. It may use TIF fonts directly. 24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production.
24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production. Long lifetime up to 100,000 Hours.



Features


1 High quality laser beam
2 Low running cost

3 Fast delivery
4 Maintenance free

5 Completely sealed optical system

6 Take samll space for working



Components


10W/20W/30W fiber laser source
Visible red beam positioning system
High speed Galvo Scanner Head and F-theta Lens
USB Control board card

High quality power supply
Computer free





Parameter data sheet

Metal Fiber Laser Marking Machine.pdf



Model No. Quantum - FL20 Portable metal marking machine
The output power 20W
Laser wavelength 1064nm
Beam Quality(M2) 1.5
Frequency 20KHz-80KHz
Repetitive accuracy 0.005mm
Min Linear Width 0.01mm
Marking Depth 0.01-0.2mm
Max Speed 7000mm/s
Standard marking area 70*70mm
The optional scope of marking 110×1100mm / 175×175mm  220x220mm
Consumed power <500W
Power Supply 220V/50Hz/15A
Cooling system Air cooling
Gross weight 50kg
Dimension 650x360x550mm



Metal Fiber Laser Marking Machine For SS Iron Aluminum Printing 20W 0

Application


Electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication





Special Function


It can mark different color with different parameter such as red, green, blue and etc.

The material should be mirror SS.



Sample





Metal Fiber Laser Marking Machine For SS Iron Aluminum Printing 20W 1



Accessory scanning



Metal Fiber Laser Marking Machine For SS Iron Aluminum Printing 20W 2

FAQ



1 Q: What is the warranty?

A: The warranty is 2 years, whole life after-sale service.

2 Q: What is your payment term?

A: T/T, L/C, Any payment term.

3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools

4 Q: How is the quality of the machine?

A: Germany high technoloy with good quality. reasonable price.
