10W Jewelry Laser Marking Machine , Imported Galvanometer Laser Scanner For Medication

China 10W Jewelry Laser Marking Machine , Imported Galvanometer Laser Scanner For Medication supplier
10W Jewelry Laser Marking Machine , Imported Galvanometer Laser Scanner For Medication supplier 10W Jewelry Laser Marking Machine , Imported Galvanometer Laser Scanner For Medication supplier

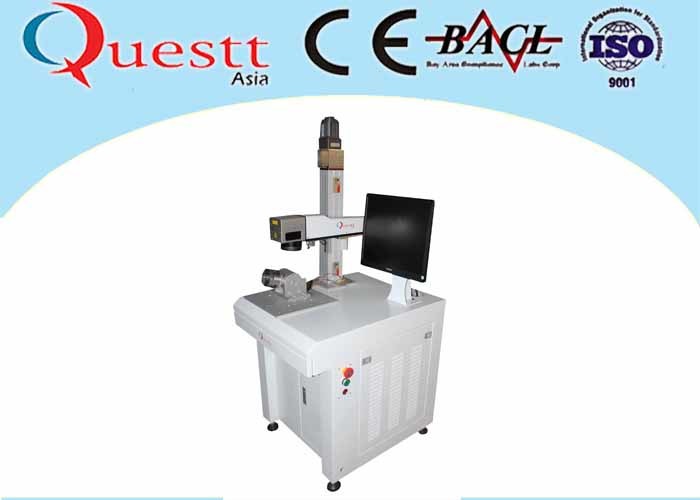

Large Image :  10W Jewelry Laser Marking Machine , Imported Galvanometer Laser Scanner For Medication

Product Details:

Place of Origin: China
Brand Name: Questt
Certification: CE ISO BACL
Model Number: Quantum - FL10B

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Anti-water Plywood cases
Delivery Time: 8 working days
Payment Terms: T/T, Western Union,, L/C
Supply Ability: 2680 sets / Year
Contact Now
Detailed Product Description
Laser Power: 10W Control System: Laptop Free
Service: Oversea Service Available Working Area: 110x110mm
Marking Speed: Max 7000mm / S Power Supply: 110V 200V , 50 / 60 HZ
Warranty: 2 Years

Jewelry Laser Marking Machine CE Certificate Imported Galvo Scanner Laser device

Description


Quantum - FL20 Jewelry Laser Marking Machine is a benchtop laser marking machine with four wheels on the ground, so the machine can move easily in your place.



The laser marker can automatically perform the engraving of characters, signs, graphs, images, bar codes, two-dimensional codes, and automatically increasing serial numbers to a wide range of materials.



The laser printing machine can support file formats like PLT, PCX, DXP, BMPand so on. It may use TIF fonts directly. 24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production.


We have rotate device, conveyor, handy welding head for optional choices





Specification data

Jewelry Laser Marking Machine.pdf



Product Specifications
Product Quantum-FL10B Metal Laser Marking Machine
Purpose Marking printing engraving
Laser
Laser Wavelength 1000-1100nm
Laser Type Fiber laser source
Laser Output Power 10W
typical Laser Life Span 100,000hrs
Modulation frequency 20-100kHz
Max. Working Speed 7000mm/s
Galvanometer Yes
Lens F-Theta Lens
Working Area
Beam Diameter/Quality M2<1.2
Working Area 70x70mm, 110x110mm (standard), 160x160mm, 250x250mm
Repeatability 0.01mm
Positioning accuracy 0.01mm
Min Line Width 0.01mm
Marking/Cutting Depth 0.01-0.2mm (depending on material)
Control
Cooling Air cooled
No. Axis Z Axis (Manual)
Rotation Optional(Automatic only)
Power supply AC220V, 50/60Hz, 1kVA (110-120V Optional)
Controller Computer with marking software
USB 2.0 Compatible YES
File Types PLT, DXF, AI, DST, BMP, JPG, TIF
Max. Operating Time 24hrs (recommend 1hr cool-down period)
Physical Characteristics
Dimensions 690x700x1100mm
Weight (kg) 120kg
Guarantee:
General Guarantee 12 Months from date of arrival at destination
Laser Source 2000hrs/3 months - LAMP PUMPED (Except Smart Series)
  20,000hrs/18 months - Smart Series
  10,000hrs/12 months - Diode Pumped
  100,000hrs/2 years - Fiber LASER





Applications



The spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication







Samples



10W Jewelry Laser Marking Machine , Imported Galvanometer Laser Scanner For Medication





FAQ



1 Q: What is the warranty of the machine?

A: The warranty is 12 month, but whole life service.



2 Q: What is the payment term?

A: T/T, L/C, Westen Union, PayPal etc.



Q: What is the service

A: Engineer offer oversea service .



4 Q: How about the quality?

A: High quality best price.







Different angle of the machine



10W Jewelry Laser Marking Machine , Imported Galvanometer Laser Scanner For Medication
