Product Details
Place of Origin: China
Brand Name: Questt
Certification: CE ISO
Model Number: Angel-1000
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Exporting Plywood Box
Delivery Time: 7 - 11 day
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5100 sets per year
Material: |
Crystal Glass Acrylic |
Crystal Size: |
100x100x80 Mm |
Laser Source: |
Green Laser |
Photo: |
2D / 3D |
Laser Wavelength: |
532nm |
Warranty: |
1 Year And Permanent Service |
Material: |
Crystal Glass Acrylic |
Crystal Size: |
100x100x80 Mm |
Laser Source: |
Green Laser |
Photo: |
2D / 3D |
Laser Wavelength: |
532nm |
Warranty: |
1 Year And Permanent Service |

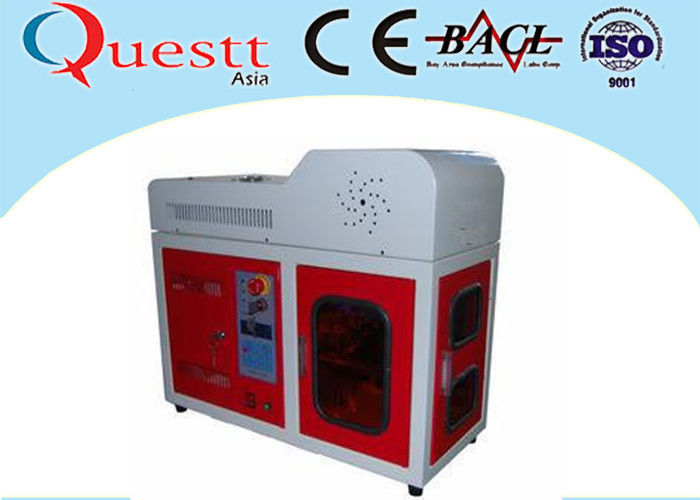

Portable 3D Crystal Laser Engraving Machine Nice outlook 532nm Green laser
Introduction
Angel-1000 Portable 3D Crystal Laser Engraving Machine is a high-speed 3D laser engraving system.
Its technical parameters are among those of the top performance laser engraving systems. It is with higher resolution, higher stability, easy to maintain, and high performance-to-price ratio compared with the similar products.
Equip with rapid scanner laser subsurface engraving machine could engrave 2D, 3D image in crystal and glass production.
It is used to engrave 2D,3D images or individual figures in crystal and glass products.
It could work for a large scale production of 2D and 3D animals & plants, architectures, models
such as car, boat, airplane etc and 3D scene show, glass marking.
Advantage
1. Angel-1000 rapid scanner laser subsurface engraving machine adopts the advanced galvanom
eter scanner technology together with the 2KHz diode-pumped Nd: YAG frequncy doubling laser which is faster, the laser point is more thin and bright, the image also will be more elaborate an
d lively.
2. It is more reasonable and steady for long –term production. This machine has the software dev ellped independetly, which shall laser 2D image like 3D impression.
3. It adopts original technology, and the engraving range is large.
4. This machine is suitable for individual production and batch fast process.
5. Just one machine could be satisfied with capacity for both storefronts network distribution and elecgtric-business distrib ution.
6. It comes laser to greatly advance laser speed. It adopts incorporated structure, and it is good fluid, suited to use in Supermarket.
Specification
| Model | Angel-1000 |
| Laser /Wavelength | semiconductor diode 532 nm |
| Diode lifetime | 25000 Hours |
| Max working scope | 80*100*100mm |
| Engraving dot pitch | 0.07-0.12mm |
| Engraving spot size | 40-80μm |
| Max engraving speed | 3000 dots/s |
| Resolution | 1500dpi |
| Z axis screw rod accuracy | 0.02mm/300mm |
| Z axisrepositioning accuracy | <3μm/300mm |
| Total Power | 500W |
| Dimension before packing | 700mm*290mm*530mm(L*W*H) |
| Dimension after packing | 900mm*400mm*700mm (L*W*H) |
| Net weight | 63Kg |
| Gross weight | 72Kg |
| Cooling system | Air cooling |
| Temperature | 15℃~30℃ |
| Environment humidity | <85%, non-dewfall |
| Air | clean,non-corrosiveness gas |
| Operation system | Windows 2000,Windows XP,win7 32bit |
| Voltage | 100-240VAC,5A |
| Frequency | 50/60HZ |
| Engraving Material | Crystal glass etc |
Warranty
One year from the date the machine arrives the destination Except consumable part of the lamp and damage artificially. The seller is responsible for offer free fittings in the warranty period (the buyer has to send the damaged fitting to seller.)
The artificial damage in the warranty period and damage after warranty period, the seller offers paid service. If the customer needs the engineer to supply the service oversea, all the expends will be paid by the customer.
