Double Head Industrial Laser Machine , Low Cost Texturing Laser CNC Machine
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wavelenth | 1070 Nm | Output Power | 20 - 500w |
|---|---|---|---|
| Pulse | Continous | Max Pulse Width | 10 Us |
| Roll Diameter | 200 - 650 Mm | Frequency | 5-100 KHZ |
| High Light | Yag Laser Machine,CNC Laser Machine |
||
Product Description
Double head laser texturing machine for roller surface roughening Imported Fiber Laser
Overview
The system equip with international famous brand fiber laser, control system and the domestic well-known brand of CNC roll machine.Can realize roll roughen the processing laser chaos, make the roll surface
Disordered pits, meet the demand of a variety of surface topography.
Alternative to conventional shot peening roughen, edm roughen, other laser roughen orderly.Laser disordered roughen technology for the world first Independent research and development, and has a number of technology patents.
At present, the system can be based on laser and roughen head number, single head and double head, according to the demand of customers choose.
Features
1. The system integration higher and higher control precision and stability is more reliable;
2. The equipment operation is simple, efficient;
3. The equipment operation cost is low;
4. High processing quality, energy saving;
5. Laser roughen processing good uniformity, high repeatability, morphology, no pollution, low energy consumption, low noise, is a new type of roll roughen technology.Alternative to conventional shot peening roughen, edm roughen, other laser orderly Roughen.
6. Lifetime is more than 100,000 hours without failure.
7. Texturing process can be set according to the requirements set.
8. Roll surface roughness range of 0.5 ~ 15.0μm.

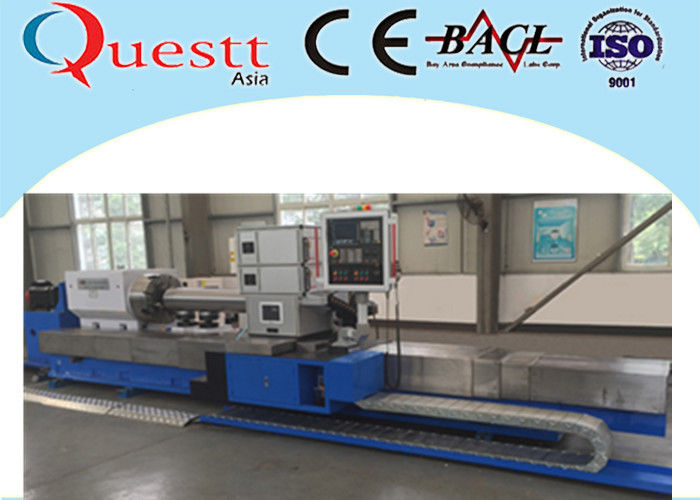

Machine overview
Specification
| Model | QA-TE500F |
| Laser type | Imported Fiber laser |
| Output laser power | 20-500W |
| Laser frequency | 5-100KHZ |
| CNC system | Siemens or others |
| Roller diameter | 200-650mm |
| Working length | 0-5.3m |
| Texturing index | Ra=0.5-15um |
| The axial line density | 3-100 points/mm |
| The radial line density | adjustable |
| Small hole diameter | 50-90um |
| Small hole convex platform hardness | HV>800 |
| Small hole convex platform height | 2-25um |
Application
Areas of application:
Steel, aluminum, titanium plate, etc.
Typical application:
Cold roll roughen processing, meet the temper mill, light machine, rolling mill, rolling mill roll after roughen the demand of various kinds of work roll.
Working condition
FAQ
1 Q: What is the warranty of the Laser texturing Machine?
A: The warranty is 2 years, but we offer whole life after-sale service.
2 Q: What is your payment terms?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .
4 Q: How is the quality of the machine?
A: Germany high technoloy with good quality.
5 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
CE Certificate:
