Automatic Optical Fiber Laser Marking Machine For Saw Blade Etching , Jig Customized
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Power | 10W / 20W / 30W / 50W | Laser Type | Fiber Laser |
|---|---|---|---|
| Special Device | Conveyor Device | Marking Area | Optional |
| Conveyor Length | As Demand | Jig | Customize |
| High Light | laser marking equipment,desktop laser marking machine |
||
Product Description

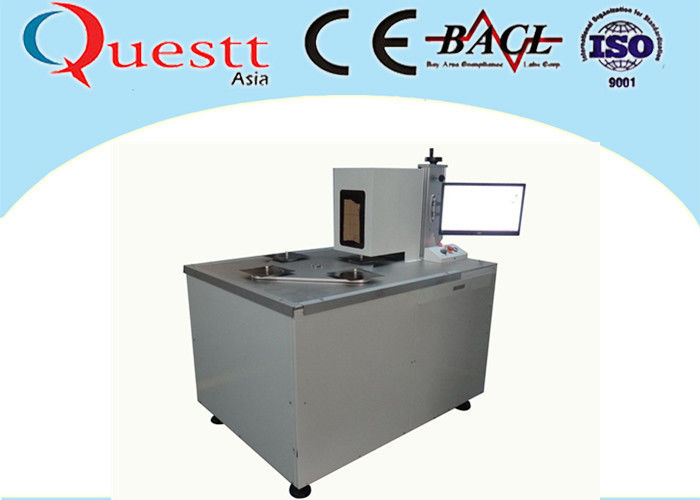

Automatic Fiber Laser Marking Machine With Automatic rotate table for Saw blade etching
Machine system description
Quantum- FL30R4 Fiber Laser Marking machine equip with a special roate working table, after finish marking on one piece of saw blade, it will rotate automaticlly to the next one for marking. Much more convenient and efficient.
It can use TIF fonts directly. The ability to run constantly 24/7 makes this machine meet the demand of massive on-line and off-line industrialized production.
This machine system is especially design for Saw blades.
Laser marking equipment features
1 High quality laser beam
2 Low running cost
3 High precision
4 Easy to install and operate
5 Excellent stability
6 Maintenance free
7 Completely sealed optical system
Data sheet
| Product Specifications | |
| Product | Quantum-FL30R4 |
| Purpose | Marking / engraving |
| Laser | |
| Laser Wavelength | 1000-1100nm |
| Laser Type | Fiber Laser |
| Laser Output Power | 30W |
| typical Laser Life Span | 100,000hrs |
| Modulation frequency | 20-100kHz |
| Max. Working Speed | 7000mm/s |
| Galvanometer | Yes |
| Lens | F-Theta Lens |
| Conveyor | |
| Moving | automatic |
| Length | as demands |
| Jig | customize as special needs |
| Working Area |
|
| Beam Diameter/Quality | M2<1.2 |
| Working Area | 70x70mm , 110x110mm, 160x160mm, 175x175mm (standard) ,220x220mm |
| Repeatability | 0.01mm |
| Positioning accuracy | 0.01mm |
| Min Line Width | 0.01mm |
| Marking/Cutting Depth | 0.01-0.2mm (depending on material) |
| Control | |
| Cooling | Air cooling |
| No. Axis | 3 Axis (Manual) Z axis auto optional |
| Rotation | Optional(Automatic only) |
| Power supply | AC220V, 50/60Hz, 1kVA (110-120V Optional) |
| Controller | Computer with marking software |
| USB 2.0 Compatible | YES |
| File Types | PLT, DXF, AI, DST, BMP, JPG, TIF |
| Max. Operating Time | 24hrs (recommend 1hr cool-down period) |
| Physical Characteristics | |
| Dimensions | 2000*1200*1500mm |
| Weight (kg) | 260kg |
| Guarantee: | (see Ts&Cs on support page) |
| General Guarantee | 12 Months from date of arrival at destination |
| Laser Source | 2000hrs/3 months - LAMP PUMPED & CO2(Except Smart Series) |
| 20,000hrs/18 months - Smart Series | |
| 10,000hrs/12 months - Diode Pumped | |
| 100,000hrs/2 years - Fiber LASER |
|
Application
It can mark almost all kinds of materials. Metal and nonmetal.
Special design
This machine is specially design for saw blades, Automation system for production.
