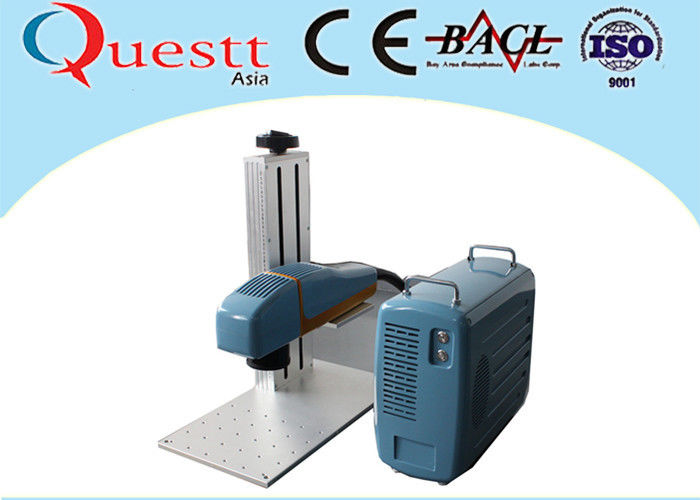

Small Optical Fiber Laser Marking Machine with 20 Watt Laptop Computer Controller
Small Optical Fiber Laser Marking Machine 20 Watt Laptop Computer Controller
Overview
Quantum-FL20S Optical Fiber Laser Marking Machine is developed and produced by us with the world newest laser technology.It belongs to the third generation system of laser technology .
This laser printer is a portable type, take small space in factory, and easy to move to any dest you prefer.
This laser marker can work with all kinds of characters, signs, graphs, images, bar codes, two dimensional codes, automatically increased serial numbers.
Adopting fiber laser output the laser ,then using ultra high-speed scanning galvanometer system to marking. The critical component use long lifetime stable device.
Advantage
1) Maintenance-free
2) High quality fiber laser source
3) High speed imported digital scanner
4) Red positioning guide system
5) Long lifetime up to 100,000 hours
6) Excellent beam quality, high stability
Specifications
| Product Specifications |
| Product |
Quantum-FL20S |
| Purpose |
Marking / engraving |
| Laser |
|
| Laser Wavelength |
1000-1100nm |
| Laser Type |
Fiber LASER |
| Laser Output Power |
20W |
| typical Laser Life Span |
100,000hrs |
| Modulation frequency |
20-100kHz |
| Max. Working Speed |
7000mm/s |
| Galvanometer |
Yes |
| Lens |
F-Theta Lens |
| Working Area |
|
| Beam Diameter/Quality |
M2<1.2 |
| Working Area |
70x70mm (standard), 110x110mm, 160x160mm, 175x175mm,220x220mm |
| Repeatability |
0.01mm |
| Positioning accuracy |
0.01mm |
| Min Line Width |
0.01mm |
| Marking/Cutting Depth |
0.01-0.2mm (depending on material) |
| Control |
|
| Cooling |
Air cooling |
| No. Axis |
3 Axis (Manual) |
| Rotation |
Optional(Automatic only) |
| Power supply |
AC220V, 50/60Hz, 1kVA (110-120V Optional) |
| Controller |
Computer with marking software |
| USB 2.0 Compatible |
YES |
| File Types |
PLT, DXF, AI, DST, BMP, JPG, TIF |
| Max. Operating Time |
24hrs (recommend 1hr cool-down period) |
| Physical Characteristics |
|
| Dimensions |
650*350*550mm |
| Weight (kg) |
60kg |
| Guarantee: |
(see Ts&Cs on support page) |
| General Guarantee |
12 Months from date of arrival at destination |
| Laser Source |
2000hrs/3 months - LAMP PUMPED & CO2(Except Smart Series) |
| |
20,000hrs/18 months - Smart Series |
| |
10,000hrs/12 months - Diode Pumped |
| |
100,000hrs/2 years - Fiber LASER
|
Application
Electrical Engineering and Electrical part and component
Jewellery (Ring, pedeant, bracelet), eyeglass, clocks and craft
Building materials, PVC pipe etc.
It can mark on almost all kinds of materials. Metal and non-metal.
Sample
Rotary device
